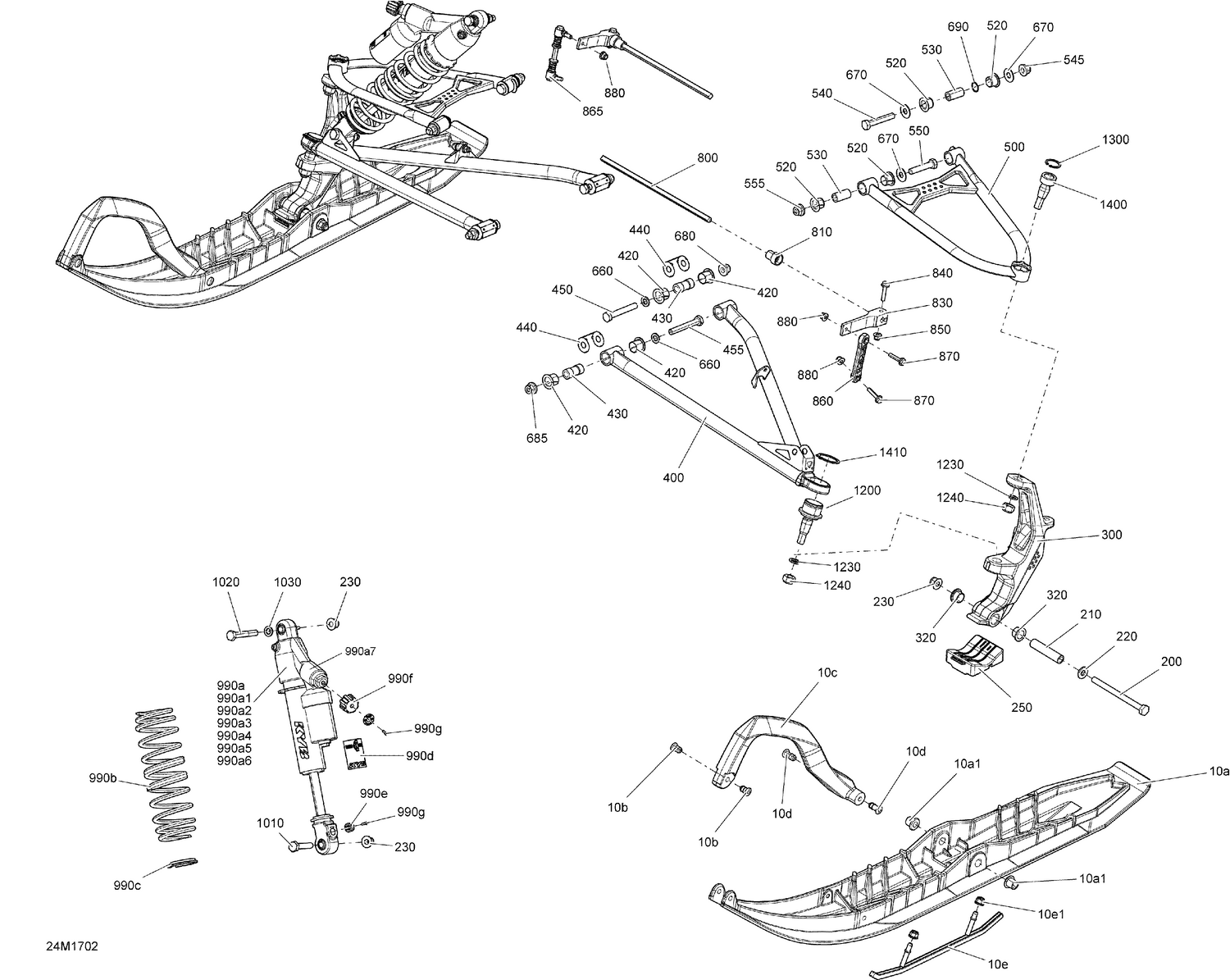

07- Front Suspension And Ski - All Models
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 505071781 | Ski Bushing |
| 10b | 505071812 | Retainer 17mm long |
| 10c | 505072976 | Black, Handle |
| 10d | 505072133 | Retainer 23mm Long |
| 10e1 | 233281414 | Hex. Flange Elastic Nut M8 |
| 200 | 250000703 | Hex. Screw M10 X 130 |
| 210 | 506133300 | Spacer |
| 220 | 503192496 | Washer |
| 230 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 250 | 505072594 | Ski Stopper |
| 300 | 505074076 | Blue LH Ski Leg |
| 300 | 505074077 | Blue RH Ski Leg |
| 320 | 505072690 | Leg Bushing |
| 400 | 505073583 | Black Epoxy, LH Lower Arm |
| 400 | 505073584 | Black Epoxy, RH Lower Arm |
| 420 | 505072208 | Bushing |
| 430 | 505072214 | Bushing |
| 440 | 505072634 | Wear Plate |
| 450 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 455 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 500 | 505073588 | Black Epoxy, LH Upper Arm |
| 500 | 505073589 | Black Epoxy, RH Upper Arm |
| 520 | 505072250 | Bushing |
| 530 | 505072143 | Sleeve |
| 540 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 545 | 250100165 | Hex. Flange Elastic Nut M10 |
| 550 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 555 | 250100165 | Hex. Flange Elastic Nut M10 |
| 660 | 503189564 | Washer |
| 670 | 505072392 | Washer |
| 680 | 250100165 | Hex. Flange Elastic Nut M10 |
| 685 | 250100165 | Hex. Flange Elastic Nut M10 |
| 690 | 505072448 | O-Ring |
| 800 | 505073609 | Stabilisator |
| 810 | 505072786 | Bushing |
| 830 | 505073176 | Stabilisator Lever |
| 840 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 850 | 233261466 | Hex. Flange Elastic Nut M6 |
| 860 | 505073172 | Double Ball Joint Link |
| 865 | 860200811 | Double Ball Joint Link |
| 870 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 880 | 233261466 | Hex. Flange Elastic Nut M6 |
| 990a1 | 415093807 | O-Ring |
| 990a2 | 415093806 | Piston Ring |
| 990a3 | 505070398 | Air Valve |
| 990a4 | 505070399 | Screw |
| 990a5 | 505070400 | O-Ring |
| 990a6 | 415093804 | O-Ring |
| 990a7 | 415130165 | Base Valve |
| 990b | 505072760 | Deep Black, Spring |
| 990c | 503194270 | Spring Stopper |
| 990d | 516005534 | Shock Adjustment Decal |
| 990e | 505072753 | Adjustment Knob |
| 990f | 503193033 | Shock Adjuster Knob |
| 990g | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1010 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 1020 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 1030 | 503189564 | Washer |
| 1200 | 505073636 | Ball Joint |
| 1230 | 503192491 | Washer |
| 1240 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 1300 | 293370070 | Circlip |
| 1400 | 505072913 | Upper Ball Joint |
| 1410 | 293370035 | Circlip |
| 6000 | 503192496 | Washer |
| 6001 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 6002 | 505072594 | Ski Stopper |
