Parts Catalog

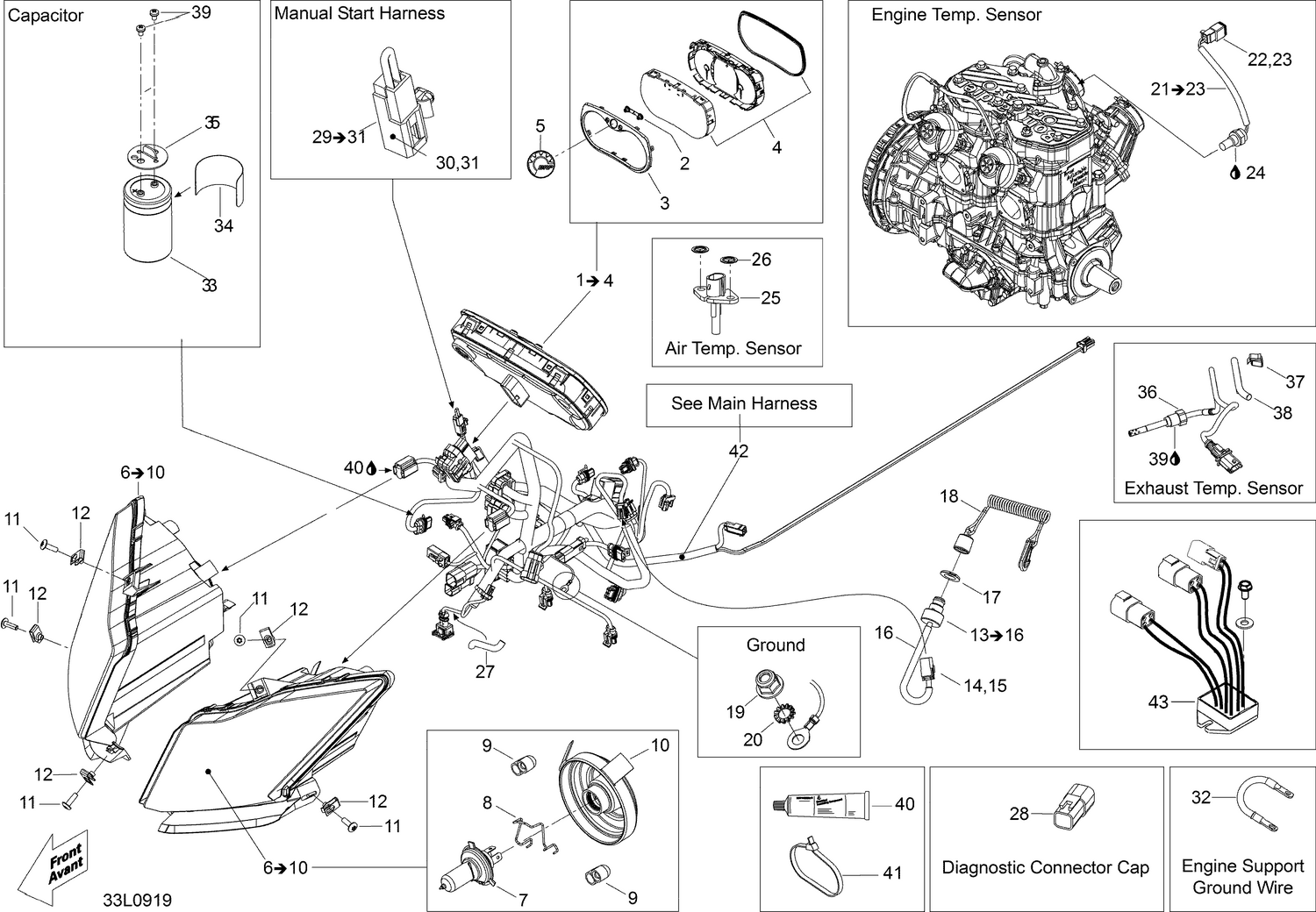

10- Electrical System

Parts (41)

Ref	Part Number	Description
2	415129355	Speedometer Button
3	415129370	Gauge Ring
4	415129349	Lens
5	516006224	BRP Logo 20MM x 2MM This part replaces 219902677.
7	515176274	Halogen Bulb, 60/55 W, 12 V ( H4 )
8	Not	Available As Spare Part - Bulb Holder
9	515176498	Cap
10	219800280	Rubber Cap Protector This part replaces 515176499.
11	250000722	Torx Screw M6 X 20 This part replaces 250000128.
12	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
14	515175232	Male Terminal
15	515175494	Male Housing, 3 Circuits
16	409902000	Tubing 12 mm
17	278002963	Safety Nut (DESS Switch) This part replaces 278000508.
18	515178284	DESS This part replaces 515176461.
19	233261414	Hex. Flange Elastic Nut M6 x 1.0
20	234461608	External Serrated Lock Washer 6 mm
22	515175670	Female Terminal Housing, 2 Circuits
23	278000632	Female Terminal
24	219704455	Was 293800018 Loctite 592, 50 ml
25	515176366	Air Temperature Sensor
26	389804300	Push Nut
27	219704425	Tubing 6 Mm 3000Mm Long
28	278002704	Diagnostic Connector This part replaces 278002148.
30	515175232	Male Terminal
31	710000667	Male Housing, 2 Circuits
32	515176358	Ground Wire
33	515176387	CAPACITOR - Call your local BRP dealership
34	516002976	CAPACITOR DECAL - Call your local BRP dealership
35	515177193	Cap This part replaces 515176351.
36	514054641	Temperature Sensor This part replaces 515176490.
37	414227300	Clip
38	219704425	Tubing 6 Mm 3000Mm Long
39	219704461	LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
39	515176542	SCREW 10-32 X 5/16 - Call your local BRP dealership
40	219704453	Was 293550004 Dielectric Grease, 150 g
41	293750001	Tie Wrap 94 mm
41	293750002	Tie Wrap 142 mm
41	293750008	Tie Wrap 368 mm
41	414115200	Tie-Rap 180 mm
42	515176657	WIRING HARNESS MAIN - Call your local BRP dealership
