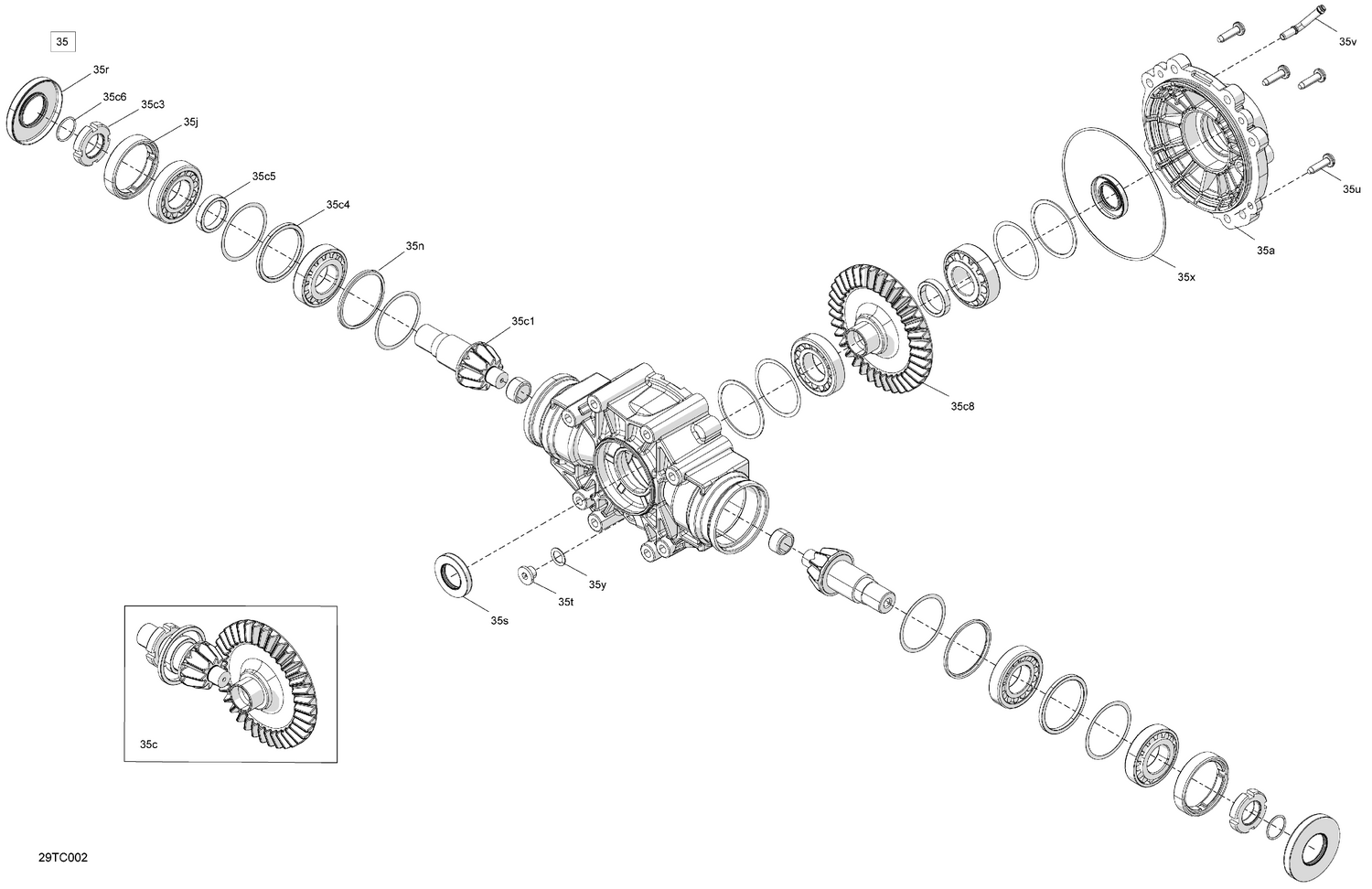

04- Drive - Middle Drive Unit
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 35a | 705503089 | Case Cover |
| 35c1 | 705502809 | Geart 10 Teeth |
| 35c3 | 705501550 | Nut |
| 35c4 | 705501552 | Differential Shim |
| 35c5 | 705501553 | Differential Shim |
| 35c6 | 705501554 | O-Ring |
| 35c8 | 705502810 | Gear 36 Tooth |
| 35j | 705501549 | Nut |
| 35n | 703500835 | Differential Shim Kit |
| 35r | 705501557 | Oil Seal |
| 35s | 705501556 | Oil Seal |
| 35t | 705500504 | Fill Level Plug |
| 35u | 705502063 | Screw |
| 35v | 705501584 | Breather Tube |
| 35x | 705501711 | O-Ring |
