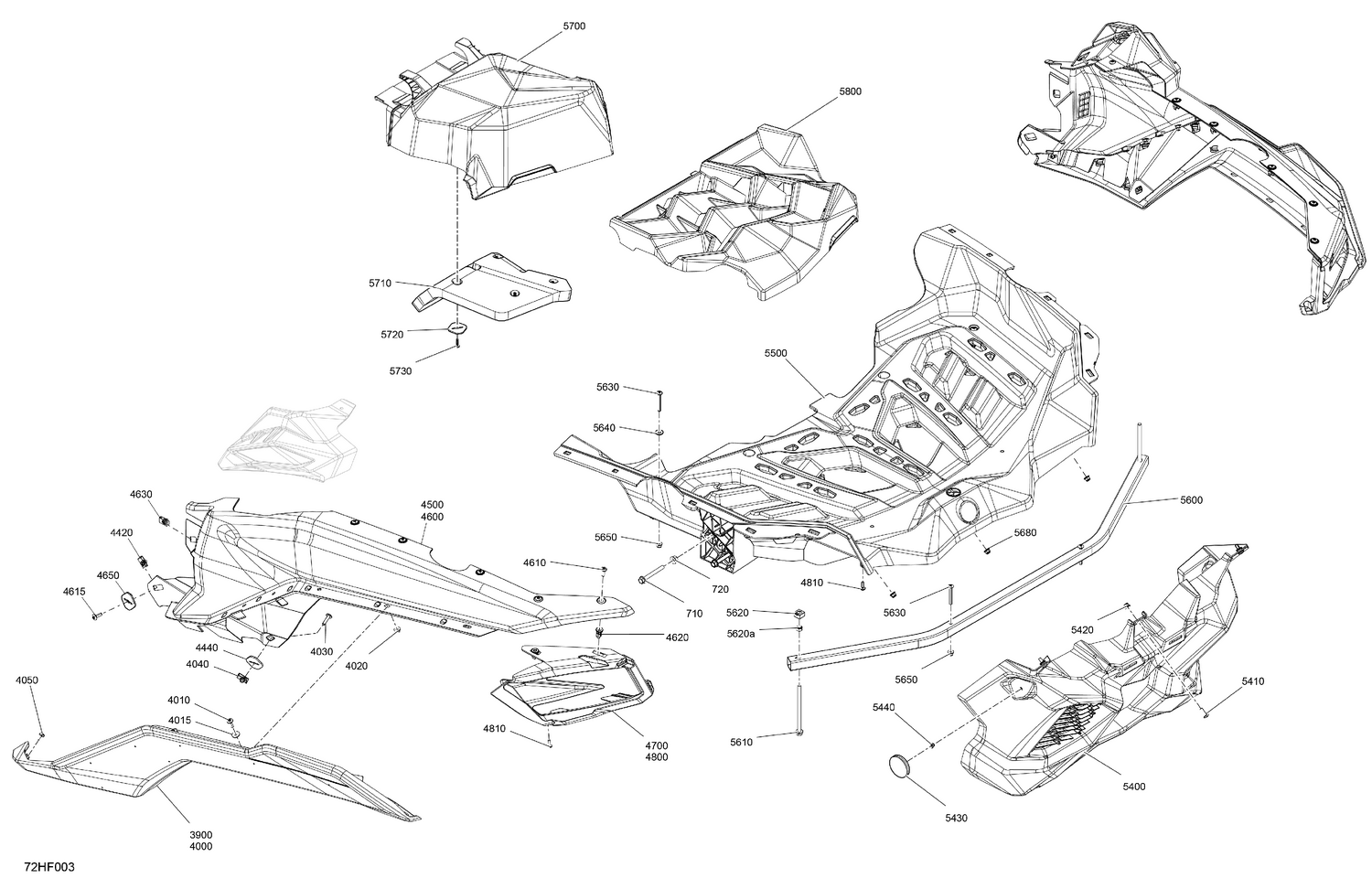

07- Body - Rear Section
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 710 | 207687044 | Hex. Flange Screw M8 X 70 |
| 720 | 233081416 | Hex. Flange Nut M8 |
| 3900 | 705009511 | LH Rear Fender Deflector |
| 4000 | 705017543 | RH Rear Fender Deflector This part replaces 705009512. |
| 4010 | 250000712 | Torx Screw M6 X 20 |
| 4015 | 234062670 | Stainless Steel Flat Washer |
| 4020 | 233261494 | Hex. Flange Elastic Nut M6 |
| 4030 | 250000807 | Torx Truss Screw M6 X 25 |
| 4040 | 250100198 | Panel Nut M6 X 1.0 |
| 4050 | 250000720 | Torx Screw K50 X 16 |
| 4420 | 250100198 | Panel Nut M6 X 1.0 |
| 4440 | 705003841 | Support Plate |
| 4500 | 705019626 | Dusty Navy, LH Rear Fender |
| 4600 | 705019627 | Dusty Navy, RH Rear Fender |
| 4610 | 250000712 | Torx Screw M6 X 20 |
| 4615 | 250000722 | Torx Screw M6 X 20 |
| 4620 | 705016606 | Insert |
| 4630 | 250100198 | Panel Nut M6 X 1.0 |
| 4650 | 705003841 | Support Plate |
| 4700 | 705010686 | LH Rear Lateral Cover |
| 4800 | 705010687 | RH Rear Lateral Cover |
| 4810 | 250000720 | Torx Screw K50 X 16 |
| 5400 | 705017558 | Rear Fairing This part replaces 705010001. |
| 5410 | 250000722 | Torx Screw M6 X 20 |
| 5420 | 250100198 | Panel Nut M6 X 1.0 |
| 5430 | 705016982 | Red, Reflector |
| 5440 | 233251494 | Elastic Flange Nut M5 |
| 5500 | 715011265 | Luggage Rack Ass'y |
| 5600 | 705020267 | Tube Luggage Rack |
| 5610 | 230683034 | Hex. Flange Screw M8 X 130 |
| 5620a | 232581200 | Hex. Elastic Nut M8 Brass |
| 5630 | 250000749 | Torx Truss Screw M6 X 50 |
| 5640 | 234062670 | Stainless Steel Flat Washer |
| 5650 | 233261494 | Hex. Flange Elastic Nut M6 |
| 5680 | 250100198 | Panel Nut M6 X 1.0 |
| 5700 | 705012700 | Air Inlet Cover |
| 5710 | 705011293 | Foam Air Intake Cover |
| 5720 | 705003841 | Support Plate |
| 5730 | 250000760 | Torx Screw Truss Head K50X20 T20 |
