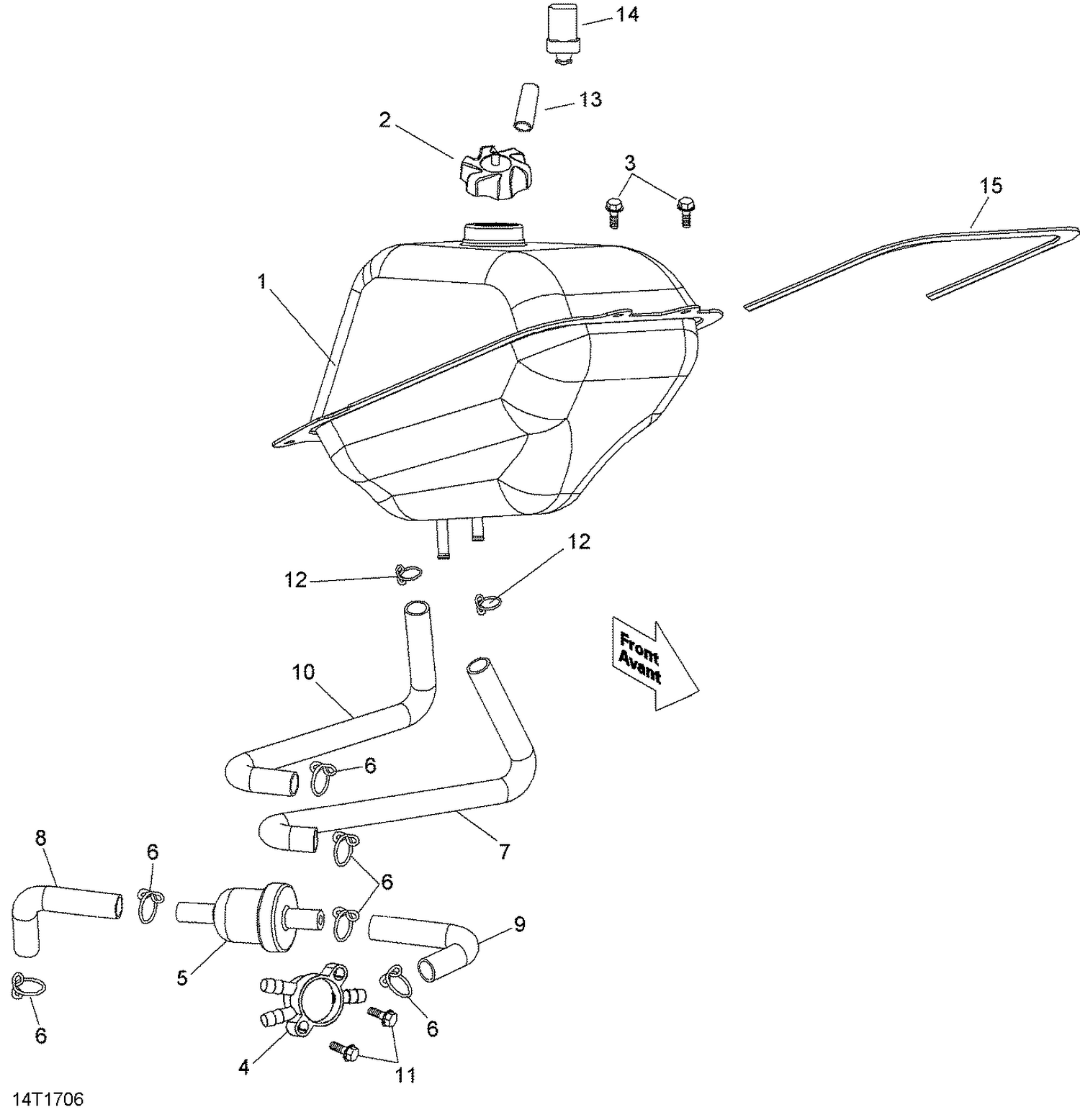

02- Fuel Tank
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V17500DGF070LL | Fuel Tank |
| 2 | V17620DGF080LL | Fuel Tank Cap |
| 3 | 207661244 | Hex. Flange Screw M6 X 12 |
| 5 | V16910MAA000 | Fuel Filter |
| 6 | V17209DGF020 | Hose Clamp |
| 7 | V17684DGF030 | Fuel Tube |
| 8 | V17682DGF030 | FUEL TUBE A - Call your local BRP dealership |
| 9 | V17683DGF010 | Fuel Tube |
| 10 | V17685DGF020 | Fuel Tube |
| 11 | V935000502201 | Hex. Flange Bolt |
| 12 | V17210DGF010 | Hose Clamp |
| 13 | V17686DGF040LL | Fuel Vent Tube |
| 14 | V43351DGF010LL | Vent Pipe |
