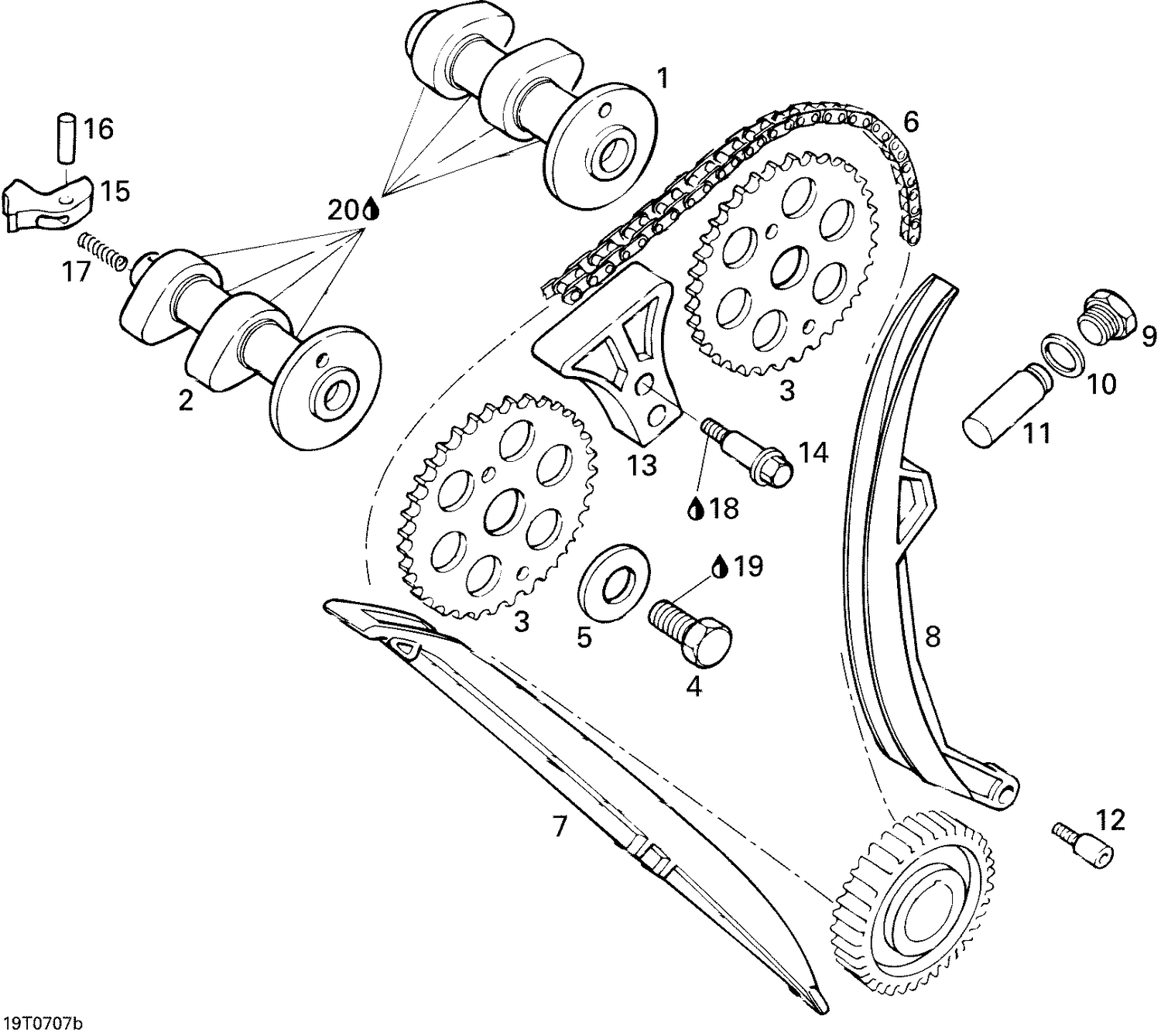

| Ref | Part Number | Description |
|---|
| 1 |
420220190 |
Camshaft, Inlet |
| 2 |
420220200 |
CAMSHAFT, EXHAUST - Call your local BRP dealership |
| 3 |
420634280 |
TIMING GEAR, 34 TEETH - Call your local BRP dealership |
| 4 |
207102044 |
HEX. SCREW M10 X 20 - Call your local BRP dealership |
| 5 |
420627040 |
WASHER - Call your local BRP dealership |
| 6 |
420297891 |
CHAIN-TIMING - Call your local BRP dealership This part replaces 420297890. |
| 7 |
420236230 |
Chain Guide |
| 8 |
420236221 |
CHAIN TENSION GUIDE - Call your local BRP dealership |
| 9 |
420552277 |
HEX. SCREW M18 X 10 - Call your local BRP dealership |
| 10 |
420552280 |
Crush Washer |
| 11 |
415129408 |
Chain Tensioner This part replaces 420236252. |
| 12 |
420240943 |
Bearing Screw M6 This part replaces 420240942. |
| 13 |
420236240 |
Chain Guide Bow |
| 14 |
420240960 |
DISTANCE SCREW M6 X 16 - Call your local BRP dealership |
| 15 |
420231045 |
CENTRIFUGAL WEIGHT - Call your local BRP dealership |
| 16 |
420232910 |
Peg |
| 17 |
420239920 |
SPRING - Call your local BRP dealership |
| 18 |
293800060 |
Loctite 243, 10 ml |
| 19 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
