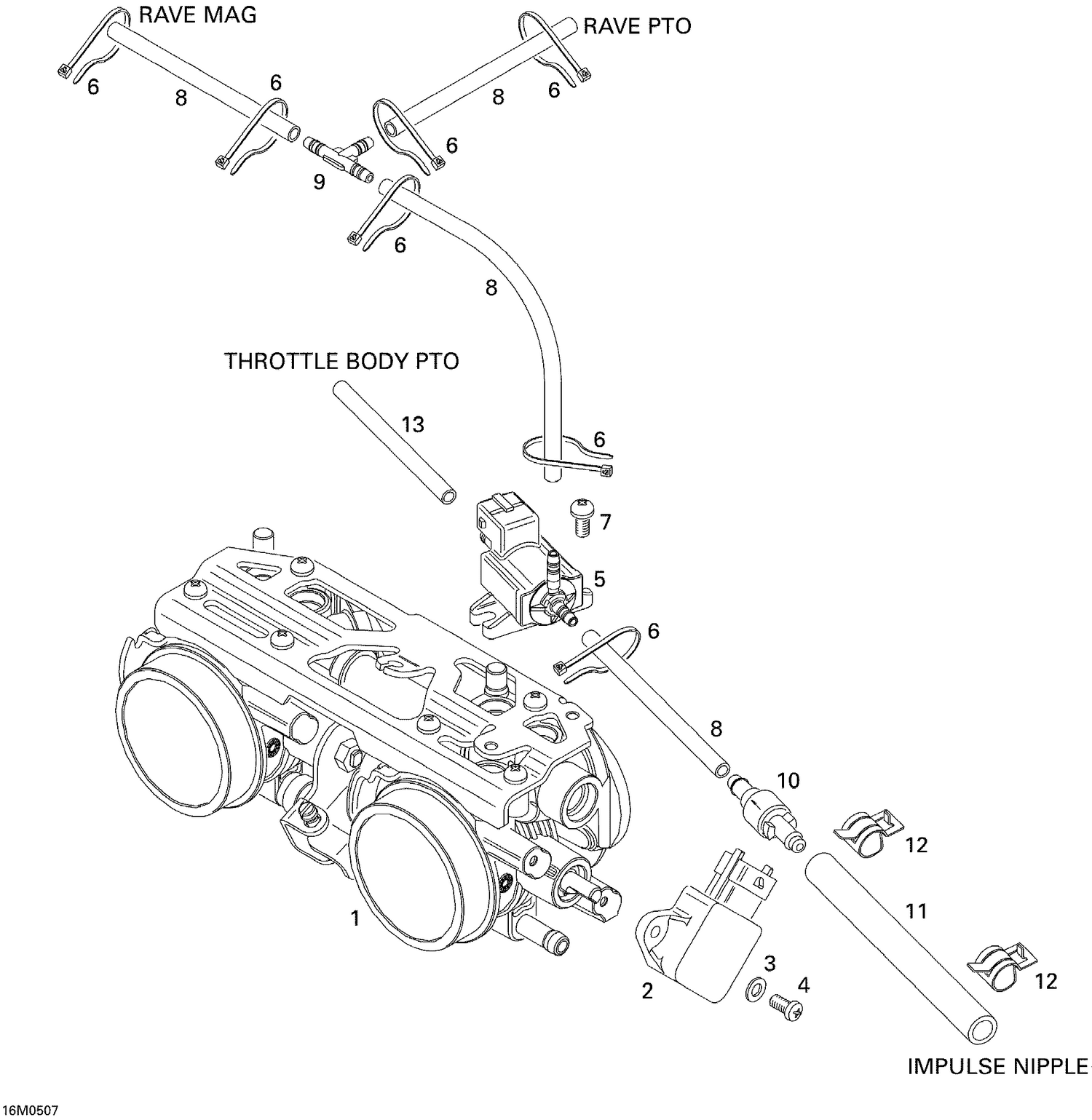

| Ref | Part Number | Description |
|---|
| 1 |
420889195 |
Throttle Body |
| 2 |
420866120 |
Position Sensor This part replaces 270000251. |
| 3 |
234041600 |
Flat Washer 4 mm, Stainless |
| 4 |
208641660 |
Phillips Screw M4 X 16 |
| 5 |
420664630 |
Solenoïd Valve |
| 6 |
293750001 |
Tie Wrap 94 mm This part replaces 420866718. |
| 7 |
420940011 |
SCREW M5 X 10 - Call your local BRP dealership |
| 8 |
420660571 |
High Pressure Air Hose, 180 mm |
| 9 |
293710068 |
T-Fitting |
| 10 |
275500479 |
CHECK VALVE - Call your local BRP dealership |
| 11 |
420660562 |
PRESSURE LINE - Call your local BRP dealership |
| 12 |
293650214 |
Norma Spring Clamp This part replaces 420853510. |
