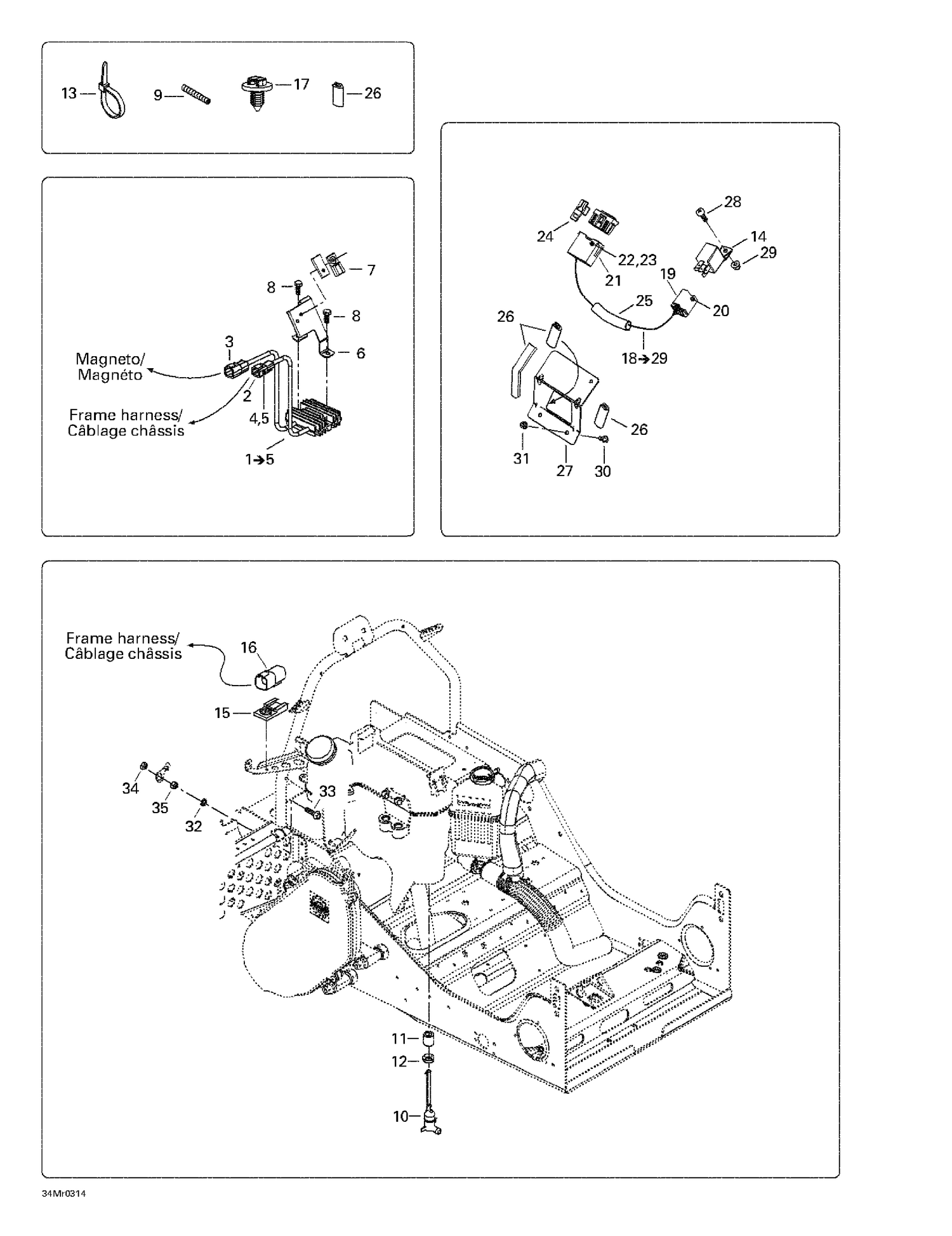

| Ref | Part Number | Description |
|---|
| 2 |
278001674 |
Mâle Terminal Housing, 2 Circuits |
| 3 |
Not |
Available As Spare Part - Mƒle terminal housing (4 circuits) |
| 4 |
515175568 |
Male Terminal |
| 5 |
278001671 |
Female Lock, 2 Circuits |
| 6 |
515175842 |
Housing Support |
| 7 |
270000141 |
Clip |
| 8 |
290841543 |
Taptite Screw |
| 9 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 10 |
414681800 |
LEVEL SWITCH - Call your local BRP dealership |
| 11 |
414681900 |
Float |
| 12 |
414681901 |
Contact Plate |
| 13 |
293750002 |
Tie Wrap 142 mm |
| 14 |
710010053 |
Relay This part replaces 410113200. |
| 15 |
270000141 |
Clip |
| 16 |
515175668 |
Male Terminal Housing, 6 Circuits |
| 17 |
293730040 |
Mount Dart This part replaces 293730018. |
| 19 |
409209900 |
Female Housing, 5 Circuits |
| 20 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 21 |
515175720 |
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 22 |
515175232 |
Male Terminal |
| 23 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 24 |
515175283 |
Housing Support |
| 25 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 26 |
219704353 |
Was 271000110 Protection Trim |
| 27 |
515175907 |
Fuse Holder |
| 28 |
208651241 |
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership |
| 29 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 30 |
207151444 |
Hex. Screw M5 X 14 |
| 31 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 32 |
250200041 |
Lock Washer Serrated M6 This part replaces 250200000. |
| 33 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 34 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
