| Ref | Part Number | Description |
|---|
| 4 |
0302288 |
BOLT |
| 5 |
0300646 |
VIS, ancrage |
| 12 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 13 |
0323681 |
CYLINDER HEAD |
| 14 |
0318609 |
GASKET, Cover |
| 15 |
0317218 |
COVER, Cylinder head |
| 16 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 18 |
0308728 |
SCREW This part replaces 0322098. |
| 19 |
0328456 |
CLAMP |
| 20 |
0307267 |
SCREW |
| 21 |
0384771 |
SPARK PLUG, Ch ul-77v |
| 21 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 21 |
0387239 |
SPARK PLUG, CH 1UL-77V, 140 |
| 21 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 22 |
0322610 |
SCREW, Cylinder head |
| 23 |
0317245 |
SPRING, Control valve |
| 24 |
0317219 |
COVER, Thermostat & valves |
| 25 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 26 |
0325857 |
SCREW, Fuel connector |
| 27 |
0332108 |
GASKET, Thermostat cover |
| 28 |
0331917 |
GASKET, Plate to crankcase |
| 29 |
0324555 |
PLATE, Exhaust manifold |
| 30 |
0328731 |
VIS, câble de verrouillage |
| 31 |
0390041 |
COVER, Exhaust manifold |
| 33 |
0202026 |
LOCK WASHER, Stud |
| 34 |
0323691 |
MANIFOLD, Exhaust |
| 35 |
0321601 |
SCREW, Exhaust cover |
| 36 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 37 |
0396987 |
THERMOSTAT & SEAL ASSY. |
| 38 |
0332130 |
SEAL ASSY. |
| 41 |
0306337 |
SCREW, Adjustment This part replaces 0553142. |
| 42 |
0314021 |
BUMBER, Exhaust manifold |
| 43 |
0316993 |
CLAMP, Batter cable |
| 44 |
0330151 |
CLAMP, Harness to oil tank boss |
| 45 |
0325563 |
CLAMP, Connector, timer to power pack |
| 46 |
0330967 |
BUSHING, Shift lever |
| 47 |
0318366 |
BRACKET, Fuel pump |
| 48 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 49 |
0330777 |
BOLT, Double ended |
| 50 |
0306012 |
BOW WASHER |
| 52 |
0327589 |
PIN, Shift lever to shift rod |
| 54 |
0313413 |
GASKET, Cylinder head |
| 55 |
0303398 |
VIS, support This part replaces 0302030. |
| 56 |
0376349 |
FIL, masse |
| 57 |
0316132 |
GORMMET, Valve |
| 59 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 60 |
0318951 |
BUSHING, Shift lever to c'case |
| 62 |
0331916 |
GASKET, Exhaust manifold |
| 64 |
0315900 |
SCREW, Cable clamp |
| 65 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 67 |
0327710 |
HOSE, Indicator |
| 68 |
0326642 |
LEVER, Shift rod |
| 69 |
0329229 |
SHIFT LEVER |
| 70 |
0330814 |
BRACKET, Adjustment |
| 71 |
0397958 |
VALVE, Pressure relief This part replaces 0315625. |
| 72 |
0333962 |
LIFT BRACKET This part replaces 0315930. |
| 72 |
0394007 |
LIFT BRACKET |
| 73 |
0329230 |
SHIFT DETENT |
| 76 |
0329223 |
BRACKET, Detent spring |
| 77 |
0308728 |
SCREW |
| 78 |
0330913 |
RESSORT, dispositif de blocage |
| 79 |
0330212 |
RESSORT, appui, dispositif de blocage commande sens de marche |
| 80 |
SEAL, |
Crankcase |
| 0395367 |
0395367 |

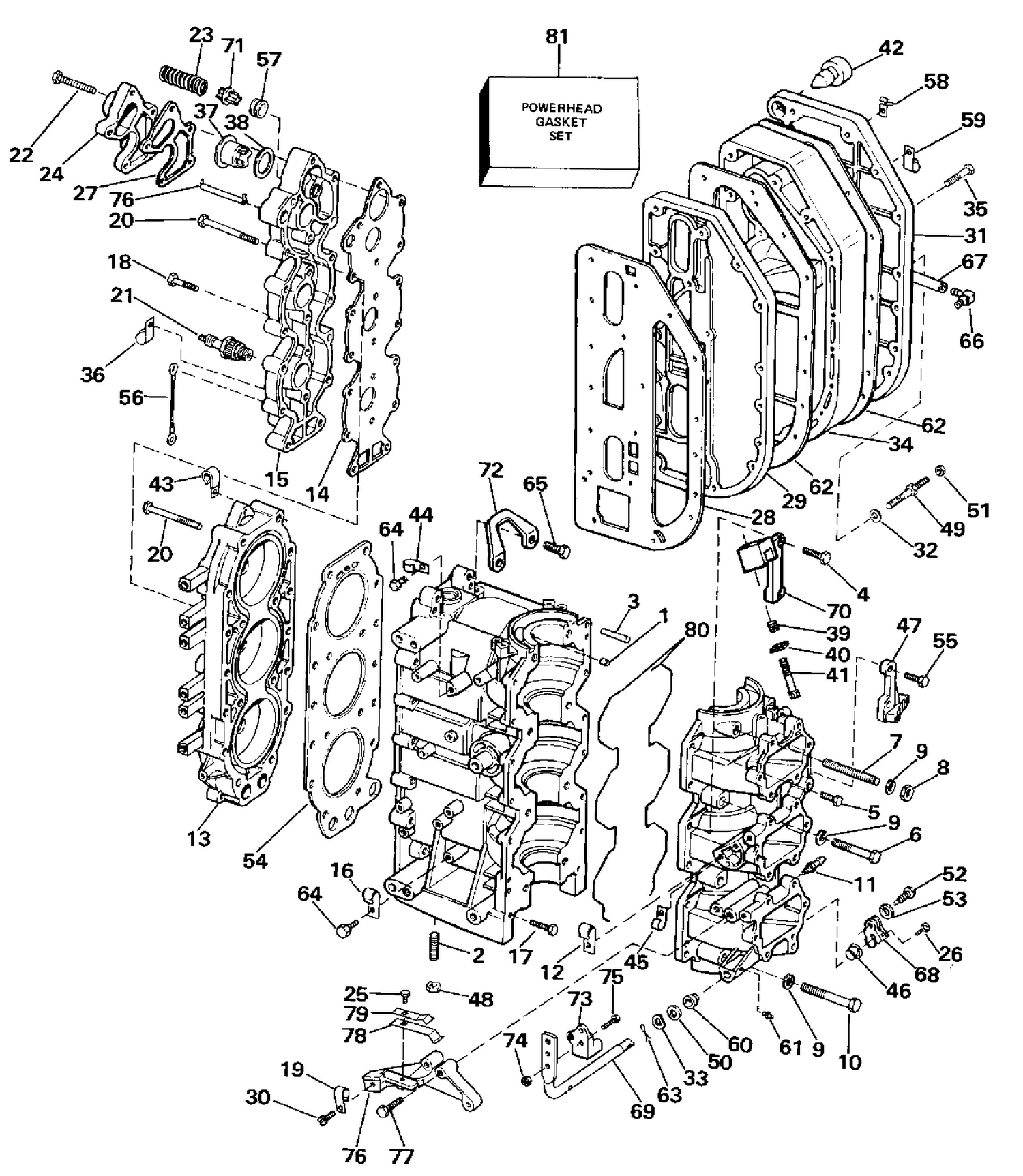

CYLINDER & CRANKCASE ASSY. |
