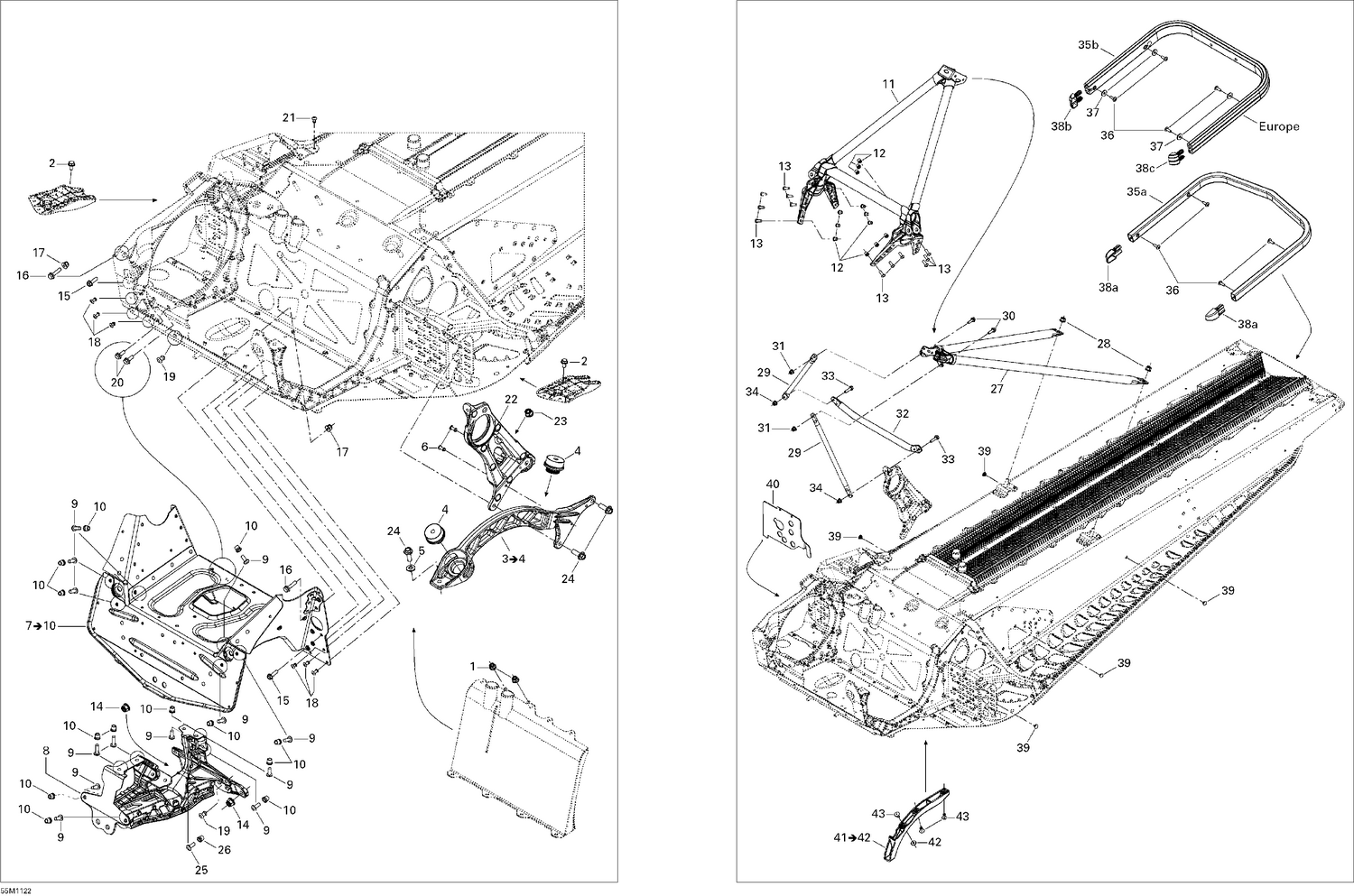

| Ref | Part Number | Description |
|---|
| 1 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 2 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 4 |
512061516 |
Vibration Damper This part replaces 512060295. |
| 5 |
234281474 |
Conical Spring Washer M8 |
| 6 |
390407200 |
Pop Rivet 3/16” |
| 8 |
518327487 |
Front Suspension Support This part replaces 518325925. |
| 9 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
518326970 |
Front Member This part replaces 518326555. |
| 12 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 13 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 14 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 15 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 16 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 19 |
293150182 |
Monobolt Rivet 6.4 |
| 20 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 21 |
390909100 |
Avex Rivet |
| 22 |
518327460 |
Driven Pulley Support This part replaces 518326192. |
| 23 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 24 |
250000351 |
Hex. Flange Screw M8 X 25, Nylon |
| 25 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 27 |
518326559 |
Rear Member |
| 28 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 29 |
518325114 |
Upper Lateral Column Support |
| 30 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 31 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 32 |
518326657 |
Center Column Support |
| 33 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 34 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 35 |
518325481 |
Black Rear Bumper 137" |
| 35a |
518324980 |
Clear Rear Bumper |
| 35b |
XXX |
Not Available As Spare Parts |
| 36 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 37 |
520000840 |
BLACK CAP - Call your local BRP dealership |
| 37 |
XXX |
Not Available As Spare Parts |
| 38 |
293730047 |
Black, Dart 8 mm |
| 38a |
520000567 |
Full Moon Cap |
| 38b |
XXX |
Not Available As Spare Parts |
| 38c |
XXX |
Not Available As Spare Parts |
| 39 |
293730041 |
Full Moon Dart 8 mm |
| 39 |
293730053 |
Black Dart 5 mm |
| 40 |
518325418 |
HEAT SHIELD - Call your local BRP dealership |
| 42 |
517124300 |
Washer |
| 43 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
