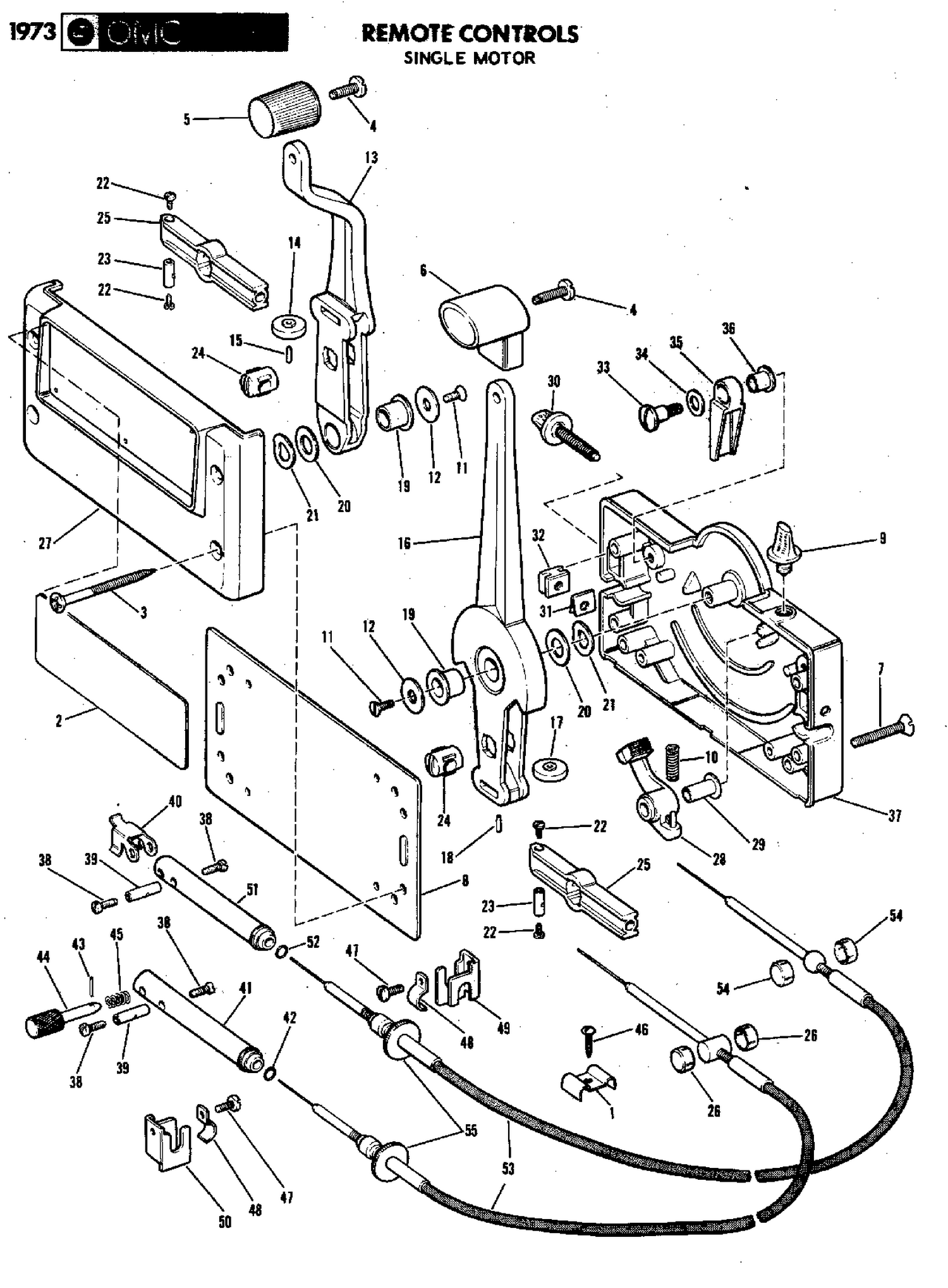

| Ref | Part Number | Description |
|---|
| 1 |
0308078 |
CLAMP |
| 4 |
0308038 |
VIS, butée de ralenti |
| 13 |
0378721 |
SHIFT LEVER, Roller & pin assembly |
| 16 |
0378720 |
THROTTLE LEVER, Pin & roller assembly |
| 22 |
0173506 |
SCREW This part replaces 0308037. |
| 23 |
0173506 |
SCREW This part replaces 0308036. |
| 24 |
0308035 |
INSERT, Casing guide |
| 25 |
0308034 |
GUIDE, Casing |
| 30 |
3058056 |
SCREW |
| 34 |
0308052 |
RONDELLE, verrouillage de relevage, douille d'arbre |
| 38 |
0173506 |
SCREW This part replaces 0303285. |
| 39 |
0173506 |
SCREW This part replaces 0303222. |
| 42 |
0307063 |
O RING |
| 52 |
0307063 |
O RING |
| 54 |
0309724 |
ANCHOR BLOCK |
| 0381371 |
0173286 |
SINGLE REMOTE CONTROL This part replaces 0381371. |
| 0381444 |
0381444 |
CASING GUIDE |
