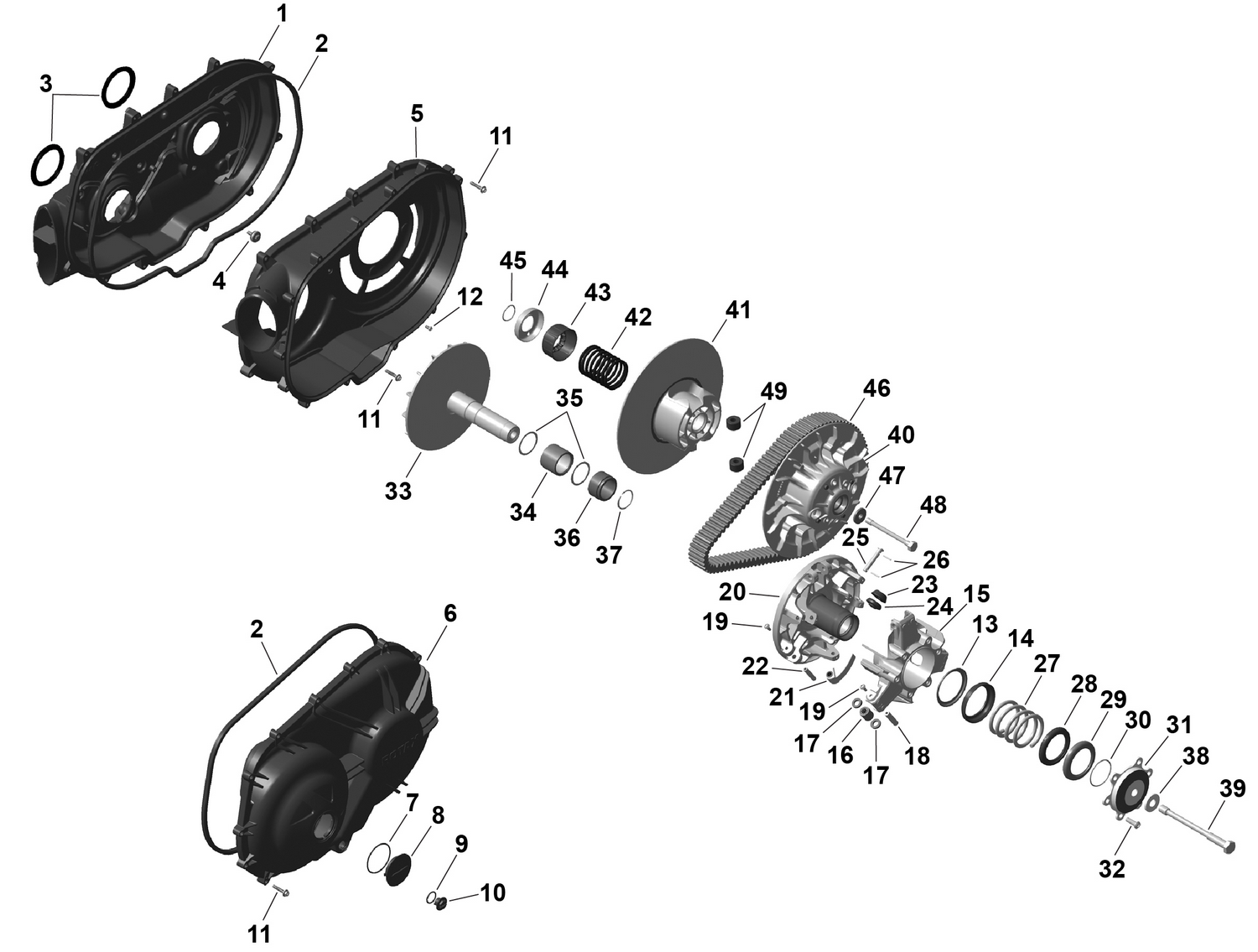

01- ROTAX - CVT
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420212701 | CVT Air Guide |
| 4 | 420440497 | Distance Screw M6 |
| 5 | 420212735 | Variator Air Cover |
| 8 | 420441826 | Bayonet Cap |
| 10 | 420441821 | Bayonet Cap Ass'y |
| 11 | 420441575 | Torx Screw 6X30 |
| 12 | 420640086 | Torx Screw M5 X 12 |
| 13 | 417224910 | Stopper Spring This part replaces 420427352. |
| 14 | 420427801 | Spring Support |
| 15 | 420280761 | Governor Cup Ass'y |
| 15 | 420686899 | P-Drive Pulley Ass'y |
| 16 | 420629239 | Pulley Roller Ass'y |
| 17 | 420626233 | Thrust Washer |
| 18 | 420233902 | Bearing Sleeve 10x41 |
| 19 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip This part replaces 420841081. |
| 21 | 420248730 | Roller Lever Ass'y This part replaces 420248729. |
| 22 | 417224694 | Pin Ramp This part replaces 420233904. |
| 24 | 420629222 | Ext Roller Pulley |
| 25 | 417224510 | Pin This part replaces 420233899. |
| 26 | 250700074 | Dowel 2.6x20.5 |
| 27 | 420638133 | Compression Spring, Drive Pulley |
| 28 | 420427809 | Spring Support |
| 29 | 420427354 | Seat Spring |
| 30 | 293370116 | Circlip |
| 31 | 420280275 | Governor Cup Torque Flange |
| 32 | 420841085 | Hex Screw M8 X 2 |
| 33 | 420280809 | Inner Half Ass'y |
| 34 | 420832351 | Needle Roller Bearing With Sleeves |
| 35 | 420427220 | Washer |
| 36 | 420660284 | Stop Sleeve |
| 37 | 420845741 | Retaining Ring 35 x 1.5 |
| 38 | 420245690 | Washer |
| 39 | 420841161 | Hexagonal Screw M14X 165 |
| 41 | 420280784 | Sliding Pulley Ass'y |
| 42 | 420238186 | Compression Spring |
| 43 | 420427323 | Spring Support |
| 44 | 420427332 | Holding Strip |
| 45 | 420245945 | Retaining Ring 32.8 |
| 46 | 422280225 | V-Belt This part replaces 420280225. |
| 47 | 420627695 | Thrust Washer |
| 48 | 420441485 | Hex. Screw M10 X 110 |
