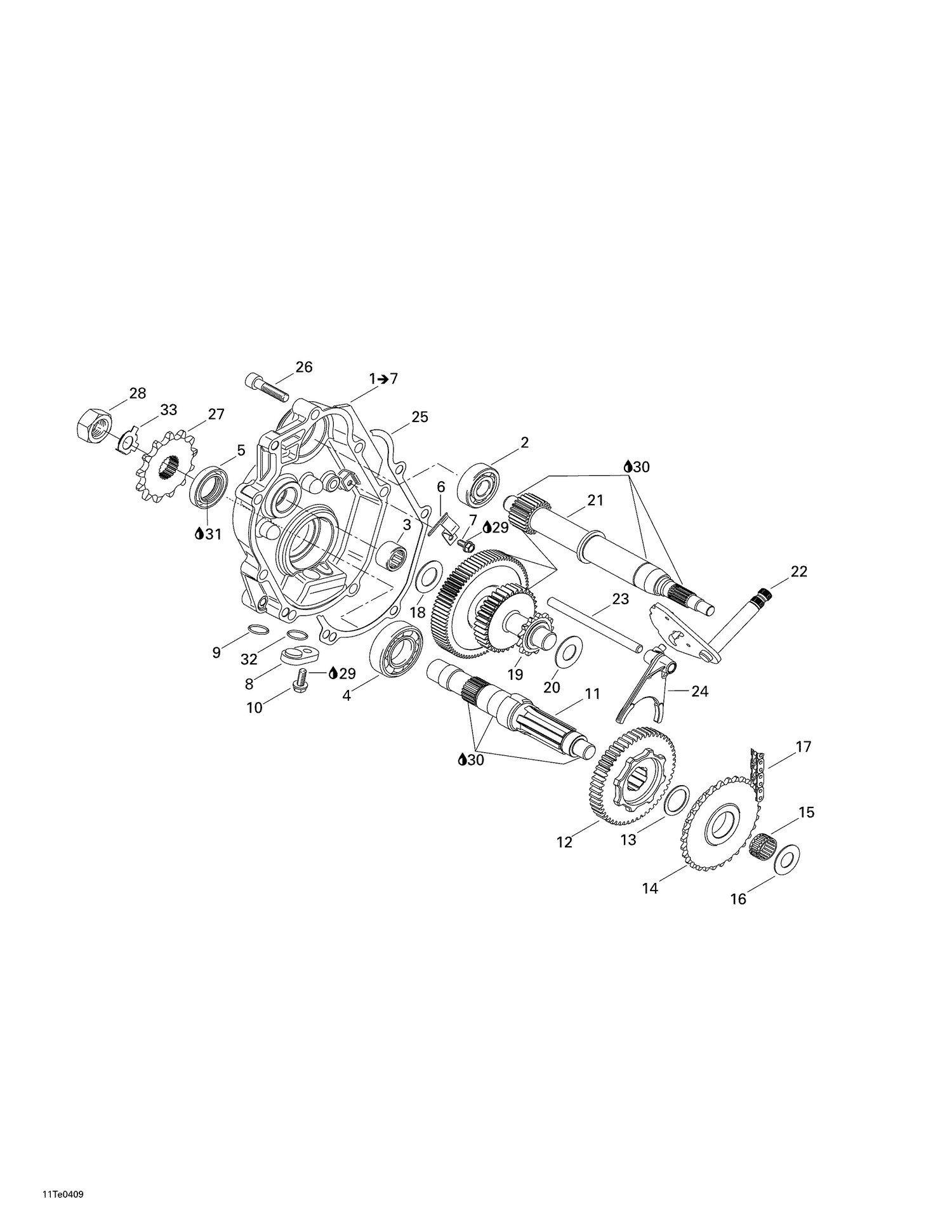

| Ref | Part Number | Description |
|---|
| 2 |
420232293 |
Bearing_Ball - Call your local BRP dealership |
| 3 |
420632960 |
Needle Bushing |
| 4 |
420232768 |
BALL BEARING - Call your local BRP dealership |
| 5 |
420230395 |
OIL SEAL - Call your local BRP dealership |
| 6 |
420238265 |
SPRING - Call your local BRP dealership |
| 7 |
420941935 |
Taptite Screw M5 x 12 |
| 8 |
420627805 |
COVER - Call your local BRP dealership |
| 9 |
420630600 |
O-RING - Call your local BRP dealership |
| 10 |
420240385 |
TAPTITE SCREW M6 X 12 - Call your local BRP dealership |
| 11 |
420220930 |
Driven Shaft |
| 12 |
420635250 |
SHIFT GEAR 51T - Call your local BRP dealership |
| 13 |
420927470 |
THRUST WASHER - Call your local BRP dealership |
| 14 |
420236550 |
SPROCKET 30T - Call your local BRP dealership |
| 15 |
420232520 |
NEEDLE BEARING - Call your local BRP dealership |
| 16 |
420927055 |
Thrust Washer |
| 17 |
420898070 |
Chain |
| 18 |
420627810 |
Thrust Washer |
| 19 |
420220945 |
Intermediate Shaft |
| 20 |
420227725 |
THRUST WASHER - Call your local BRP dealership |
| 21 |
420220920 |
DRIVE PULLEY SHAFT 24T - Call your local BRP dealership |
| 22 |
420220955 |
SHIFT SHAFT ASS?Y - Call your local BRP dealership |
| 23 |
420258780 |
GUIDE PIN - Call your local BRP dealership |
| 24 |
420257210 |
SHIFT FORK - Call your local BRP dealership |
| 25 |
420630141 |
GASKET - Call your local BRP dealership |
| 26 |
420840682 |
Allen Screw M8 X 40 This part replaces 420840681. |
| 27 |
420236980 |
SPROCKET, 13 TEETH - Call your local BRP dealership |
| 28 |
420242656 |
Ecrou Hex.M20 *Nut-Hex.M20 This part replaces 420242651. |
| 29 |
293800060 |
Loctite 243, 10 ml |
| 30 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 31 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 32 |
420430600 |
O’Ring |
