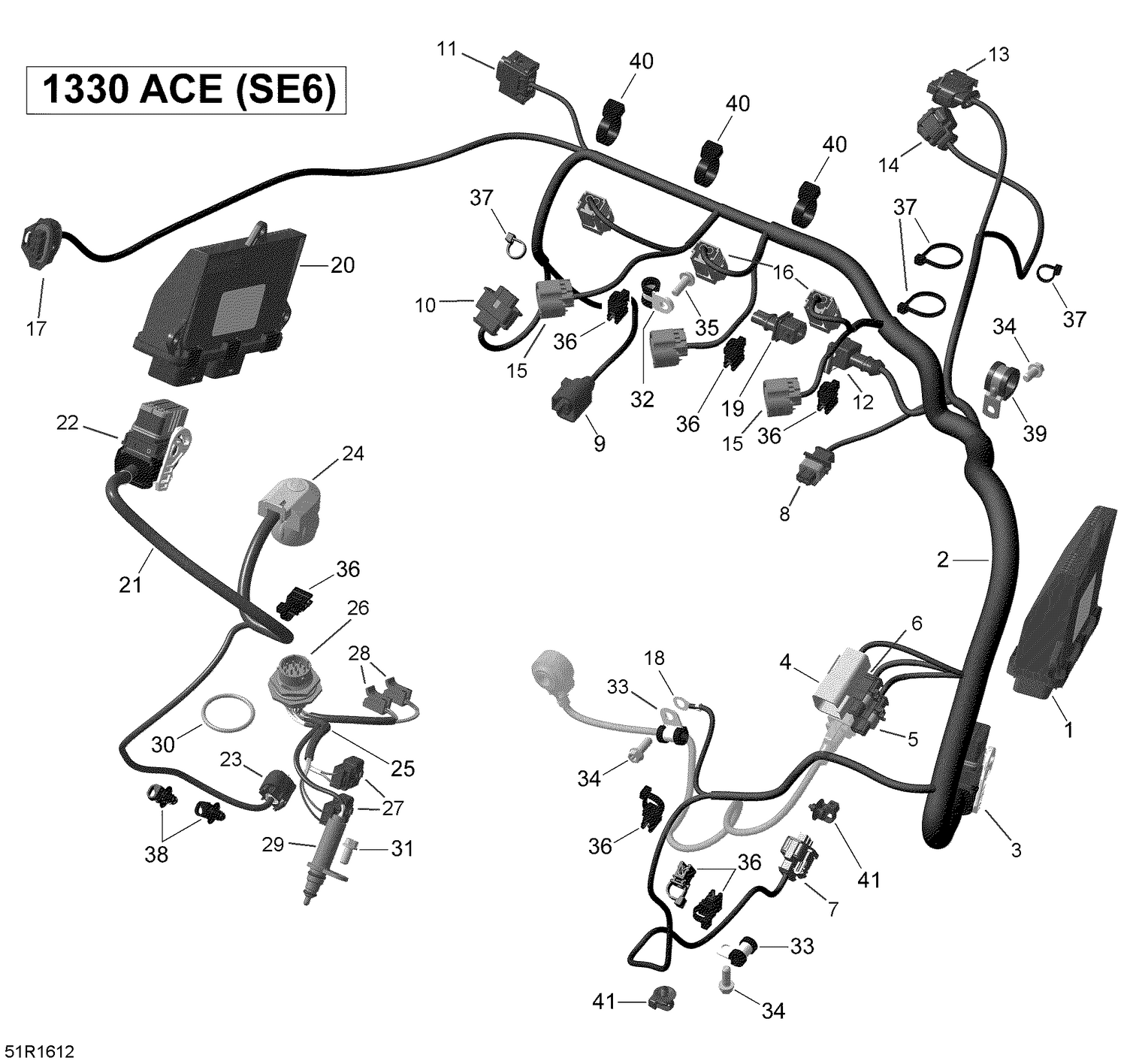

10- Engine Harness and Electronic Module - SE6

10- Engine Harness and Electronic Module - SE6

Parts (37)

RefPart NumberDescription
1 420666647 Electronic Box
3 Not Available As Spare Part - Connector ECU
4 710001539 Male Terminal Housing, 6 Circuits This part replaces 270000137.
5 278001005 Male Housing, 2 Circuits
6 Not Available As Spare Part - Connector EVAP
7 278001830 Housing Connector, 3 Circuits
8 278001005 Male Housing, 2 Circuits
9 710001184 Housing
10 278001830 Housing Connector, 3 Circuits
11 710003731 Housing This part replaces 710001872.
12 415128500 Female Terminal Housing, 2 Circuits
13 515176410 Male Connector
14 Not Available As Spare Part - Connector EVAP
15 710002516 Connector 3 Positions
16 515176129 Female Housing
17 515176410 Male Connector
18 Not Available As Spare Part - Connector GND
19 420650055 Connector
20 420666840 Transmission Module
22 Not Available As Spare Part - Connector TCU
23 710001184 Housing
24 710001539 Male Terminal Housing, 6 Circuits This part replaces 270000137.
26 Not Available As Spare Part - Connector
27 Not Available As Spare Part - Connector V1 / V2
28 Not Available As Spare Part - Connector V3 / V4
29 Not Available As Spare Part - Oil Temp. Sensor
30 420450481 O-Ring This part replaces 420450480.
31 420440147 Hex. Flange Screw M6 X 12
32 414176000 Open Clamp This part replaces 420853412.
33 420853414 Clamp
34 420440147 Hex. Flange Screw M6 X 12
35 420641588 Torx Flange Screw M6 X 16
36 420951650 Cable Clamp 150mm
37 420866714 Tie Rap
38 420951345 Tie Rap
39 420851493 Cable Clamp
40 420866716 Tie-Rap
