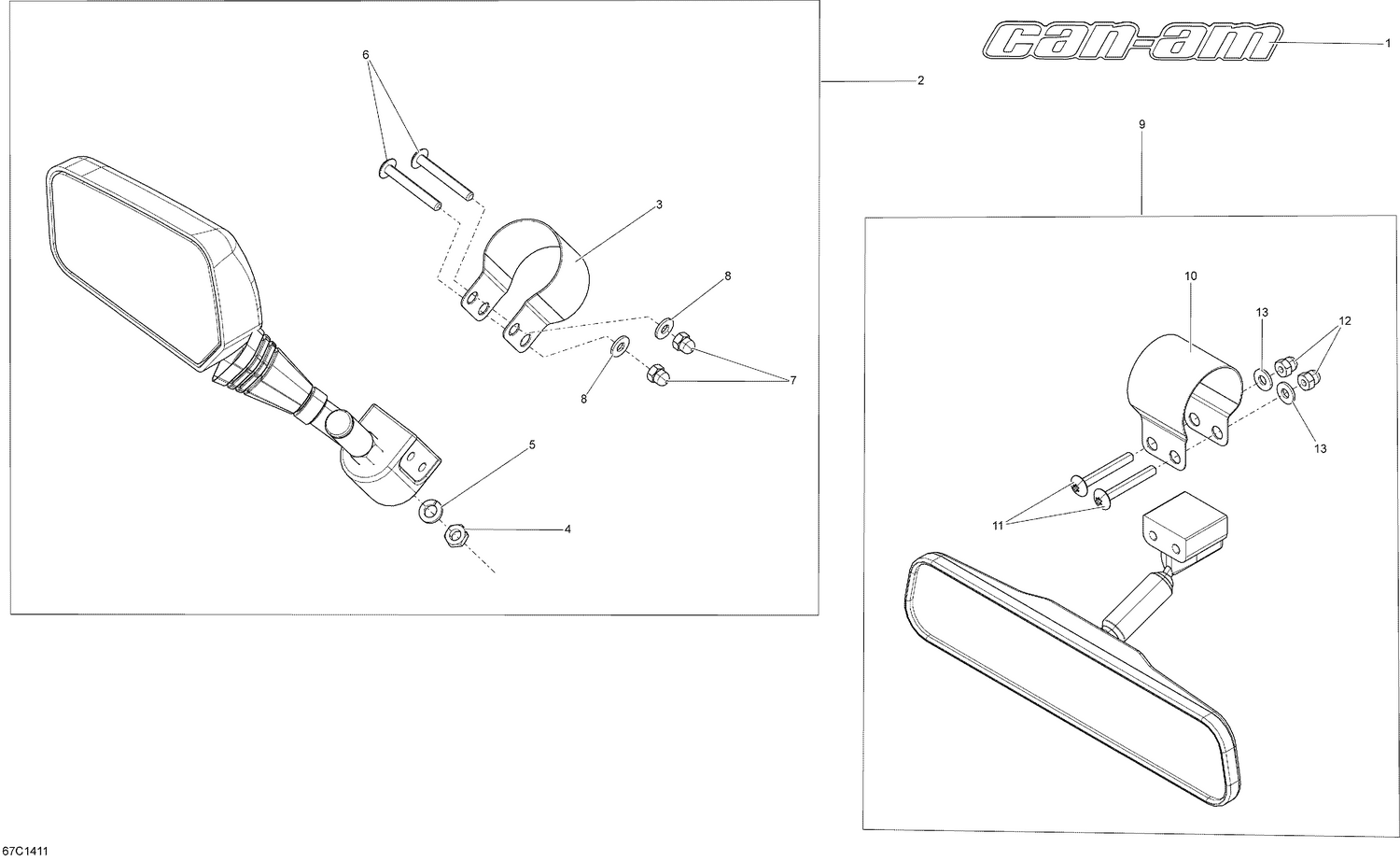

09- Mirrors _67C1411
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 704902319 | Cage Decal |
| 3 | 708200185 | MIRROR CLAMP - Call your local BRP dealership |
| 4 | 232180600 | Hex. Jam Nut M8 |
| 5 | 234181401 | Lock Washer 8 mm |
| 6 | 250000215 | Torx Screw M6 X 45 |
| 7 | 232361493 | Domed Nut M6 |
| 8 | 250200039 | Flat Washer |
| 10 | 708200185 | MIRROR CLAMP - Call your local BRP dealership |
| 11 | 250000215 | Torx Screw M6 X 45 |
| 12 | 232361493 | Domed Nut M6 |
