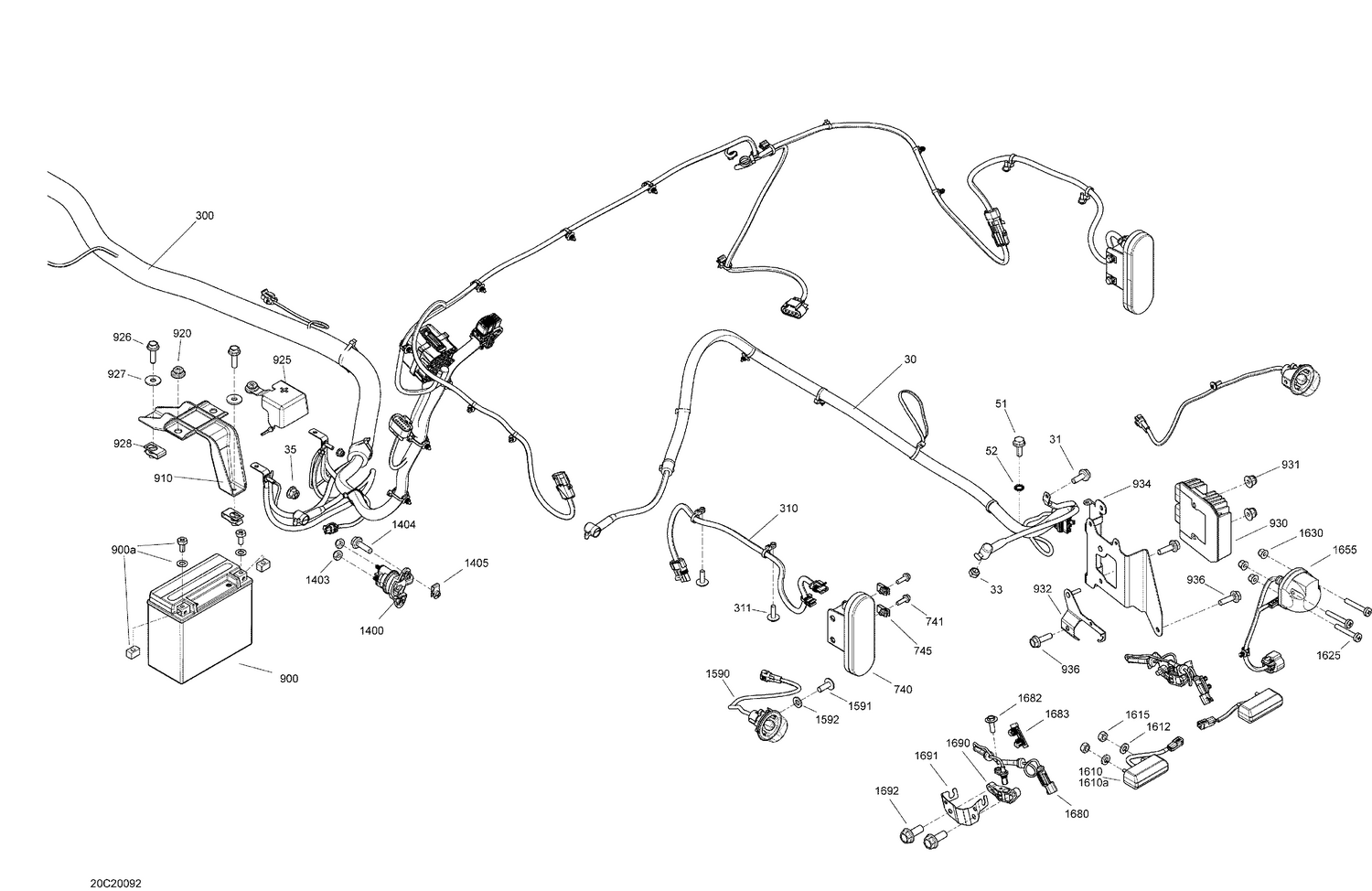

10- Electrical System - Rear
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 710007070 | Starter Wiring Harness |
| 31 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 33 | 232561414 | Elastic Stop Nut M6 |
| 35 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 51 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 52 | 234461608 | External Serrated Lock Washer 6 mm |
| 300 | 710006766 | Main Wiring Harness |
| 310 | 710006551 | Rear Harness |
| 311 | 250000959 | Screw PT Type K-50 X 16 |
| 740 | 710004257 | Tail Light |
| 741 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 745 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 900a | 250000282 | Battery Bolt Kit |
| 910 | 710005673 | Fixation Plate |
| 920 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 925 | 710005930 | Battery Cable Cap |
| 926 | 207662054 | Hex. Flange Screw M6 X 20 |
| 927 | 234062670 | Stainless Steel Flat Washer |
| 928 | 250100198 | Panel Nut M6 X 1.0 |
| 930 | 710005842 | Voltage Regulator |
| 931 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 932 | 710006402 | Voltage Regulator Attach |
| 934 | 710006656 | Voltage Regulator Support |
| 936 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1400 | 278003012 | Starter Relay |
| 1403 | 232561200 | Brass Elastic Stop Nut M6 |
| 1404 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1405 | 250100198 | Panel Nut M6 X 1.0 |
| 1590 | 710002964 | Flasher |
| 1591 | 250000721 | Torx Truss Screw M6 X 16 |
| 1592 | 234061410 | Flat Washer 6 mm |
| 1610a | 219800128 | Bulb |
| 1612 | 234161601 | Lock Washer Helical M6 |
| 1615 | 232061600 | Hex. Nut M6 |
| 1625 | 208653560 | Phillips Screw M5 X 35 |
| 1630 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1655 | 710007067 | Trailer Wiring Harness |
| 1680 | 710006981 | Speed Sensor |
| 1682 | 250000959 | Screw PT Type K-50 X 16 |
| 1683 | 278002910 | Clip (double dart) |
| 1690 | 705402088 | Sensor Support |
| 1691 | 710006452 | ABS Harness Support |
