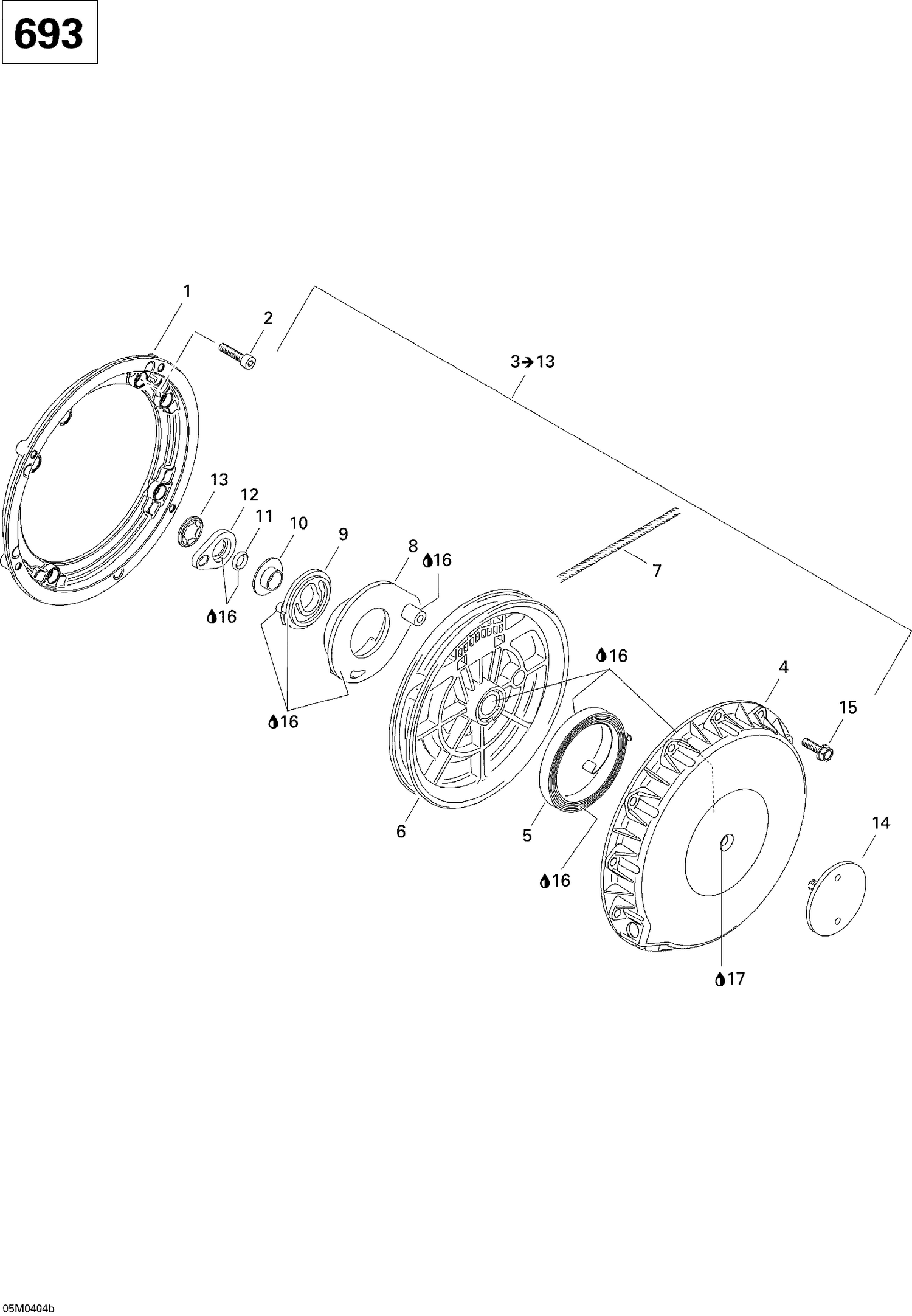

| Ref | Part Number | Description |
|---|
| 1 |
420810868 |
Flange Connector This part replaces 420810865. |
| 2 |
420241237 |
Socket Head Screw M6 x 16 This part replaces 420241236. |
| 4 |
420910256 |
Starter Housing This part replaces 420811404. |
| 5 |
420939115 |
Rewind Spring |
| 6 |
420852286 |
ROPE SHEAVE - Call your local BRP dealership |
| 7 |
219704403 |
Was 412500100 Rope-Starter |
| 8 |
420852633 |
Pawl This part replaces 420852297. |
| 9 |
420852305 |
PAWL LOCK - Call your local BRP dealership |
| 10 |
420847926 |
Stage Sleeve This part replaces 420847925. |
| 11 |
420250400 |
O-Ring |
| 12 |
420852520 |
Lock Ring |
| 13 |
420845560 |
Locking Element |
| 14 |
Not |
Available As Spare Part - Positionning pin |
| 15 |
420441386 |
Torx Flange Screw M6 X 20 This part replaces 420941256. |
| 16 |
420899763 |
Molykote PG 54, 10 g |
