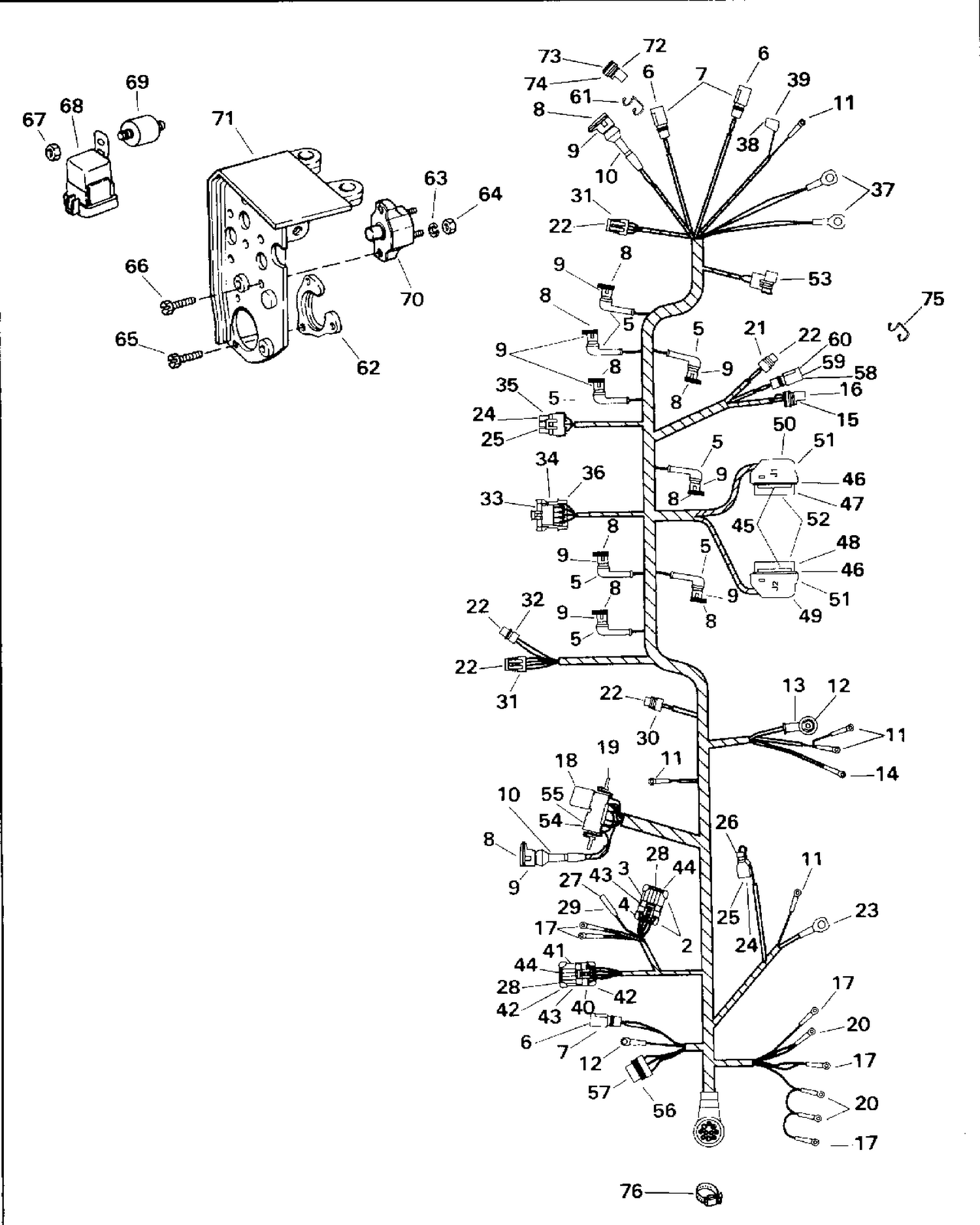

| Ref | Part Number | Description |
|---|
| 1 |
3856175 |
CABLE ASSY., Engine This part replaces 3855668. |
| 2 |
3855263 |
CAP, 4-pin connector |
| 3 |
3855240 |
CONNECTOR, 4-pin |
| 4 |
3855239 |
CONNECTOR, 4-pin |
| 5 |
3853711 |
BOOT |
| 7 |
3853565 |
CONNECTOR |
| 8 |
3853679 |
ISOLATOR, Relay mounting |
| 9 |
3852260 |
CONNECTOR |
| 10 |
3853681 |
BOOT |
| 15 |
3855077 |
CONNECTOR, Shift assist |
| 20 |
3854245 |
RING TERMINAL |
| 21 |
3855910 |
CONNECTOR, MAT sensor |
| 22 |
3855242 |
TERMINAL |
| 23 |
3852527 |
RING TERMINAL |
| 24 |
3855023 |
TERMINAL, Sensor |
| 25 |
3853478 |
SEAL, Temperature switch |
| 26 |
3853480 |
HOUSING, Knock sensor |
| 28 |
3855243 |
SEAL, Connector |
| 29 |
3855025 |
SLEEVE, Terminal |
| 30 |
3855244 |
CONNECTOR, MAT sensor |
| 32 |
3855245 |
CONNECTOR, 3-terminal |
| 33 |
3855246 |
TERMINAL, Spark control |
| 34 |
3855247 |
CONNECTOR, Spark control |
| 35 |
3855248 |
CONNECTOR, MAP sensor |
| 36 |
3855249 |
CAP, 5-pin connector |
| 37 |
3852527 |
RING TERMINAL |
| 39 |
0914745 |
COVER This part replaces 3853320. |
| 40 |
3855251 |
CONNECTOR |
| 41 |
3855252 |
CONNECTOR |
| 42 |
3855253 |
COVER, Connector |
| 44 |
3855254 |
PLUG |
| 45 |
3855255 |
BASE, Connector |
| 46 |
3855256 |
SEAL |
| 47 |
3855257 |
COVER, Connector, J1 module |
| 48 |
3855258 |
COVER, Connector, J2 module |
| 49 |
3855259 |
CONNECTOR HSG., J2 module |
| 50 |
3855260 |
CONNECTOR HSG., J1 module |
| 51 |
3855261 |
PLUG |
| 52 |
3855262 |
TERMINAL |
| 53 |
3854244 |
LEAD |
| 56 |
3854192 |
CONNECTOR, Relay |
| 58 |
3855169 |
CONNECTOR |
| 61 |
0512742 |
DISPOSITIF DE RETENUE, connecteur This part replaces 3852237. |
| 62 |
3852825 |
RETAINER, Engine cable |
| 66 |
3853620 |
SCREW, Circuit breaker |
| 68 |
3854138 |
RELAY, Engine control |
| 69 |
3853679 |
ISOLATOR, Relay mounting |
| 70 |
0987704 |
CIRCUIT BREAKER, 50 Amp This part replaces 3854283. |
| 70 |
3854186 |
CIRCUIT BREAKER, 60 Amp |
| 70 |
3854282 |
BREAKER, Fuel pump |
| 71 |
3850455 |
BRACKET, Engine cable |
| 72 |
3855178 |
CONNECTOR & PLUG, Slave |
| 74 |
3853564 |
CONNECTOR |
| 75 |
0513239 |
Retainer, 6 Terminal Connector This part replaces 3854930. |
