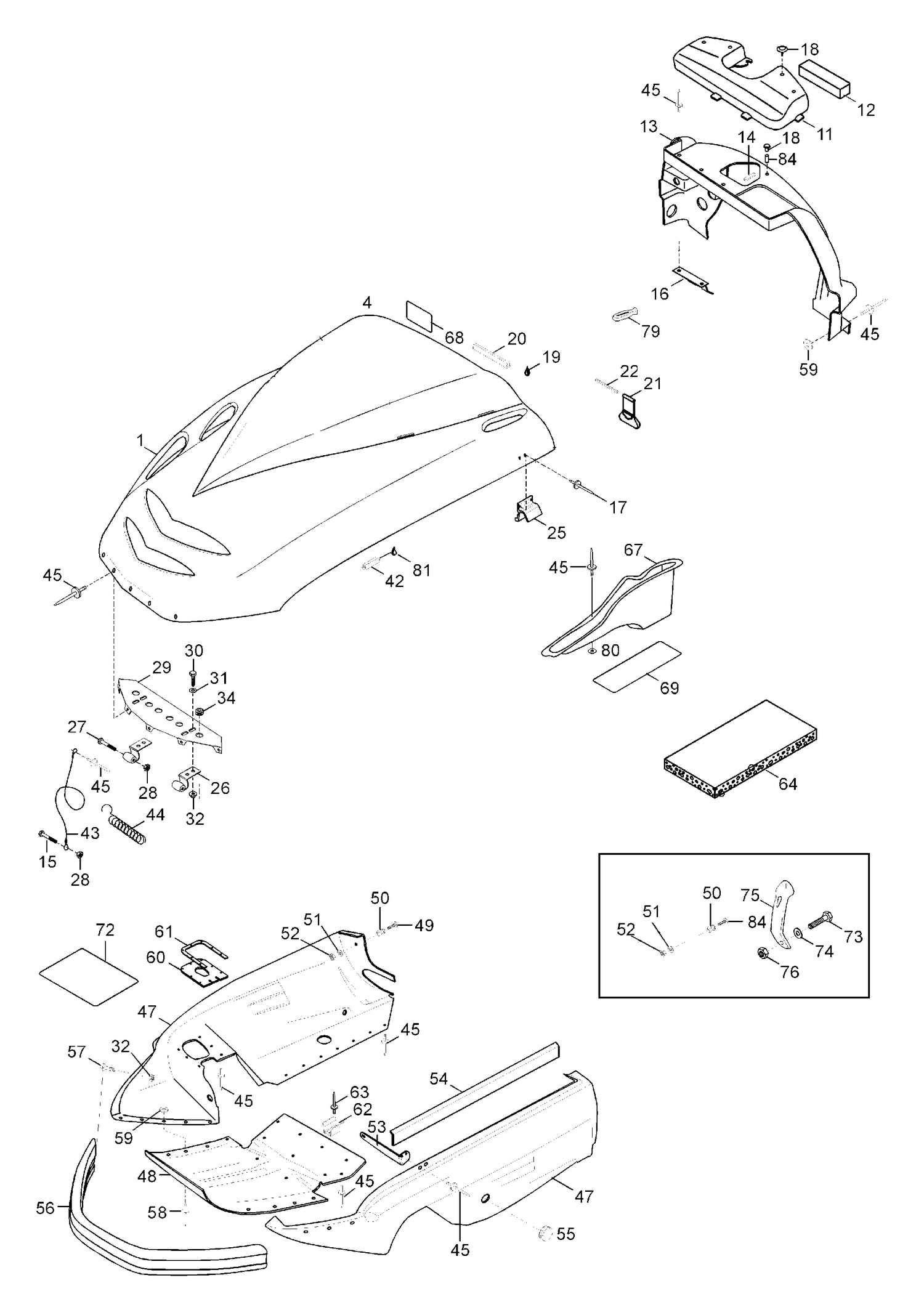

09- Hood
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1472142 | Hood red |
| 4 | Not | Available As Spare Part - Loctite 271, 10cc - DOES NOT APPLY TO THIS MODEL |
| 11 | 5343385 | Intake cover |
| 12 | 5343389 | Foam |
| 13 | 5144790 | Rear hood |
| 14 | 28413 | Sealing list |
| 15 | 40247 | Screw M5x16 |
| 16 | 5343015 | Bracket, console |
| 17 | 36009 | Rivet |
| 18 | 414644300 | Black, Dart |
| 19 | 32045 | Loctite 406 |
| 20 | 5442148 | Rubber ribbon |
| 21 | 547233 | Pull rubber |
| 22 | 41011 | Spring Pin |
| 25 | 5441542 | Guide |
| 26 | 5440164 | Hinge weld. |
| 27 | 40235 | Screw M5x35 |
| 28 | 33009 | Nut elastic M5 |
| 30 | 40029 | Screw M6x16 |
| 31 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 32 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 34 | Not | Available As Spare Part - Reflector - DOES NOT APPLY TO THIS MODEL |
| 40 | 33010 | Lock Nut M6 (1=10Pcs) |
| 42 | 5441964 | Trim |
| 43 | 5441558 | Retainer Cable |
| 44 | 2505171211 | Spring |
| 45 | 36036 | Rivet |
| 47 | 5141333 | Bottom pan, R.H. |
| 47 | 5141335 | Bottom pan, L.H. |
| 48 | 5142892 | Bottom pan, middle |
| 49 | 40168 | Slot screw |
| 50 | 542307 | Counter roll |
| 51 | 20037 | Washer |
| 52 | 33008 | Nut elastic M4 |
| 53 | 5343855 | Bracket L.H. |
| 53 | 5343856 | Bracket R.H. |
| 54 | 537206 | Support |
| 55 | 570277300 | Cap |
| 56 | 5241557 | Bumper |
| 57 | 40031 | Screw M6x25 |
| 58 | 36037 | Rivet |
| 59 | 20008 | Washer |
| 60 | 5342198 | Grommet |
| 61 | 5342199 | Plate |
| 62 | 5342387 | Guide |
| 63 | 36083 | Rivet |
| 67 | 5342183 | Air deflector brake |
| 68 | Not | Available As Spare Part - Reflector tape - DOES NOT APPLY TO THIS MODEL |
| 69 | 5342366 | Reflector tape |
| 72 | Not | Available As Spare Part - Rivet - DOES NOT APPLY TO THIS MODEL |
| 73 | 40170 | Screw M5x20 |
| 74 | 20008 | Washer |
| 75 | 570027100 | Hood latch |
| 76 | 33009 | Nut elastic M5 |
| 79 | Not | Available As Spare Part - Backrest cover - DOES NOT APPLY TO THIS MODEL |
| 80 | Not | Available As Spare Part - Backrest foam - DOES NOT APPLY TO THIS MODEL |
| 81 | 32045 | Loctite 406 |
