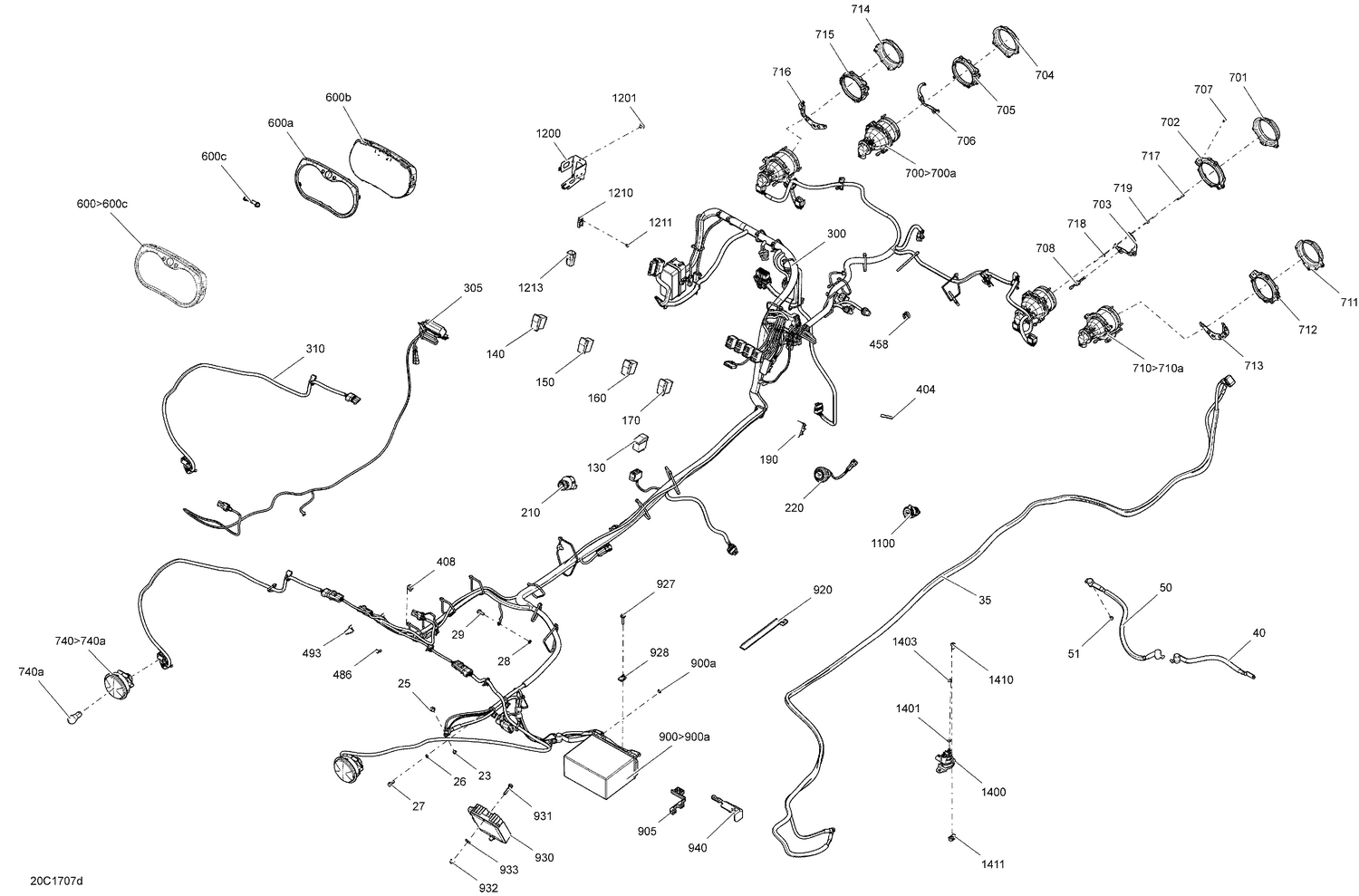

10- Electrical System - Turbo
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 23 | 234461608 | External Serrated Lock Washer 6 mm |
| 25 | 233061414 | Hex. Flange Nut M6 |
| 26 | 234461608 | External Serrated Lock Washer 6 mm |
| 27 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 28 | 234461608 | External Serrated Lock Washer 6 mm |
| 29 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 35 | 710004920 | POSITIVE CABLE - Call your local BRP dealership |
| 40 | 710004393 | Positive Cable |
| 50 | 710004390 | Positive Cable |
| 51 | 232561414 | Elastic Stop Nut M6 |
| 130 | 710002053 | Switch, Over ride |
| 140 | 710001725 | Hi/Low Switch |
| 150 | 710001737 | Interrupteur 4X4 |
| 160 | 710003541 | Switch PPS Sport |
| 170 | 710001781 | Switch DPS |
| 190 | 710007173 | Plug Carling This part replaces 710001999. |
| 210 | 710008400 | Ignition Switch This part replaces 710003847. |
| 220 | 710002594 | Engine Start Button |
| 300 | 710005229 | Main Harness Ass'y |
| 305 | 710004349 | WIRING HARNESS ASSY - Call your local BRP dealership |
| 310 | 710004685 | WIRING HARNESS REAR - Call your local BRP dealership |
| 404 | 414115200 | Tie-Rap 180 mm |
| 408 | 293730040 | Mount Dart This part replaces 293730018. |
| 458 | 293750009 | Tie-Rap 173 mm |
| 486 | 293750002 | Tie Wrap 142 mm |
| 493 | 293750008 | Tie Wrap 368 mm |
| 600a | 415129348 | Gauge Ring |
| 600b | 415129349 | Lens |
| 600c | 415129355 | Speedometer Button |
| 700a | 415129249 | Halogen Bulb |
| 701 | 710001081 | RH Low Front Housing |
| 702 | 710001082 | RH Low Rear Housing |
| 703 | 710001094 | RH Low Light Support |
| 704 | 710001083 | LH Low Front Housing |
| 705 | 710001084 | LH Low Rear Housing |
| 706 | 710001037 | LH Low Light Support |
| 707 | 250000723 | Phillips Screw K40 X 16 |
| 708 | 710001147 | Setting Screw |
| 710a | 415129249 | Halogen Bulb |
| 711 | 710001085 | RH High Front Housing |
| 712 | 710001086 | RH High Rear Housing |
| 713 | 710001115 | RH High Light Support |
| 714 | 710001087 | LH High Front Housing |
| 715 | 710001088 | LH High Rear Housing |
| 716 | 710001036 | LH High Light Support |
| 717 | 207142544 | Hex. Screw M4 X 25 |
| 718 | 234051410 | Flat Washer M5 |
| 719 | 232541414 | Elastic Stop Nut M4 |
| 740a | 520000758 | Bulb |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 710003602 | Battery Rubber Pad |
| 920 | 710001916 | Battery Holder |
| 927 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 928 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 930 | 710001191 | Voltage Regulator |
| 931 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 932 | 233261494 | Hex. Flange Elastic Nut M6 |
| 933 | 234062670 | Stainless Steel Flat Washer |
| 940 | 710003582 | Cap |
| 1100 | 710001248 | DC Outlet |
| 1200 | 710003335 | Fuse Holder |
| 1201 | 293150103 | Pop Rivet 3/16" |
| 1210 | 270000141 | Clip |
| 1211 | 390402400 | Pop Rivet 3/16" |
| 1213 | 710003006 | Housing |
| 1400 | 278003012 | Starter Relay |
| 1401 | 234161601 | Lock Washer Helical M6 |
| 1403 | 232061600 | Hex. Nut M6 |
| 1410 | 250000717 | Torx Head Screw M6 X 16 |
