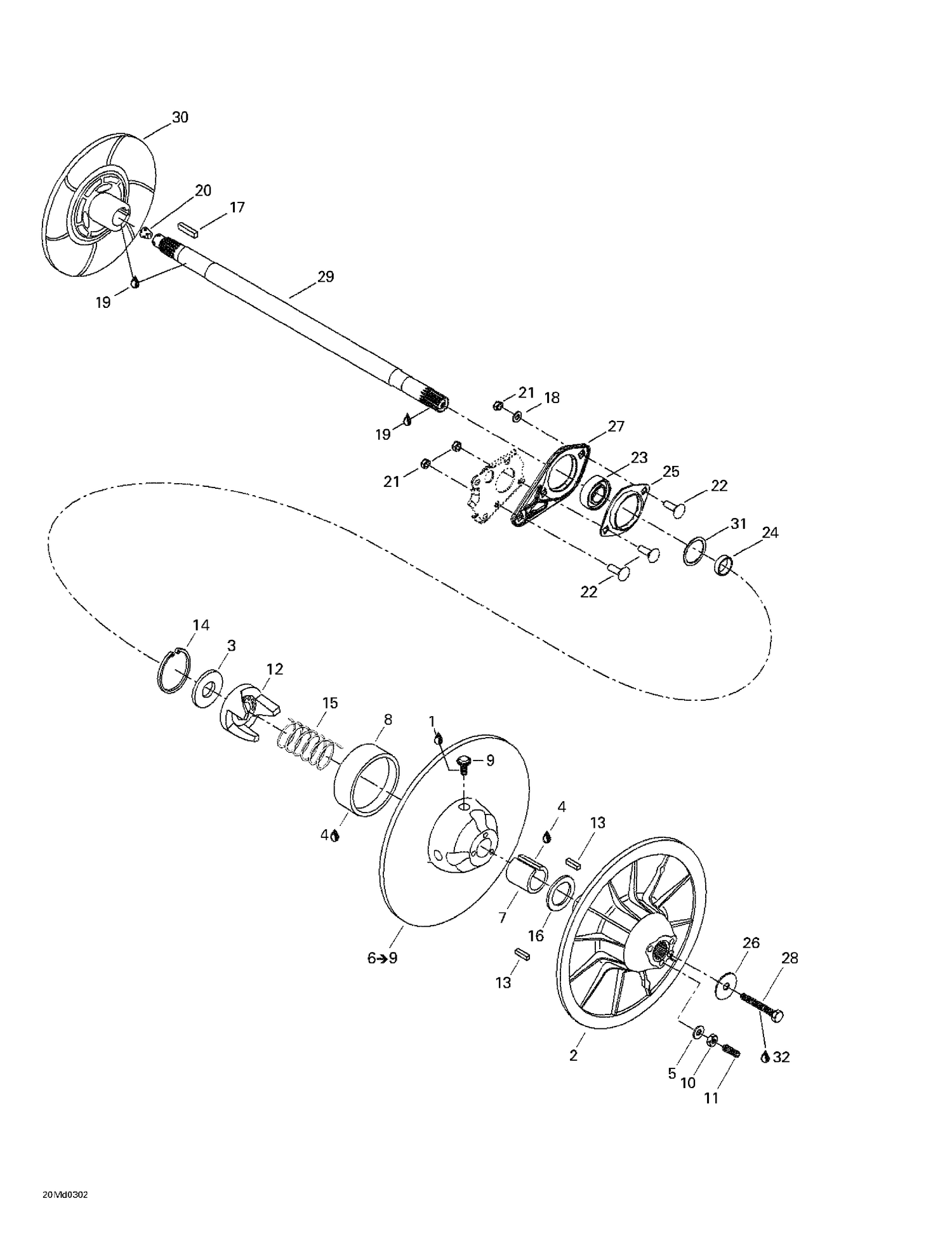

| Ref | Part Number | Description |
|---|
| 1 |
293800005 |
Loctite 271, 10 ml |
| 2 |
417126478 |
Fixed Flange Ass'y |
| 3 |
504141800 |
Washer |
| 4 |
413703100 |
Loctite 609, 10 ml |
| 5 |
420245370 |
WASHER - Call your local BRP dealership |
| 7 |
417126515 |
CUSHION - Call your local BRP dealership |
| 8 |
417126514 |
Cushion |
| 9 |
417126601 |
Roller |
| 10 |
232061414 |
Hex. Nut M6 |
| 11 |
206263044 |
Socket Set Screw M6 X 30 |
| 12 |
417126737 |
CAM 53/47 DEG - Call your local BRP dealership |
| 13 |
414820800 |
Key |
| 14 |
371903100 |
CIRCLIP - Call your local BRP dealership |
| 15 |
414558900 |
RELEASE SPRING, BEIGE - Call your local BRP dealership |
| 16 |
504141900 |
Thrust Washer |
| 17 |
507021300 |
KEY - Call your local BRP dealership |
| 18 |
234081410 |
Flat Washer 8 mm |
| 19 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 20 |
414784800 |
CORK - Call your local BRP dealership |
| 21 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 22 |
207782544 |
Carriage Bolt, M8 X 25 |
| 23 |
415129555 |
Ball Bearing Kit This part replaces 504152026. |
| 24 |
417126302 |
SPACER - Call your local BRP dealership |
| 25 |
504153089 |
BEARING HOUSING ASS'Y - Call your local BRP dealership This part replaces 501026900. |
| 26 |
517302322 |
Strength Washer |
| 27 |
504151968 |
SPACER - Call your local BRP dealership |
| 28 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 29 |
504152020 |
COUNTER SHAFT - Call your local BRP dealership |
| 30 |
507032363 |
Brake Disk Ass'y |
| 31 |
417300252 |
Spacer This part replaces 417300231. |
| 417300265 |
Entretoise |
This part replaces 417300054. 417300265 |
| 417300265 |
Spacer |
This part replaces 417300054. 417300265 |
