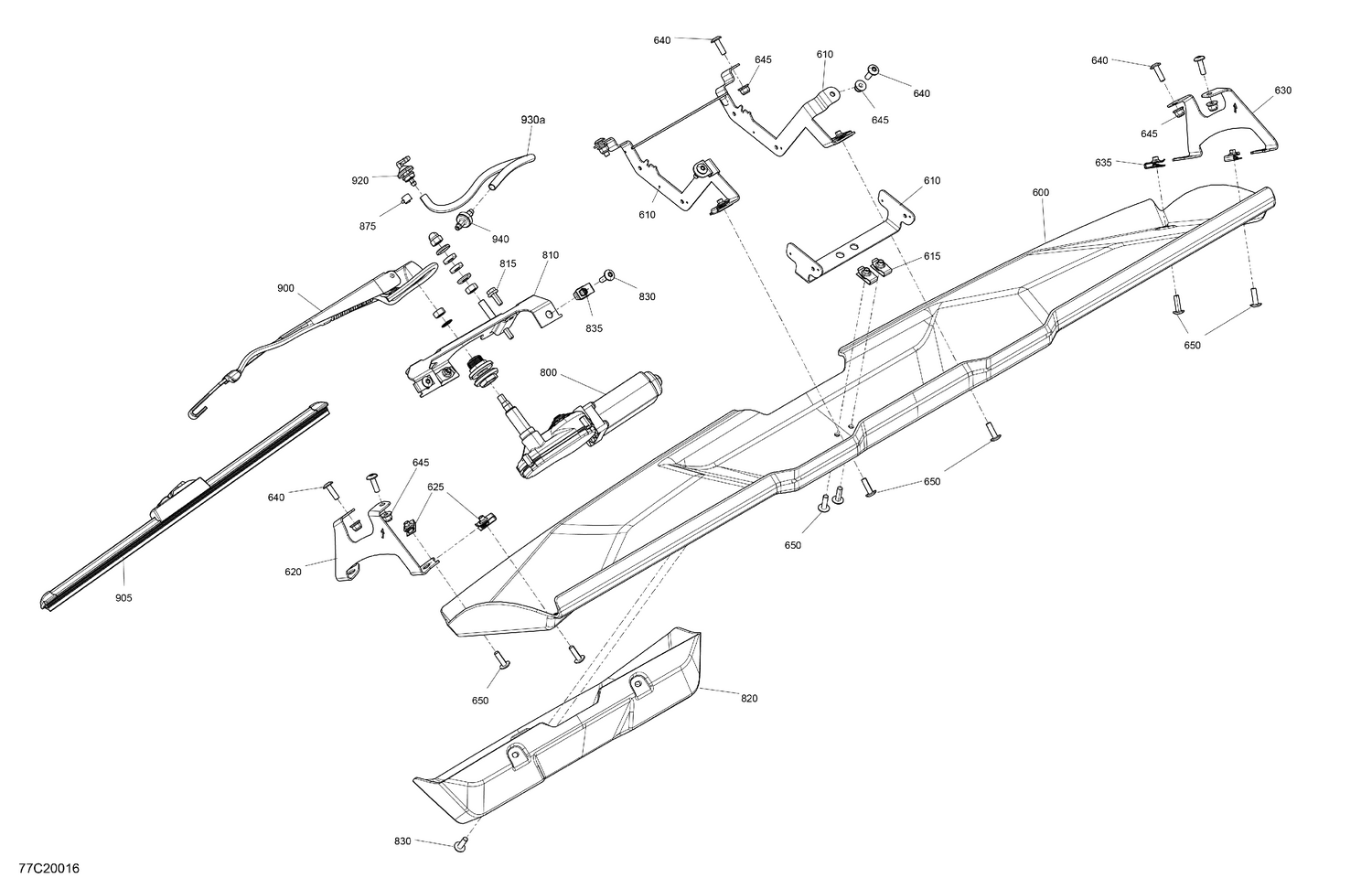

09- Cab - Upper Console - Cab LTD
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 600 | 715006524 | Radio Support Kit |
| 610 | 705800060 | Support |
| 615 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 620 | 705800108 | LH Support |
| 625 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 630 | 705800109 | RH Support |
| 635 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 640 | 250000722 | Torx Screw M6 X 20 |
| 645 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 650 | 250000722 | Torx Screw M6 X 20 |
| 800 | 705010657 | Wiper Motor |
| 810 | 705800073 | Cover Support Ass'y |
| 815 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 820 | 705800805 | Wiper Motor Trim This part replaces 705800072. |
| 830 | 250000722 | Torx Screw M6 X 20 |
| 835 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 875 | 414554800 | Spring Clamp |
| 900 | 705010656 | Wiper Arm |
| 905 | 705011443 | Winshield Wiper |
| 920 | 705800103 | Connecteur Coudé 90° |
| 930a | 219704389 | Polyurethane Hose 4000MM Long |
| 940 | 275500398 | Check Valve |
