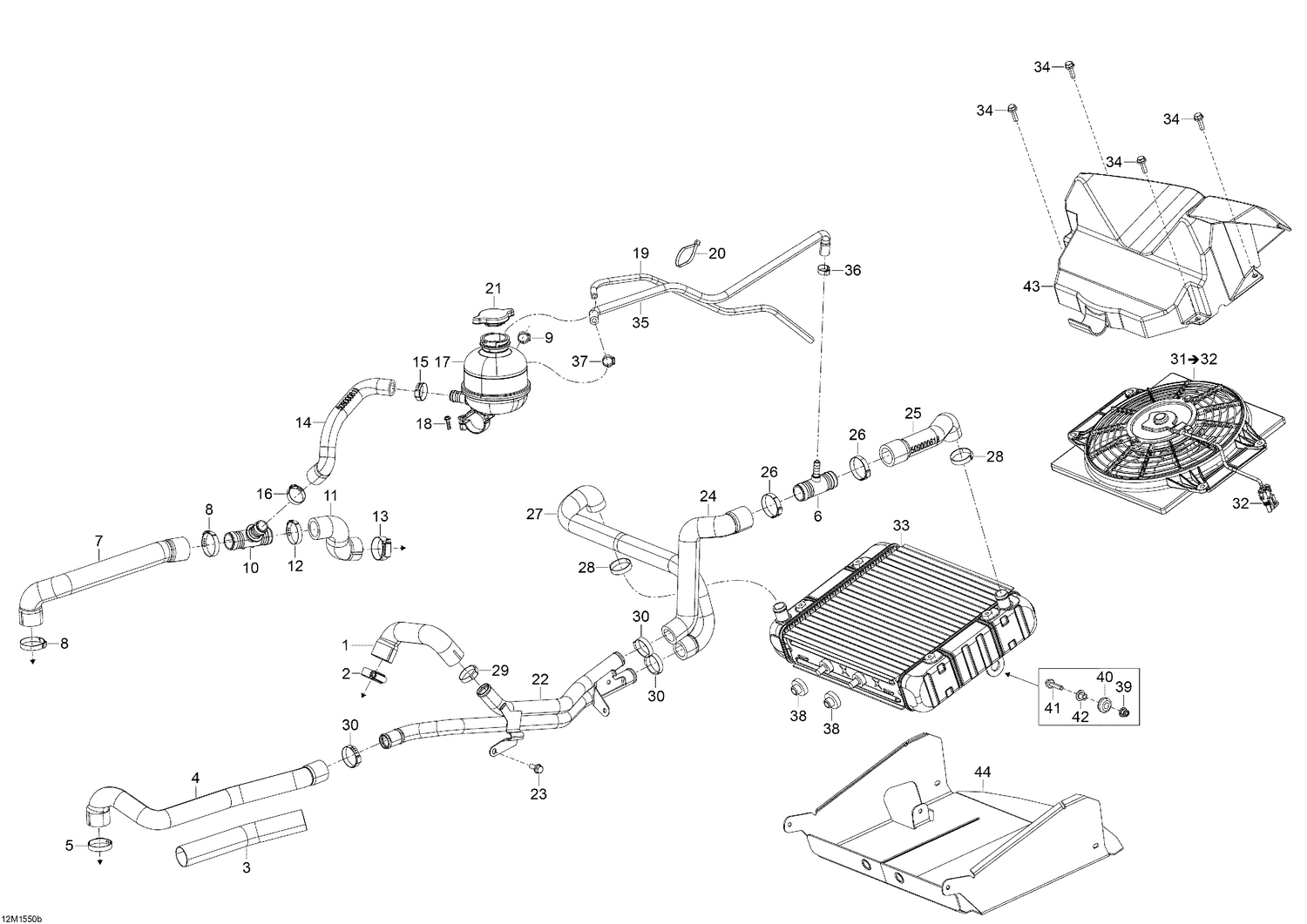

| Ref | Part Number | Description |
|---|
| 1 |
509000932 |
Engine Outlet Hose |
| 2 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 3 |
219704421 |
Protector Tube 32 Mm 1000Mm Long |
| 4 |
509000634 |
Hose |
| 5 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 6 |
509000510 |
T-Fitting |
| 7 |
509001062 |
Radiator Return Hose This part replaces 509000697. |
| 8 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 9 |
293650025 |
Oetiker Gear Clamp |
| 10 |
509000372 |
T-Fitting |
| 11 |
509000565 |
Engine Inlet Hose |
| 12 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 13 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 14 |
509001063 |
Filling Hose This part replaces 509000811. |
| 15 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 16 |
293650099 |
Crimp Clamp |
| 17 |
509000875 |
Cooling Tank |
| 18 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 19 |
509000775 |
Hose |
| 20 |
414115200 |
Tie-Rap 180 mm |
| 21 |
509000180 |
Radiator Pressure Cap |
| 22 |
509000800 |
Water Pipe |
| 23 |
207561634 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 24 |
509000617 |
Radiator Hose |
| 25 |
509000618 |
Radiator Hose |
| 26 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 27 |
509000560 |
Radiator Hose |
| 28 |
293650165 |
Oetiker Gear Clamp |
| 29 |
293650141 |
Oetiker Clamp |
| 30 |
509000735 |
Clamp |
| 32 |
278000220 |
Male Connector, 2 Circuits |
| 32 |
409007300 |
Female Terminal |
| 33 |
509000691 |
RADIATOR - Call your local BRP dealership |
| 34 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 35 |
509000860 |
Breather Hose |
| 36 |
293650047 |
Crimp Clamp, 15.3-706R |
| 37 |
293650025 |
Oetiker Gear Clamp |
| 38 |
709200285 |
Grommet |
| 39 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 40 |
709000582 |
Grommet This part replaces 293720053. |
| 41 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 42 |
293900100 |
Bushing |
| 43 |
509000866 |
Outlet Duct Ass'y |
