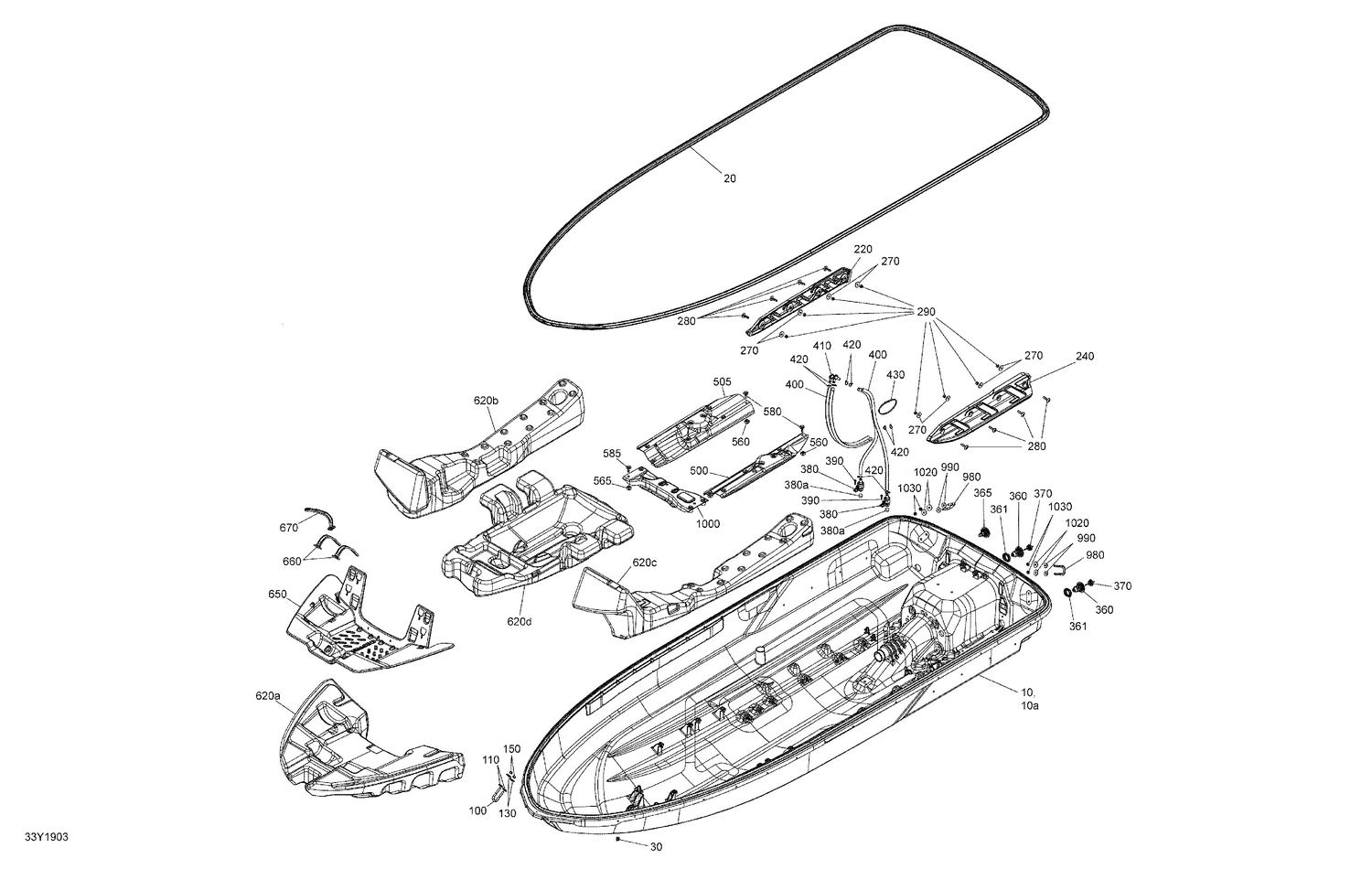

09- Hull
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 292001940 | Seal |
| 30 | 291003793 | Insert |
| 100 | 292000933 | U-Clamp |
| 110 | 293050001 | Flat Washer M8.5 x 18 |
| 130 | 250200175 | Flat Washer 8 mm, Stainless |
| 150 | 232581200 | Hex. Elastic Nut M8 Brass |
| 220 | 292001878 | RH Sponson |
| 240 | 292001877 | LH Sponson |
| 270 | 250200175 | Flat Washer 8 mm, Stainless |
| 280 | 250000697 | Torx Screw M8 X 35 |
| 290 | 232581200 | Hex. Elastic Nut M8 Brass |
| 360 | 292001580 | Drain Ass'y |
| 361 | 292001825 | Plastic Nut |
| 365 | 292001317 | Drain Neck Ass'y |
| 370 | 292002022 | Plug Ass'y |
| 380a | 293830080 | Floating Ball |
| 390 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 400 | 219704393 | Polyurethane Hose 1000Mm Long |
| 410 | 293710152 | Fitting Elbow 90° |
| 420 | 293750001 | Tie Wrap 94 mm |
| 430 | 293750008 | Tie Wrap 368 mm |
| 500 | 292001943 | LH Hull Stiffener |
| 505 | 292001944 | RH Hull Stiffener |
| 560 | 269501943 | Elastic Nut Housing M8 |
| 565 | 269501943 | Elastic Nut Housing M8 |
| 580 | 250000888 | Hexagonal Screw M8 X 30 |
| 585 | 250000888 | Hexagonal Screw M8 X 30 |
| 620a | 292001947 | Lower Front Foam |
| 620b | 292001948 | Central Foam RH |
| 620c | 292001949 | Central Foam LH |
| 620d | 292001950 | Fuel Tank Foam |
| 650 | 292001868 | Trunk Shield |
| 660 | 269502417 | Strap This part replaces 269500408. |
| 670 | 269502417 | Strap This part replaces 269500408. |
| 980 | 292000933 | U-Clamp |
| 990 | 279000336 | Flat Washer |
| 1000 | 292002123 | Front Hull Stiffener |
| 1020 | 250200175 | Flat Washer 8 mm, Stainless |
