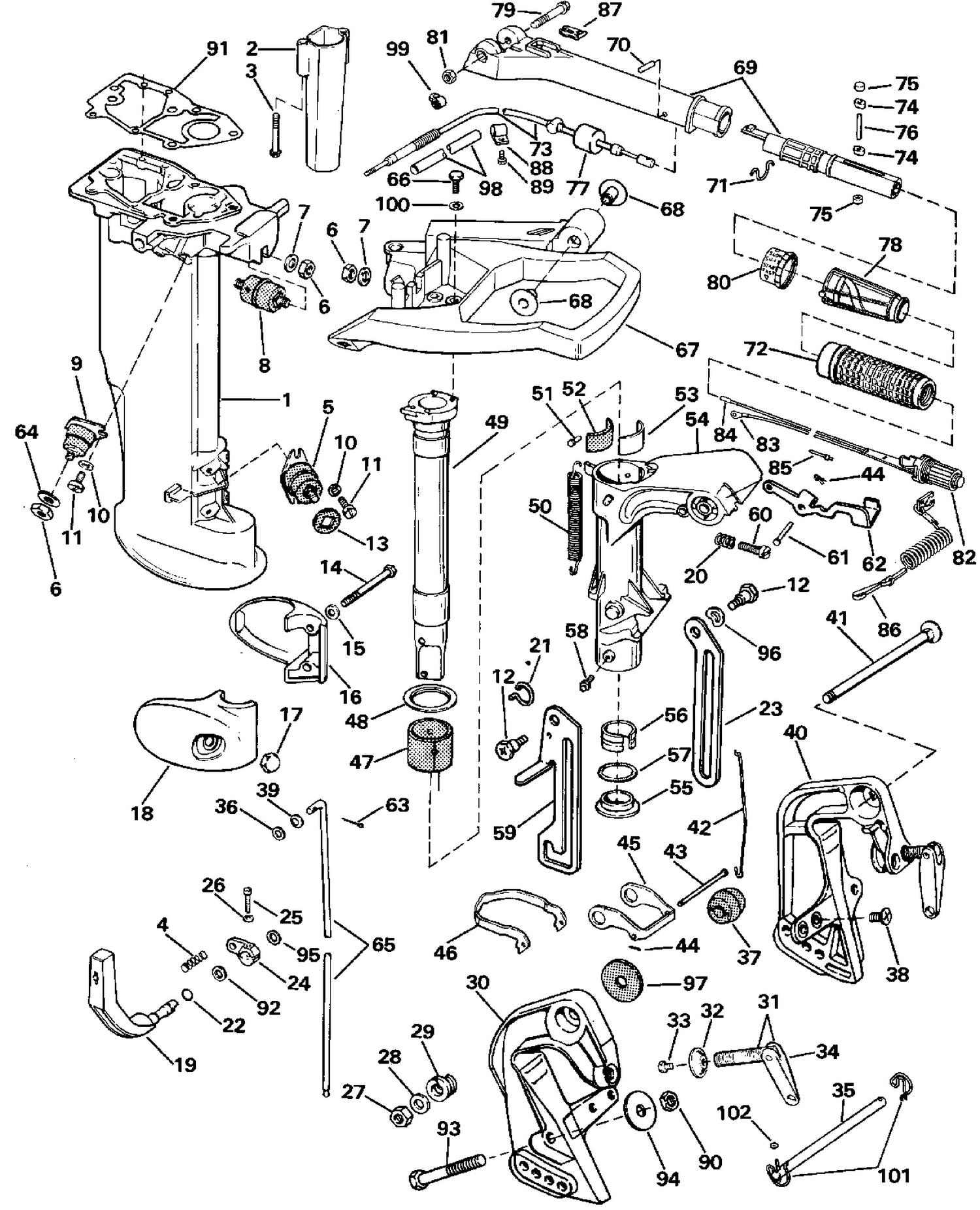

| Ref | Part Number | Description |
|---|
| 1 |
0395489 |
EXHAUST HOUSING ASSY. |
| 2 |
0328428 |
EXHAUST TUBE, Inner |
| 3 |
0306337 |
SCREW, Adjustment |
| 4 |
0303236 |
SPRING, Handle to washer |
| 8 |
0324725 |
MOUNT, Rubber, upper front |
| 9 |
0303879 |
MOUNT Rubber, upper side, std. only |
| 10 |
0303887 |
WASHEER, Pin to swivel bracket |
| 11 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 12 |
0328895 |
SCREW, Tilt lock |
| 13 |
0304168 |
GASKET, Mount, lower side |
| 14 |
0324424 |
SCREW, Carb. body, long This part replaces 0304299. |
| 16 |
0305554 |
HOUSING, Lower mount, port |
| 17 |
0303890 |
ACORN NUT, Lower side mount |
| 18 |
0305555 |
HOUSING, Lower mount, starboard |
| 19 |
0395473 |
LEVER & SHAFT ASSY., Shift |
| 21 |
0329690 |
SPRING, Support arm |
| 23 |
0329694 |
TILT LOCK BRACKET |
| 24 |
0395022 |
LEVER & BUSHING, Shift rod |
| 25 |
0319617 |
SCREW, Adaptor to motor |
| 28 |
0309335 |
WASHER |
| 29 |
0302051 |
SPRING Tilting bolt |
| 30 |
0396501 |
STERN BRACKET ASSY., Stbd. |
| 31 |
5000634 |
Driveshaft Ay This part replaces 0391495. |
| 32 |
0331462 |
PLATE, Swivel |
| 33 |
0321923 |
PLATE&SCREW AY |
| 35 |
0432453 |
KNOB & TILT PIN ASSY. This part replaces 0334470. |
| 37 |
0301983 |
CONICAK WASHER,Stern brkt |
| 38 |
0901889 |
SCREW |
| 39 |
0204757 |
BOW WASHER |
| 40 |
0396500 |
STERN BRACKET ASSY., Port (Includes items 31, 32, 33) |
| 41 |
0328008 |
BOLT, Tilt shaft |
| 42 |
0303978 |
LINK, Reverse lock arm to shaft |
| 43 |
0303949 |
ROD, Reverse lock |
| 45 |
0303950 |
LINK, Reverse lock |
| 46 |
0329962 |
LEVER, Reverse lock |
| 47 |
0303370 |
BUSHING, Upper swivel bracket |
| 48 |
0304290 |
WASHER, Thrust |
| 49 |
0304293 |
SHAFT, Pilot, steering bracket |
| 50 |
0303979 |
SPRING, Reverse lock |
| 51 |
0303696 |
PIN |
| 52 |
0303697 |
SPACER, Co-pilot plate to upper liner |
| 53 |
0303363 |
PLATE, Co-pilot |
| 54 |
0333714 |
SWIVEL BRACKET |
| 55 |
0309976 |
WASHER, Lower pilot shaft |
| 56 |
0309977 |
BUSHING, Lower, pilot shaft |
| 57 |
0309978 |
O RING |
| 59 |
0329693 |
ARM, Tilt support |
| 61 |
0303930 |
PIN, Cotter, pivot shaft |
| 62 |
0329640 |
ARM, Reverse lock |
| 65 |
0324728 |
SHIFT ROD, Upper (standard) |
| 67 |
0330097 |
STEERING BRACKET |
| 68 |
0335426 |
BUSHING, Handle to bracket This part replaces 0324594. |
| 69 |
0398736 |
HANDLE, Steering |
| 72 |
0395240 |
GRIP ASSY ., |
| 73 |
0397004 |
THROTTLE CABLE ASSY |
| 78 |
0329882 |
GRIP&HELIX AY |
| 79 |
0324602 |
VIS, barre |
| 82 |
0398692 |
IDLE STOP SWITCH ASSY. |
| 89 |
0909676 |
SCREW |
| 91 |
0324717 |
GASKET, Exhaust housing |
| 92 |
0303864 |
WASHER, Outer |
| 95 |
0303775 |
WAHSER, Lever to hsg |
| 96 |
0204445 |
BOW WASHER |
| 97 |
0304278 |
WASHER |
| 98 |
0330624 |
SLEEVE, Throttle cable & lead wires |
| 99 |
0324685 |
CONNECTOR, Cable to control shaft |
| 100 |
0328738 |
LOCKWASHER |
