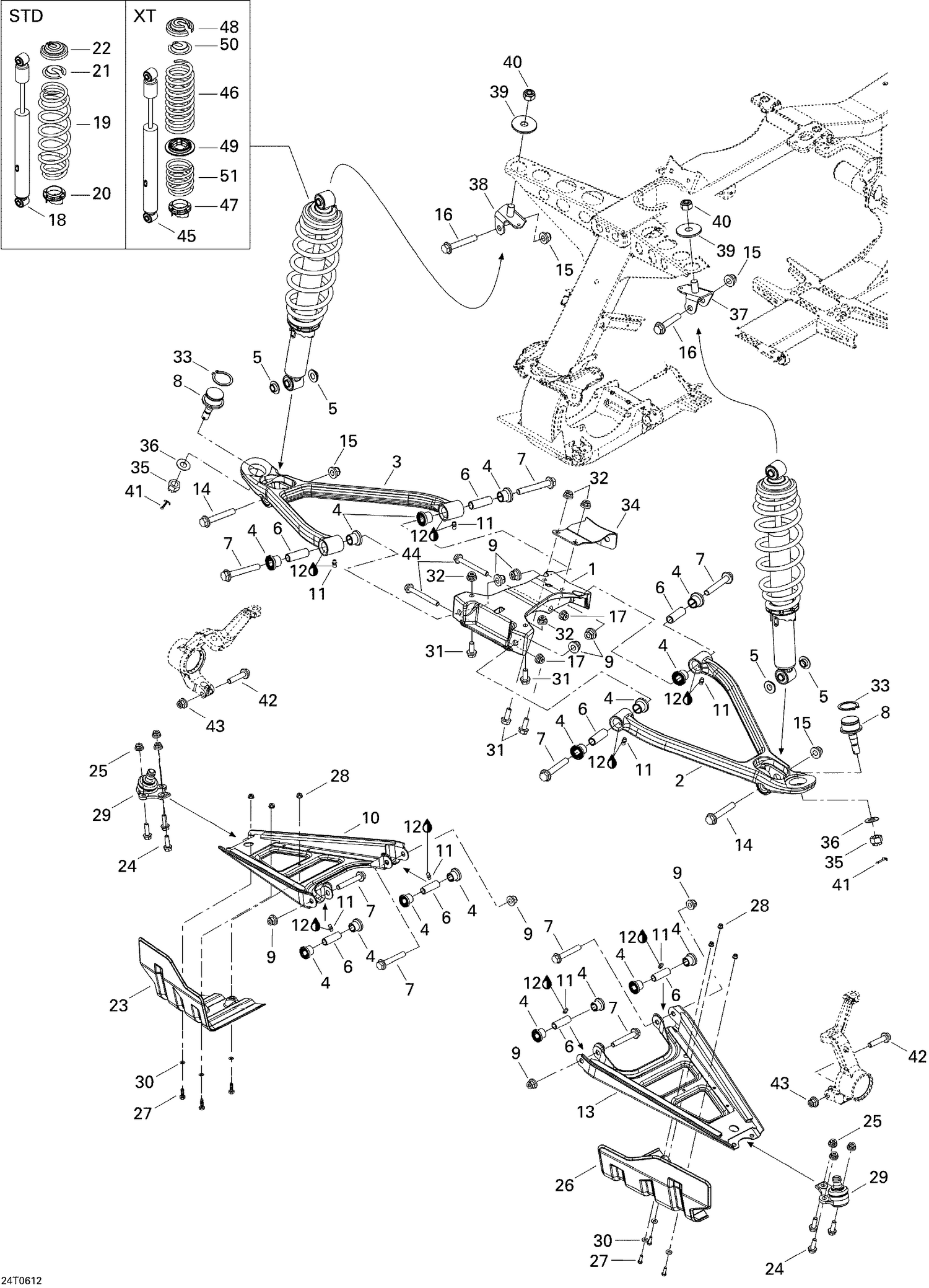

| Ref | Part Number | Description |
|---|
| 1 |
706201360 |
Upper Arm Bracket This part replaces 706200476. |
| 2 |
706200641 |
LH Upper Arm This part replaces 706200401. |
| 3 |
706200403 |
RH UPPER ARM - Call your local BRP dealership |
| 4 |
706200181 |
Bushing |
| 5 |
706200677 |
SPACER BUSHING - Call your local BRP dealership This part replaces 706200423. |
| 6 |
706201587 |
Sleeve This part replaces 706200182. |
| 7 |
207607046 |
Hex. Flange Screw M10 X 70 |
| 8 |
706200653 |
Ball Joint This part replaces 706200091. |
| 9 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 10 |
706205905 |
Suspension Arm This part replaces 706200509. |
| 11 |
408200700 |
Grease Fitting |
| 12 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 13 |
706205905 |
Suspension Arm This part replaces 706200509. |
| 14 |
207606536 |
Hex. Flange Screw M10 X 65 This part replaces 207606546. |
| 15 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 16 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 17 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 23 |
706200214 |
RH PROTECTOR - Call your local BRP dealership |
| 24 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 25 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 26 |
706200213 |
LH PROTECTOR - Call your local BRP dealership |
| 27 |
207151644 |
Hex. Screw M5 X 16 |
| 28 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 29 |
706200444 |
Joint Attachment |
| 30 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 31 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 32 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 33 |
293370009 |
Circlip 32 mm |
| 34 |
706200405 |
UPPER ARM BRACKET - Call your local BRP dealership |
| 35 |
250100099 |
Nut M12 This part replaces 250100045. |
| 36 |
706200281 |
Hardened Washer |
| 37 |
706200440 |
LH Upper Bracket |
| 38 |
706201036 |
R.H. BRACKET - Call your local BRP dealership This part replaces 706200441. |
| 39 |
706200490 |
SPACER - Call your local BRP dealership |
| 40 |
232521416 |
Elastic Stop Nut M12 |
| 41 |
211400017 |
Cotter Pin |
| 42 |
207604544 |
HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership |
| 43 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 44 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 45 |
XXX |
Not Available As Spare Parts |
| 46 |
XXX |
Not Available As Spare Parts |
| 47 |
XXX |
Not Available As Spare Parts |
| 48 |
XXX |
Not Available As Spare Parts |
| 49 |
XXX |
Not Available As Spare Parts |
| 50 |
XXX |
Not Available As Spare Parts |
