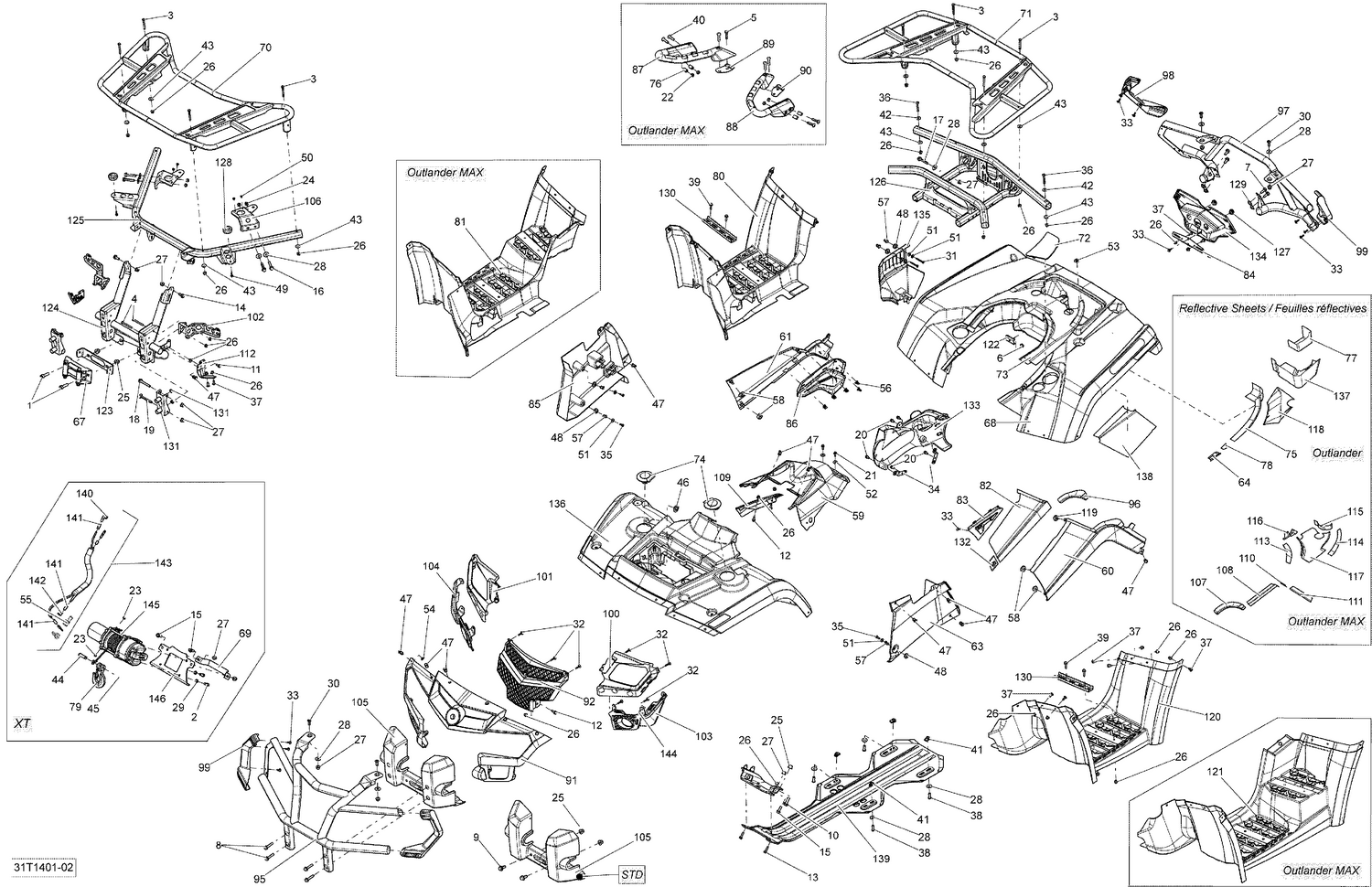

| Ref | Part Number | Description |
|---|
| 3 |
207065544 |
Hex. Screw M6 X 55 |
| 4 |
207066044 |
Hex. Screw M6 X 60 |
| 5 |
207083544 |
Hex. Screw M8 X 35 |
| 6 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 10 |
207603044 |
Hex. Flange Screw M10 X 30 |
| 11 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 12 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 13 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 14 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 16 |
207684544 |
Hex. Flange Screw M8 X 45 |
| 17 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 20 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 21 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 22 |
232081494 |
HEX. NUT - Call your local BRP dealership |
| 24 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 25 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 28 |
234082410 |
Flat Washer 8 mm |
| 31 |
241154540 |
Hex. Screw K50 X 45 |
| 32 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 34 |
705003646 |
Engine Cover Support |
| 35 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 36 |
250000749 |
Torx Truss Screw M6 X 50 This part replaces 250000239. |
| 37 |
250000755 |
Torx Screw M6 X 16 This part replaces 250000261. |
| 38 |
250000283 |
Torx Screw M8 X 25, Scotch Grip |
| 39 |
250000787 |
Hex. Flange Screw M6 X 25 This part replaces 250000435. |
| 40 |
250000441 |
TORX SCREW M8 X 35 - Call your local BRP dealership |
| 41 |
250100111 |
Panel Nut M8 |
| 42 |
250200040 |
Flat Washer |
| 43 |
224061201 |
Flat Washer This part replaces 250200072. |
| 46 |
293000103 |
PLASTIC CAP - Call your local BRP dealership |
| 47 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 48 |
709000582 |
Grommet This part replaces 293720053. |
| 49 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 50 |
390402300 |
Pop Rivet 3/16" |
| 51 |
391301600 |
Washer |
| 52 |
250200082 |
Flat Washer |
| 53 |
414859400 |
CAP - Call your local BRP dealership |
| 54 |
506151252 |
Washer |
| 56 |
517302785 |
Edge Clip |
| 57 |
517303439 |
Knob |
| 58 |
705000321 |
Oval Washer |
| 59 |
715000789 |
BLACK DASH-BOARD KIT - Call your local BRP dealership |
| 63 |
705000652 |
LH Inner Fender |
| 64 |
517305451 |
Heat Shield This part replaces 705000809. |
| 70 |
705002616 |
Front Luggage Rack |
| 71 |
705002617 |
Rear Luggage Rack |
| 72 |
705017923 |
LH Rear Body Panel Cap This part replaces 705001910. |
| 74 |
705001999 |
FRONT CAP - Call your local BRP dealership |
| 75 |
705002085 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 76 |
705002153 |
Bushing |
| 77 |
705002191 |
Reflective Sheet |
| 78 |
XXX |
Not Available As Spare Parts |
| 80 |
XXX |
Not Available As Spare Parts |
| 81 |
705002487 |
RH Footboard |
| 82 |
705002491 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 83 |
705002493 |
CONSOLE CAP - Call your local BRP dealership |
| 85 |
705002640 |
INNER FENDER - Call your local BRP dealership |
| 86 |
705002664 |
MUFFLER COVER - Call your local BRP dealership |
| 87 |
705002699 |
RH HANDLE - Call your local BRP dealership |
| 88 |
705002700 |
LH HANDLE - Call your local BRP dealership |
| 89 |
705002760 |
RH FIXATION PLATE - Call your local BRP dealership |
| 90 |
705002762 |
LH FIXATION PLATE - Call your local BRP dealership |
| 92 |
705002779 |
UPPER GRILL - Call your local BRP dealership |
| 96 |
XXX |
Not Available As Spare Parts |
| 100 |
705002825 |
LH HEAD LAMP SUPPORT - Call your local BRP dealership |
| 101 |
705002826 |
RH Head Lamp Support |
| 102 |
705002925 |
LH FACIA SUPPORT - Call your local BRP dealership |
| 102 |
705002926 |
RH FACIA SUPPORT - Call your local BRP dealership |
| 106 |
705002995 |
LH ANCHOR PLATE - Call your local BRP dealership |
| 106 |
705002997 |
RH Anchor Plate |
| 107 |
705003004 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 108 |
705003005 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 110 |
705003033 |
Reflective Sheet |
| 111 |
705003034 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 112 |
705003037 |
LH LOWER FACIA SUPPORT - Call your local BRP dealership |
| 112 |
705003039 |
RH LOWER FACIA SUPPORT - Call your local BRP dealership |
| 113 |
705003082 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 114 |
705003083 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 115 |
705003084 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 116 |
705003085 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 117 |
705003086 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 118 |
705003087 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 119 |
705003264 |
Grommet |
| 120 |
XXX |
Not Available As Spare Parts |
| 121 |
705003633 |
LH Footboard |
| 122 |
705003647 |
U Reinforcement |
| 124 |
705003654 |
FRONT BUMPER - Call your local BRP dealership |
| 125 |
705003655 |
FRONT SUPPORT - Call your local BRP dealership |
| 126 |
705003656 |
Rear Support |
| 127 |
705014429 |
Rubber Stopper This part replaces 705003666. |
| 128 |
705003667 |
RUBBER CAP - Call your local BRP dealership |
| 130 |
705003648 |
Footrest |
| 132 |
705003830 |
Reflective Sheet |
| 133 |
705003837 |
Engine Cover |
| 135 |
705004036 |
Thread Cover |
| 137 |
705002189 |
REFLECTIVE SHEET - Call your local BRP dealership This part replaces 705005888. |
| 139 |
715000688 |
PLATE_SKID CTRL. KIT - Call your local BRP dealership |
| 144 |
732610072 |
Push Nut |
