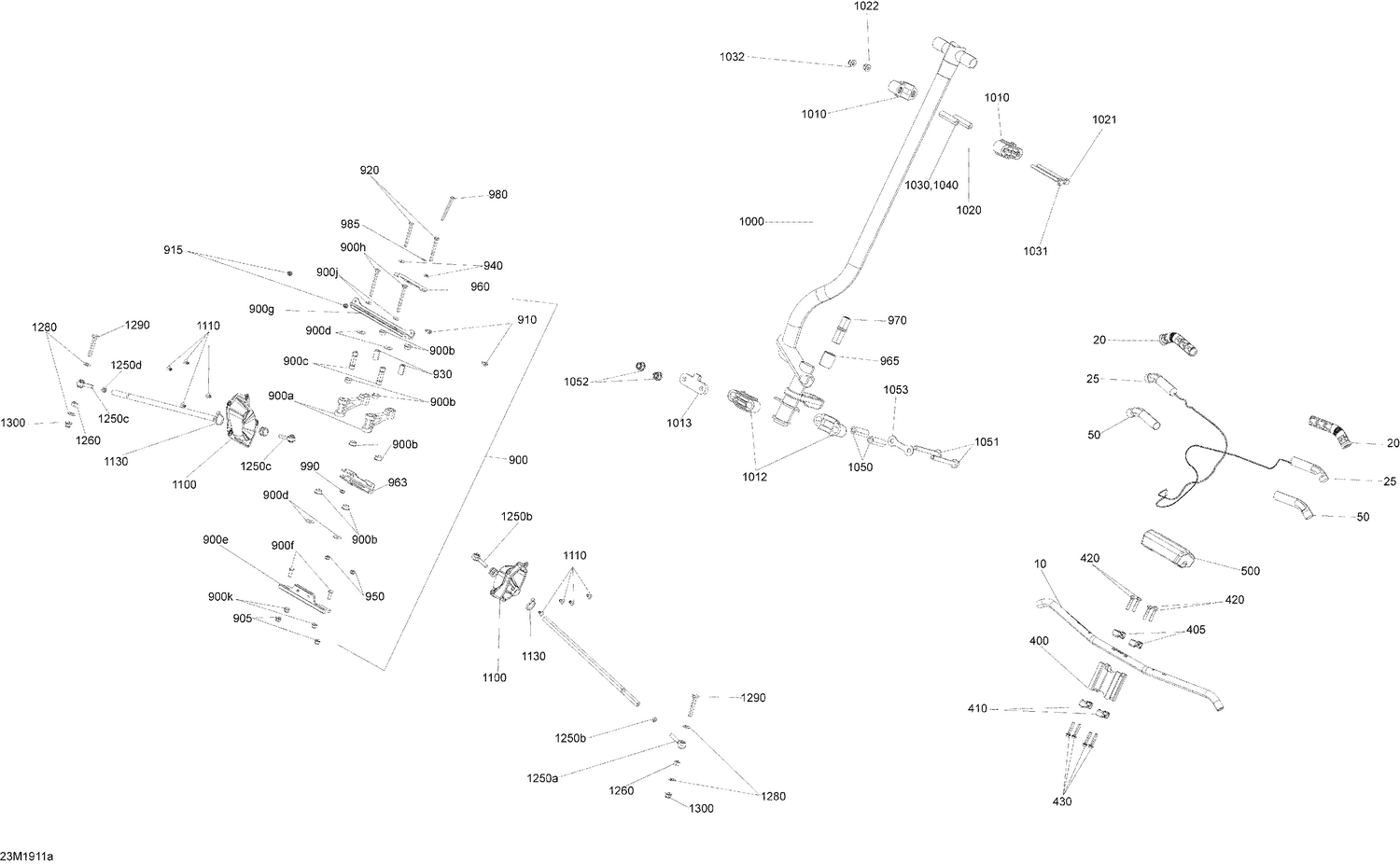

07- Steering - 600 Racing
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506153256 | Sunburst Yellow, Handle Bar This part replaces 506153047. |
| 20 | 506152560 | Grip 148mm |
| 25 | 506152856 | Heated Film |
| 50 | 506153176 | Thermal Insulation This part replaces 506152548. |
| 400 | 506153061 | Riser |
| 405 | 506152894 | Steering Support |
| 410 | 506152894 | Steering Support |
| 420 | 250000904 | Button Head Torx Screw M8 X 38 |
| 430 | 250000852 | Hex. Flange Screw M8 X 1.25 x 40 |
| 500 | 506152994 | Steering Pad Ass'y |
| 900b | 503194671 | Bushing |
| 900c | 506152792 | Swivel Pivot |
| 900d | 503191800 | Washer |
| 900f | 250300038 | Clinch Stud |
| 900g | 506152955 | Support Plate |
| 900h | 207088544 | HEX. SCREW M8 X 85 - Call your local BRP dealership |
| 900j | 503192494 | Washer |
| 900k | 233281466 | Elastic Flange Nut M8 |
| 905 | 233281416 | Hex. Elastic Flange Nut M8 |
| 910 | 207662044 | Hex. Flange Screw M6 X 20 |
| 915 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 920 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 930 | 506152957 | Swivel Pivot |
| 940 | 503192494 | Washer |
| 950 | 232581414 | Hex. Elastic Stop Nut M8 |
| 960 | 506152958 | Swivel Bar |
| 963 | 506152959 | Swivel Bar |
| 965 | 506152956 | Steering Lever Spacer |
| 970 | 506152960 | Pivot |
| 980 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 985 | 503192494 | Washer |
| 990 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1000 | 506152944 | Main Tube |
| 1010 | 506152293 | Half-Housing |
| 1012 | 506152993 | Half-housing |
| 1013 | 506152961 | Spacer |
| 1020 | 506152297 | Housing Bushing |
| 1021 | 207667554 | Hex. Flange Screw M6 X 75 |
| 1022 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1030 | 506152297 | Housing Bushing |
| 1031 | 207667554 | Hex. Flange Screw M6 X 75 |
| 1032 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1040 | 506152297 | Housing Bushing |
| 1050 | 506152937 | Housing Bushing |
| 1051 | 207687544 | Hex. Flange Screw M8 X 75 |
| 1052 | 233281416 | Hex. Elastic Flange Nut M8 |
| 1053 | 506152938 | Stopper Plate |
| 1100 | 506153294 | Cap This part replaces 506153109. |
| 1110 | 293150104 | Pop Rivet 3/16" |
| 1130 | 414115200 | Tie-Rap 180 mm |
| 1250a | 506152344 | LH Threaded Ball Joint |
| 1250b | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 1250c | 506152684 | RH Threaded Ball Joint |
| 1250d | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1260 | 506152713 | Washer |
| 1280 | 506152582 | Washer |
| 1290 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
