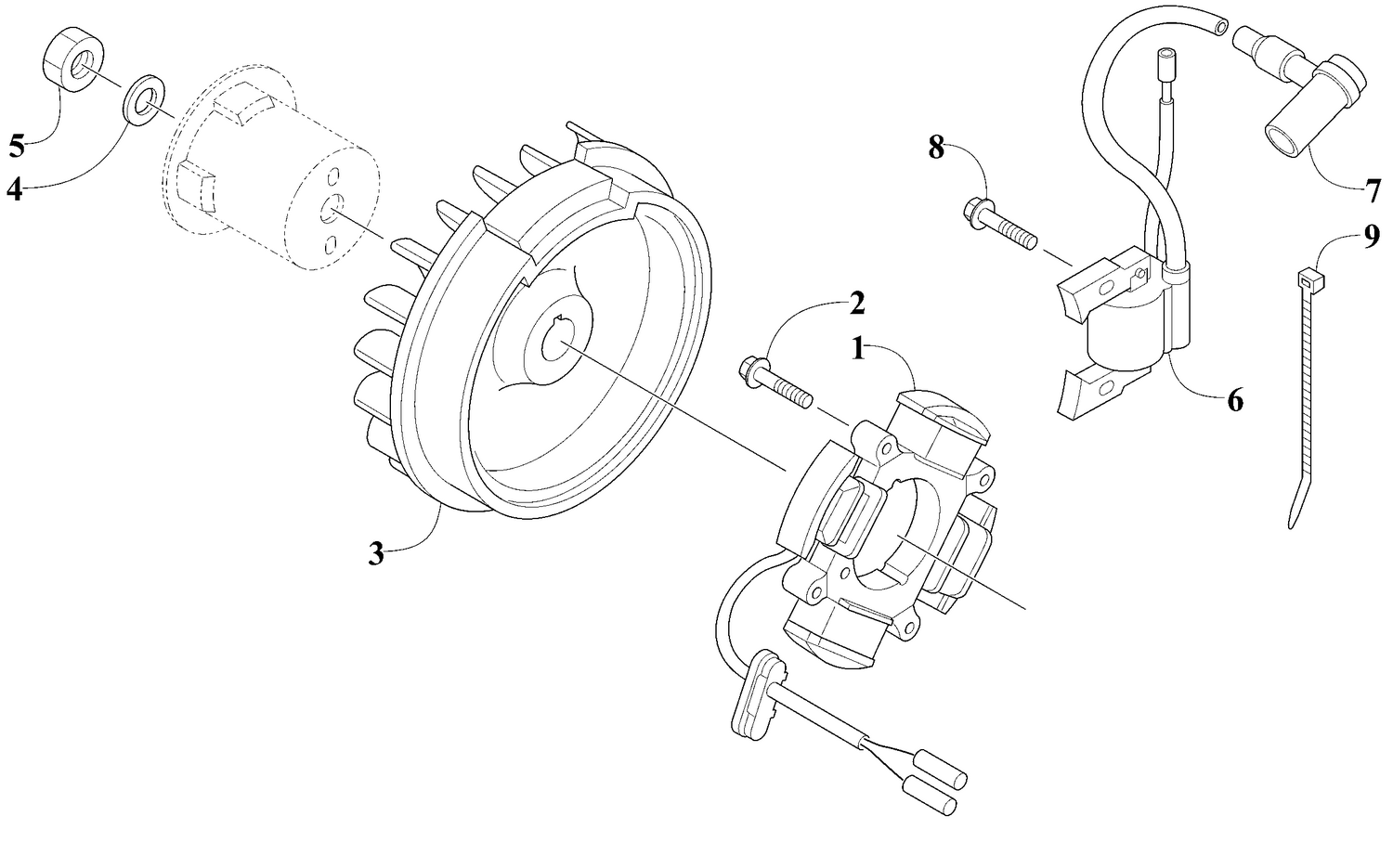

Engine - Magneto

Engine - Magneto

Parts (8)

RefPart NumberDescription
1 3020-006 Stator
2 3020-092 Cap Screw
3 3020-007 Rotor/Flywheel
4 3021-821 Washer
5 3020-095 Nut
6 3021-814 Ignition Coil Ass'y
7 3020-075 Spark Plug Cap
8 3021-817 Cap SCrew
