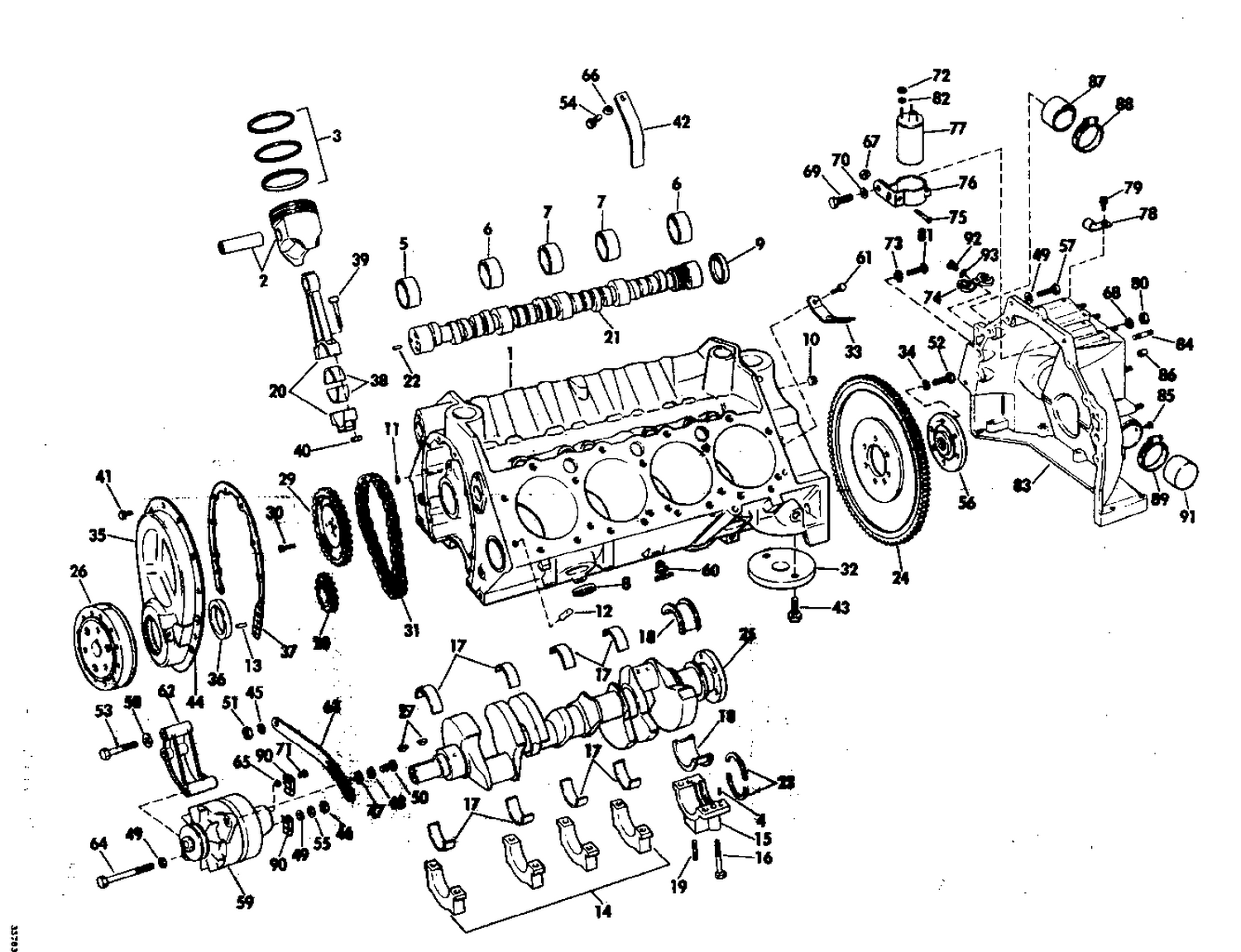

| Ref | Part Number | Description |
|---|
| 1 |
3964531 |
CRANKCASE ASSY |
| 2 |
3923294 |
PISTON & PIN ASSEMBLY - STD. |
| 2 |
3923296 |
PISTON & PIN ASSEMBLY, .020" O.S. |
| 2 |
3923297 |
PISTON & PIN ASSEMBLY ,.030" O.S. |
| 3 |
0326400 |
PISTON RING SET, Std |
| 3 |
0328503 |
PISTON RING SET, .030" O.S. |
| 4 |
3836903 |
PILOT PIN, Cam shaft gear |
| 5 |
3723584 |
BEARING , Camshaft, front |
| 6 |
3723585 |
BEARING, Camshaft, #2, #5 |
| 7 |
3723586 |
BEARING, Camshaft, #3, #4 |
| 8 |
0311376 |
CORE PLUG, Side |
| 9 |
3997752 |
PLUG, Camshaft bearing, rear |
| 10 |
0444776 |
PLUG, Oil gallery, |
| 11 |
3701638 |
PLUG, Oil galler, fron, 1/2" dia cup shaped |
| 12 |
0585927 |
DOWEL PIN |
| 13 |
3836903 |
PILOT PIN, Cam shaft gear |
| 14 |
3956688 |
CAP, Crankshaft bearing |
| 15 |
3911007 |
CAP, Camshaft brg, rear |
| 17 |
3912038 |
BEARING ASSY, #2 #3, #4, std. |
| 17 |
3912039 |
BEARING ASSY, #2, #3, #4, .001" u.s |
| 17 |
3912040 |
BEARAING ASSY.-FRONT & INTERMEDIATE,.002"us |
| 17 |
3912041 |
BEARING ASSY -EXC REAR, .010'' u.s. |
| 17 |
3912042 |
BEARING ASSY 0EXC REAR, .020'' u.s. |
| 18 |
3912030 |
BEARING ASSY - REAR, Std |
| 18 |
3912032 |
BEARING ASSY - REAR, .001" U.S. |
| 18 |
3912033 |
BEARING ASSY - REAR, .002" U.S. |
| 18 |
3912035 |
BEARING ASSY - REAR, .010" U.S. |
| 18 |
3912036 |
BEARING ASSY - REAR, .020" U.S. |
| 20 |
3916396 |
CONNECTING ROD ASSY |
| 21 |
3896929 |
CAMSHAFT ASSY |
| 21 |
3896962 |
CAMSHAFT ASSY, 245 hp |
| 22 |
3836903 |
PILOT PIN, Cam shaft gear |
| 23 |
3958001 |
OIL SEAL SET, C'shart rear brg. |
| 24 |
3973452 |
FLYWHEEL ASSEMBLY |
| 25 |
3941172 |
CRANKSHAFT ASSEMBLY |
| 26 |
6272223 |
BALANCER, Crankshaft |
| 27 |
0106751 |
KEY, Wdf, 3/16" x 3/4" |
| 28 |
0912960 |
SPROCKET, Crankshaft This part replaces 0315982. |
| 28 |
3735413 |
SPROCKET, Crankshaft |
| 29 |
3735412 |
SPROCKET, Camshaft |
| 30 |
0443899 |
BOLT, Camshaft sprocket |
| 31 |
3735411 |
CHAIN, Camshaft |
| 32 |
3952301 |
ADAPTER & VALVE ASSEMBLY |
| 33 |
3864498 |
RETAINER LEADS |
| 34 |
0136857 |
L'WASHER,Flywheel |
| 35 |
3991433 |
COVER, Crankcase front |
| 36 |
3980267 |
SEAL |
| 37 |
3799620 |
GASKET, Front cover |
| 38 |
3910555 |
BEARING, Connecting rod, std. |
| 38 |
3910556 |
BEARING, Rod, .001" u.s. |
| 38 |
3910557 |
BEARING, Rod .002" u.s. |
| 38 |
3910558 |
BEARING, Rod, .010" u.s. |
| 38 |
3910559 |
BEARING, Rod, .020" u.s. |
| 39 |
3916399 |
BOLT, Connecting fod |
| 40 |
3866766 |
NUT, Conn rod, 11/32-24 |
| 41 |
3817006 |
BOLT, Camshaft sprocket |
| 42 |
3851294 |
BRACE, Sarting motor |
| 43 |
3951644 |
BOLT, Adapter |
| 44 |
3997780 |
POINTER, Timing |
| 50 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 52 |
0908375 |
BOLT, Flywheel |
| 54 |
0306555 |
SCREW |
| 55 |
0309336 |
L'WASHER, Alternator to bracket |
| 57 |
0908380 |
SCREW |
| 59 |
0383443 |
ALTERNAOR ASSY., Complete |
| 60 |
0379957 |
PETCHOCK ASSY, Water drain |
| 61 |
0306419 |
SCREW |
| 62 |
0312775 |
BRACKET, Alternator |
| 63 |
0312776 |
BRACE, Alternator |
| 64 |
0311391 |
SCR,Altnr to brkt |
| 65 |
0206421 |
D WASHER |
| 67 |
0308335 |
CLAMP, Coil |
| 68 |
0120177 |
L'WASHER, Alternator to brkt |
| 73 |
0307001 |
L'WASHER, Stud c'case |
| 74 |
0314823 |
RETAINER, Cable con |
| 75 |
0306519 |
SCR,Coil clamp |
| 76 |
3852218 |
BRACKET, Oil cooler This part replaces 0383448. |
| 77 |
3852217 |
COIL ASSY. Ignition This part replaces 0383444. |
| 78 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 79 |
0303311 |
SCR,Clamp,eng cable |
| 80 |
0316562 |
NUT, Clamp screw |
| 81 |
0312861 |
SCREW, Cable ground |
| 82 |
0550757 |
L'WASHER,Coil term |
| 83 |
0980382 |
ADAPTER HOUSING This part replaces 0384560. |
| 85 |
0160280 |
DRIVE SCREW |
| 86 |
0309614 |
DOWEL |
| 87 |
0908049 |
CAP, Exh. inlet adapter, 245 hp |
| 88 |
0310894 |
CLAMP |
| 89 |
0310894 |
CLAMP |
| 90 |
0901463 |
CLAMP |
| 91 |
0908049 |
CAP, Exh. inlet adapter, 245 hp |
| 92 |
0303699 |
SCREW |
