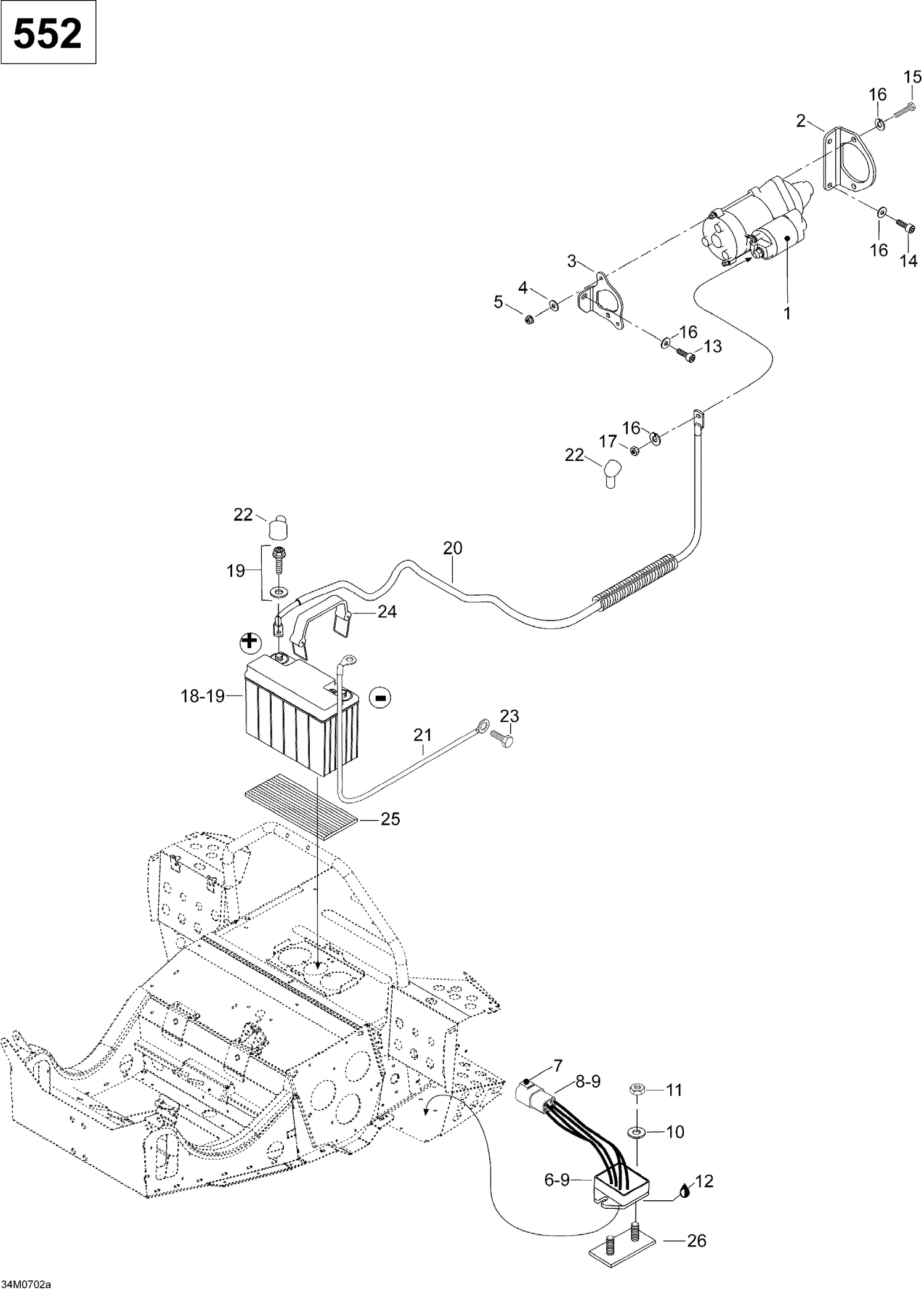

| Ref | Part Number | Description |
|---|
| 1 |
515175795 |
STARTER ASS'Y - Call your local BRP dealership |
| 2 |
515175652 |
STARTER BRACKET - Call your local BRP dealership |
| 3 |
515175633 |
STARTER SUPPORT MAG SIDE - Call your local BRP dealership |
| 4 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 5 |
232551414 |
Elastic Stop Nut M5 |
| 7 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 8 |
515175568 |
Male Terminal |
| 9 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 10 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 11 |
232561414 |
Elastic Stop Nut M6 |
| 12 |
413707500 |
Grease Tube Lmz, 400 G |
| 13 |
M40066 |
Hex. Screw M8 X 16 |
| 14 |
205082044 |
Socket Head Screw M8 X 20 |
| 15 |
207182044 |
Hex. Screw M8 X 20 |
| 16 |
234181401 |
Lock Washer 8 mm |
| 17 |
M33003 |
NUT - Call your local BRP dealership |
| 19 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 20 |
605349434 |
BATTERY WIRE - Call your local BRP dealership |
| 21 |
Not |
Available As Spare Part - Battery Wire |
| 22 |
570151000 |
Protection Cap |
| 23 |
M40327 |
SCREW-M6X12 - Call your local BRP dealership |
| 24 |
515176044 |
Battery Strap This part replaces 515175475. |
| 25 |
605350237 |
BATTERY CARPET - Call your local BRP dealership |
