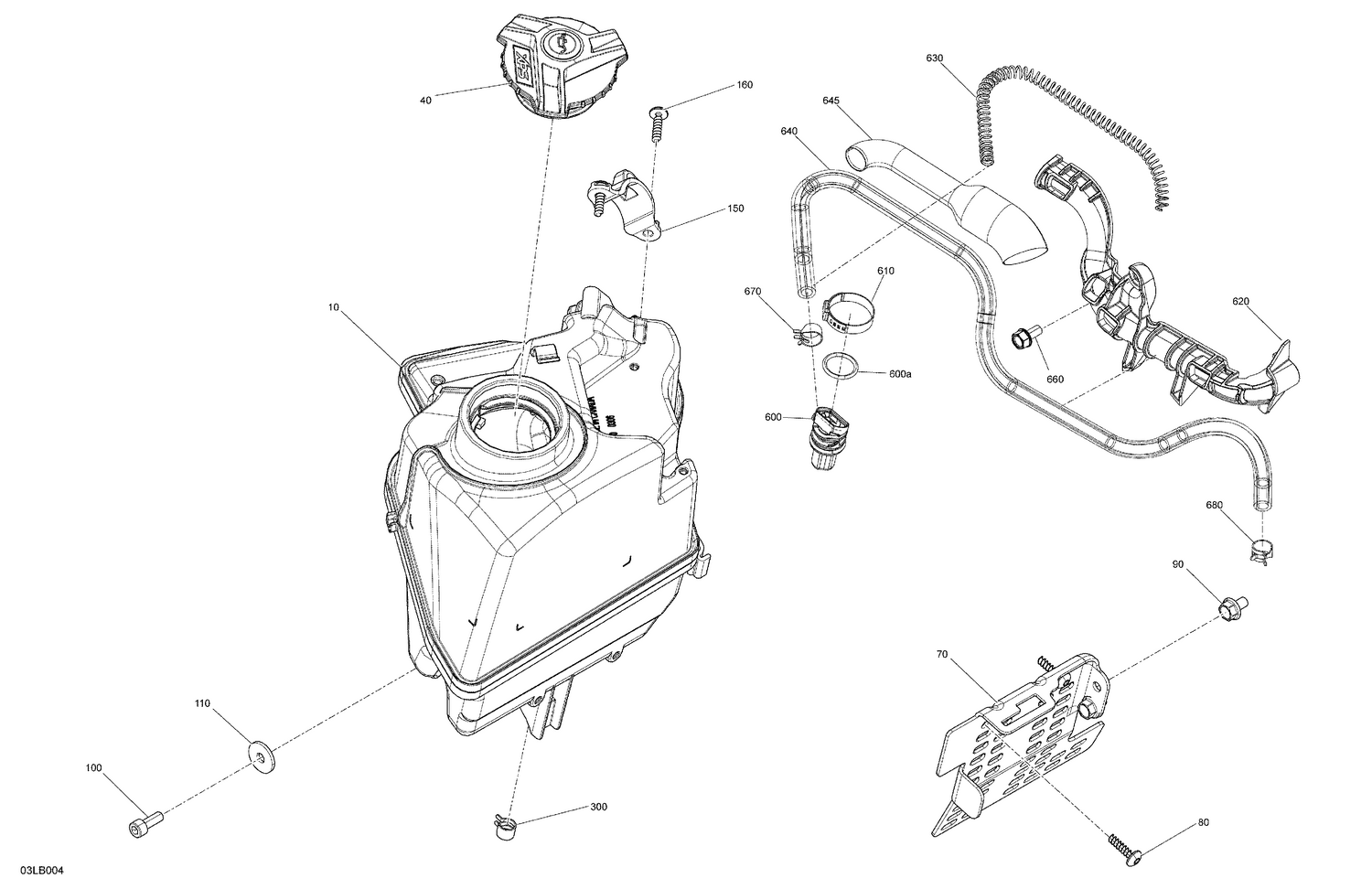

02- Engine - Oil
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 519000368 | Oil Tank |
| 40 | 519000358 | Cap Ass'y |
| 70 | 861805524 | Support |
| 80 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 90 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 100 | 205561644 | Socket Screw M6 X 16, Scotch Grip |
| 110 | 224061201 | Flat Washer |
| 150 | 519000320 | Clamp |
| 160 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 300 | 414420700 | Universal Spring Clamp |
| 600a | 519000242 | Oil Filter |
| 610 | 293650099 | Oetiker Gear Clamp |
| 620 | 512061386 | Hose Guide |
| 630 | 519000352 | Spring |
| 640 | 415080700 | Polyurethane Hose (440mm) |
| 645 | 219702535 | Tube 25.4MM |
| 660 | 210261250 | Hex. Flanged Screw M6 X 12 |
| 670 | 414415200 | Universal Spring Clamp |
