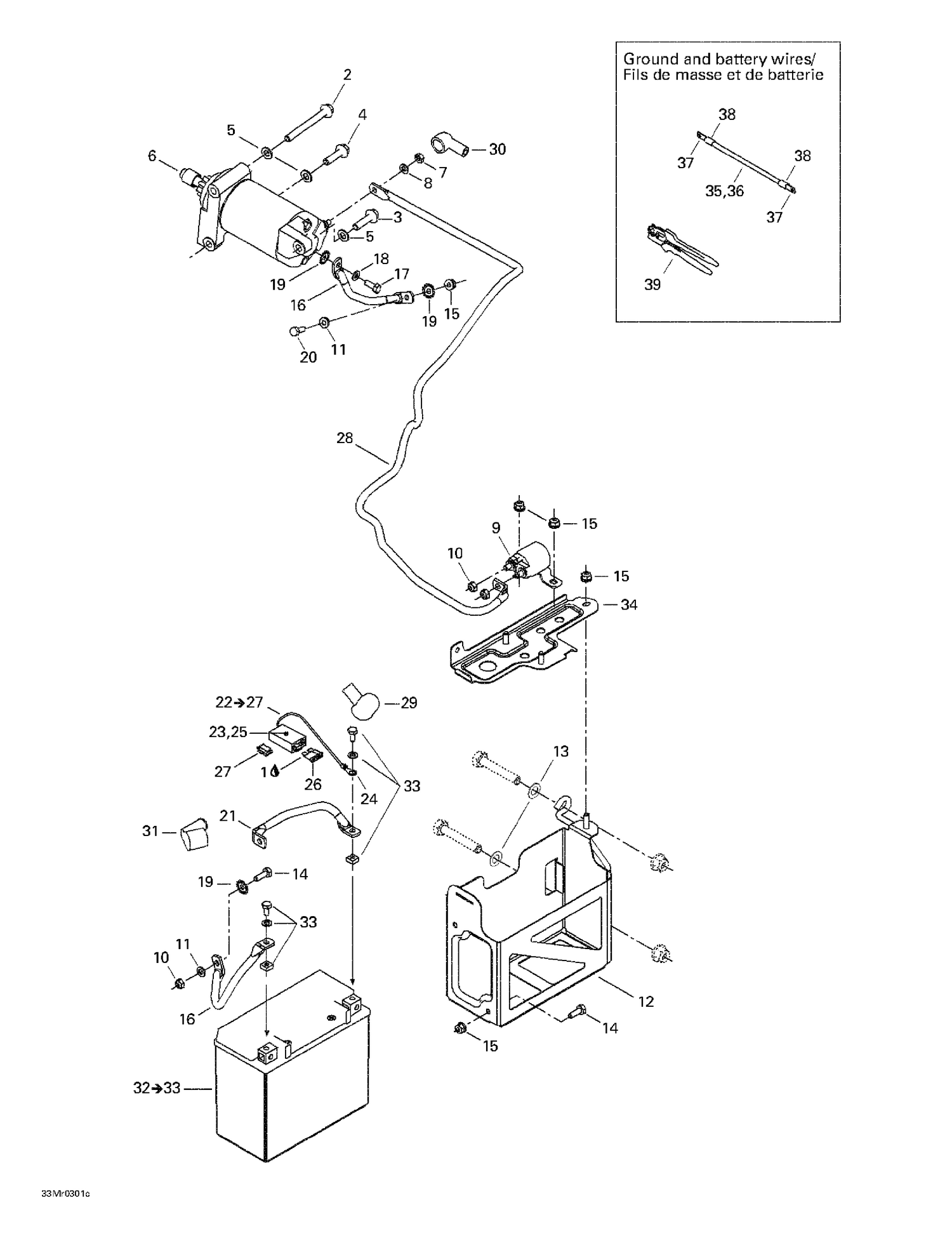

| Ref | Part Number | Description |
|---|
| 1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 5 |
250200008 |
Flat Washer With Teflon 8 mm |
| 6 |
515176133 |
Electric Starter Ass'y This part replaces 515175843. |
| 7 |
232561414 |
Elastic Stop Nut M6 |
| 8 |
234061410 |
Flat Washer 6 mm |
| 9 |
515176011 |
Starter Relay This part replaces 710000111. |
| 10 |
232561414 |
Elastic Stop Nut M6 |
| 11 |
234061410 |
Flat Washer 6 mm |
| 12 |
515175525 |
Support Battery |
| 13 |
503175800 |
Washer |
| 14 |
207161844 |
Hex. Screw M6 X 18 |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 16 |
Not |
Available As Spare Part - Ground wire |
| 17 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
| 18 |
234061410 |
Flat Washer 6 mm |
| 19 |
250200041 |
Lock Washer Serrated M6 This part replaces 250200000. |
| 20 |
207162044 |
Hex. Screw M6 X 20 |
| 21 |
Not |
Available As Spare Part - Battery wire |
| 23 |
409004200 |
Female Terminal |
| 24 |
278000992 |
Open Barrel |
| 25 |
409004000 |
Fuse Holder |
| 26 |
410917200 |
Fuse, 30 Amperes |
| 27 |
409014200 |
CLIP - Call your local BRP dealership |
| 28 |
Not |
Available As Spare Part - Battery wire |
| 29 |
570151000 |
Protection Cap |
| 30 |
278000020 |
PROTECTION CAP - Call your local BRP dealership |
| 31 |
570064200 |
PROTECTION CAP - Call your local BRP dealership |
| 33 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 34 |
515175735 |
BATTERY STRIP - Call your local BRP dealership |
| 35 |
278001680 |
Ground Cable Battery, no 6, meter) |
| 36 |
278001690 |
Cable Battery, no 6, meter) |
| 37 |
278001682 |
Terminal 45°, Small Hole |
| 38 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 278001685 |
FLAT |
TERMINAL, BIG HOLE - Call your local BRP dealership 278001685 |
| 278001685 |
Terminal |
Plate, Gros Trou - Appelez votre concessionnaire BRP local 278001685 |
| 278001688 |
FLAT |
TERMINAL - Call your local BRP dealership 278001688 |
| 278001688 |
Terminal |
Plat - Appelez votre concessionnaire BRP local 278001688 |
