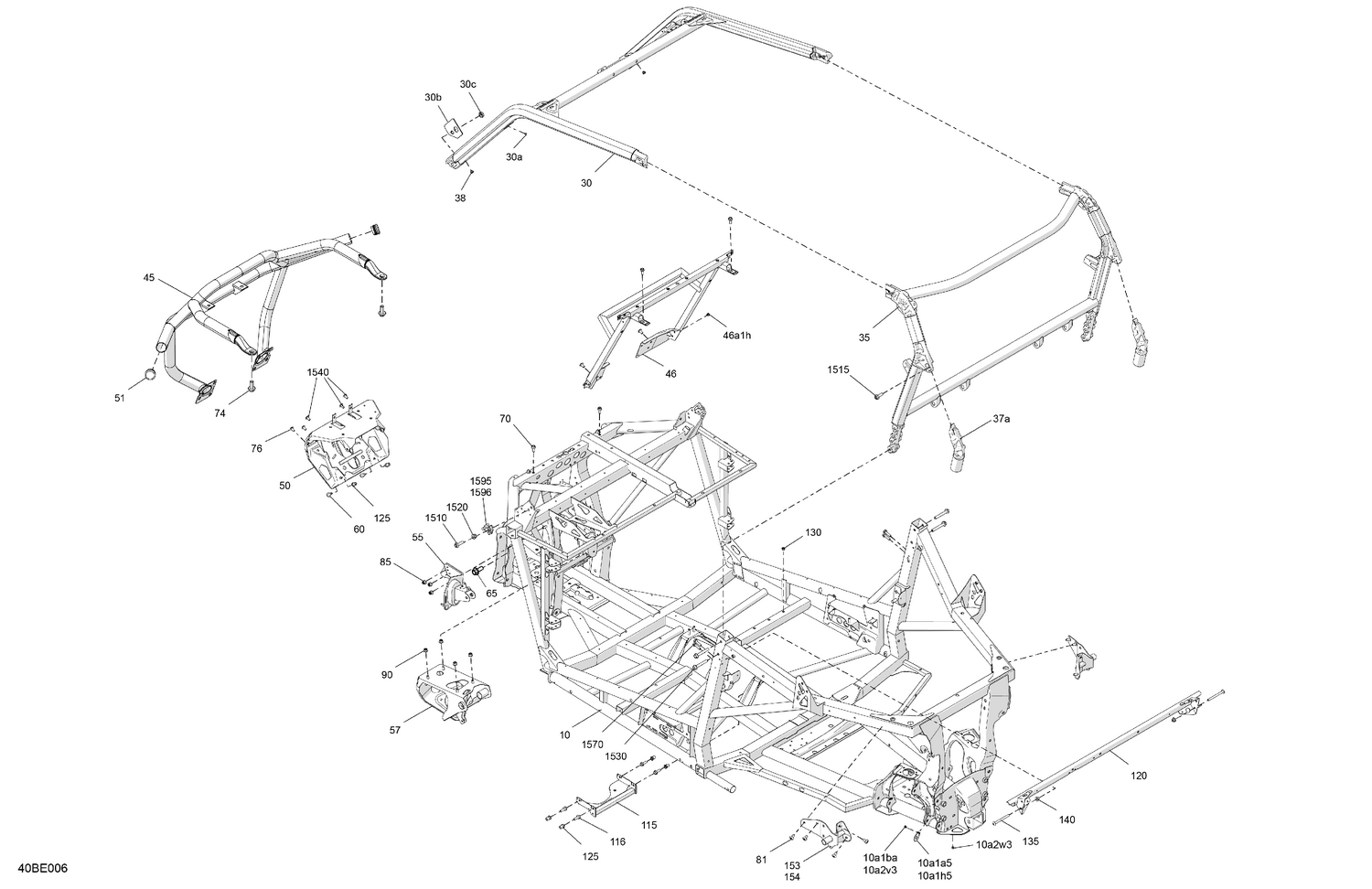

| Ref | Part Number | Description |
|---|
| 10a1a5 |
705209479 |
Shim |
| 10a1ba |
293150293 |
Pop Rivet 3/16 X ,425 |
| 10a1h5 |
705209479 |
Shim |
| 10a2v3 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 10a2w3 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 30a |
293150293 |
Pop Rivet 3/16 X ,425 |
| 30b |
705210164 |
Shim |
| 30c |
705210165 |
Bushing |
| 35 |
715009349 |
Deep Black, Rear Cage Ass'y |
| 37a |
705211464 |
Deep Black, Rear Cage Extension |
| 38 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 45 |
705209105 |
Deep Black, Front Bumper |
| 46a1h |
293150293 |
Pop Rivet 3/16 X ,425 |
| 50 |
705209043 |
Deep Black, Front Bumper |
| 51 |
705202455 |
Cap |
| 55 |
705206217 |
Brake Support |
| 57 |
705206294 |
DPS Support |
| 60 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 65 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 70 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 74 |
207523056 |
Hex. Flange Screw M12 X 30, Scotch Grip |
| 76 |
250000746 |
Torx Truss Screw M8 X 16 |
| 81 |
250000953 |
Torx Truss M/S M8 X 20 |
| 85 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 90 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 115 |
705211563 |
Bearing Support |
| 116 |
207582544 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 120 |
705209434 |
Central Tube |
| 125 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 130 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 135 |
250000806 |
Torx Truss M8 X 90 |
| 140 |
233081436 |
Hex. Flange Nut |
| 153 |
705210342 |
LH Rear Open Carrier Anchorage |
| 154 |
705210343 |
RH Rear Open Carrier Anchorage |
| 1510 |
250000855 |
Hex. Flange Screw M10 X 35 |
| 1515 |
207503056 |
Hex. Flange Screw M10 X 30 Scotch G. |
| 1520 |
233201466 |
Flange Elastic Nut M10 |
| 1530 |
207607056 |
Hex. Flange Screw M10 X 70 |
| 1540 |
250000746 |
Torx Truss Screw M8 X 16 |
| 1570 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 1595 |
705209913 |
LH Front Anchorage |
