Parts Catalog

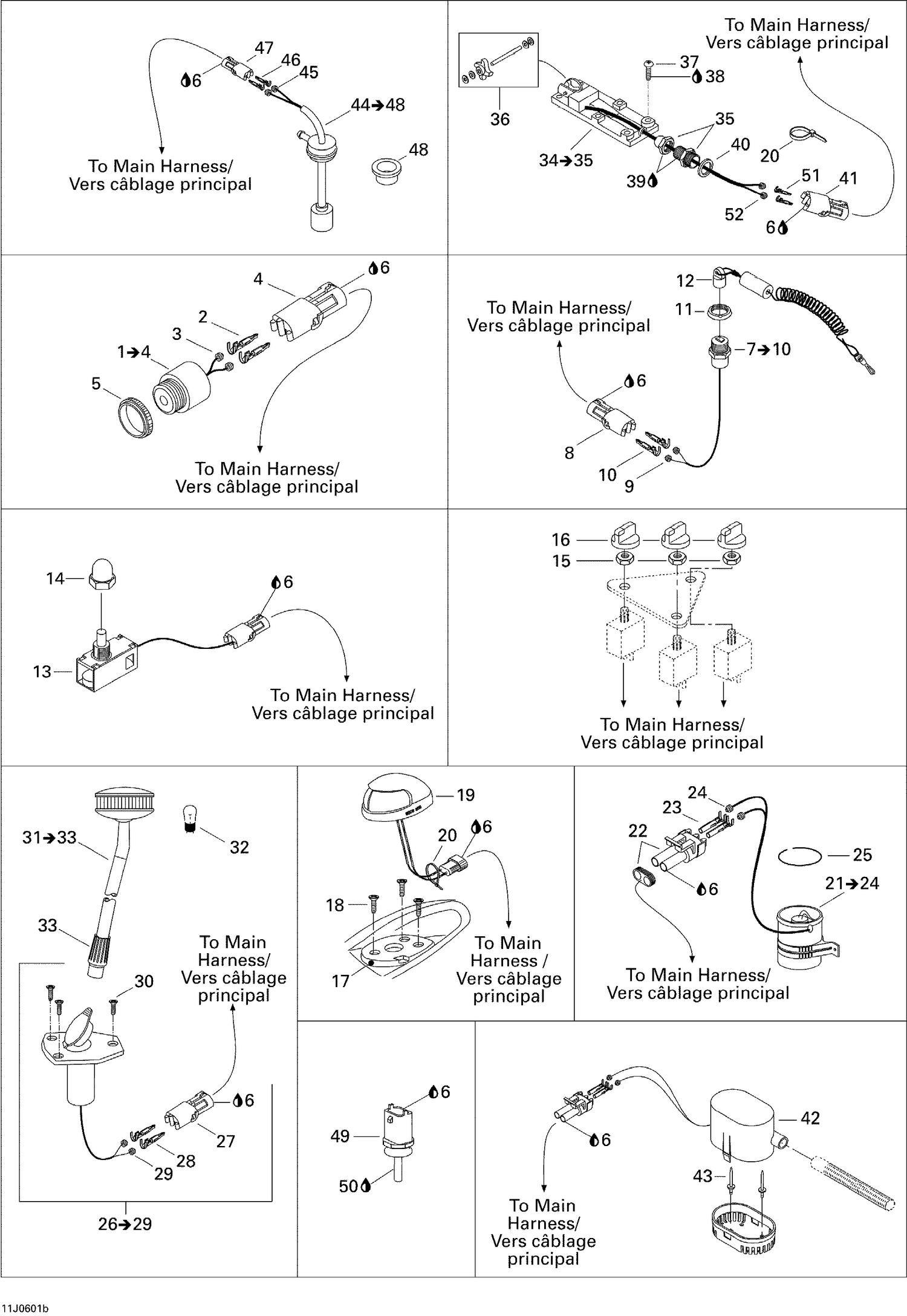

10- Electrical Accessories 2

Parts (43)

Ref	Part Number	Description
2	278000222	Male Terminal
3	278000218	Wire Seal
4	278000217	Female Housing, 2 Circuits
5	278000707	Buzzer Nut
6	219704453	Was 293550004 Dielectric Grease, 150 g
8	278000273	Male Housing, 3 Circuits
9	278000218	Wire Seal
10	278000223	Female Terminal
11	278002963	Safety Nut (DESS Switch) This part replaces 278000508.
12	278002199	Safety Lanyard, Antitheft This part replaces 278001543.
13	278000621	IGNITION SWITCH - Call your local BRP dealership
14	278000565	IGNITION SWITCH CAP, RED - Call your local BRP dealership
15	278000647	Switch Nut
16	278000542	SWITCH CAP - Call your local BRP dealership
17	204470072	FRONT LAMP SUPPORT - Call your local BRP dealership
18	209642560	PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
19	204470311	Front Lamp
20	293750001	Tie Wrap 94 mm
22	278000220	Male Connector, 2 Circuits
23	278000223	Female Terminal
24	278000218	Wire Seal
25	204000133	BROACH - Call your local BRP dealership
27	278000217	Female Housing, 2 Circuits
28	278000222	Male Terminal
29	278000218	Wire Seal
30	209943260	Phillips Tapping Screw M4.2 X 32
32	204470053	Bulb
33	204470350	COLLAR - Call your local BRP dealership
35	293710031	ELECTRIC CONNECTION - Call your local BRP dealership
36	Not	Available As Spare Part - Paddle Wheel Kit
37	208551060	PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
38	293800060	Loctite 243, 10 ml
39	296000309	Silicone Sealant 51388, 300 ml
40	278000416	SEAL WASHER - Call your local BRP dealership
41	278000217	Female Housing, 2 Circuits
42	204471431	Bilge Pump
43	293150029	RIVET_POP 5/32 - Call your local BRP dealership
45	278000218	Wire Seal
46	278000222	Male Terminal
47	278000217	Female Housing, 2 Circuits
48	293720008	Grommet
49	278002895	Temperature Sensor This part replaces 278001016.
51	278000222	Male Terminal
