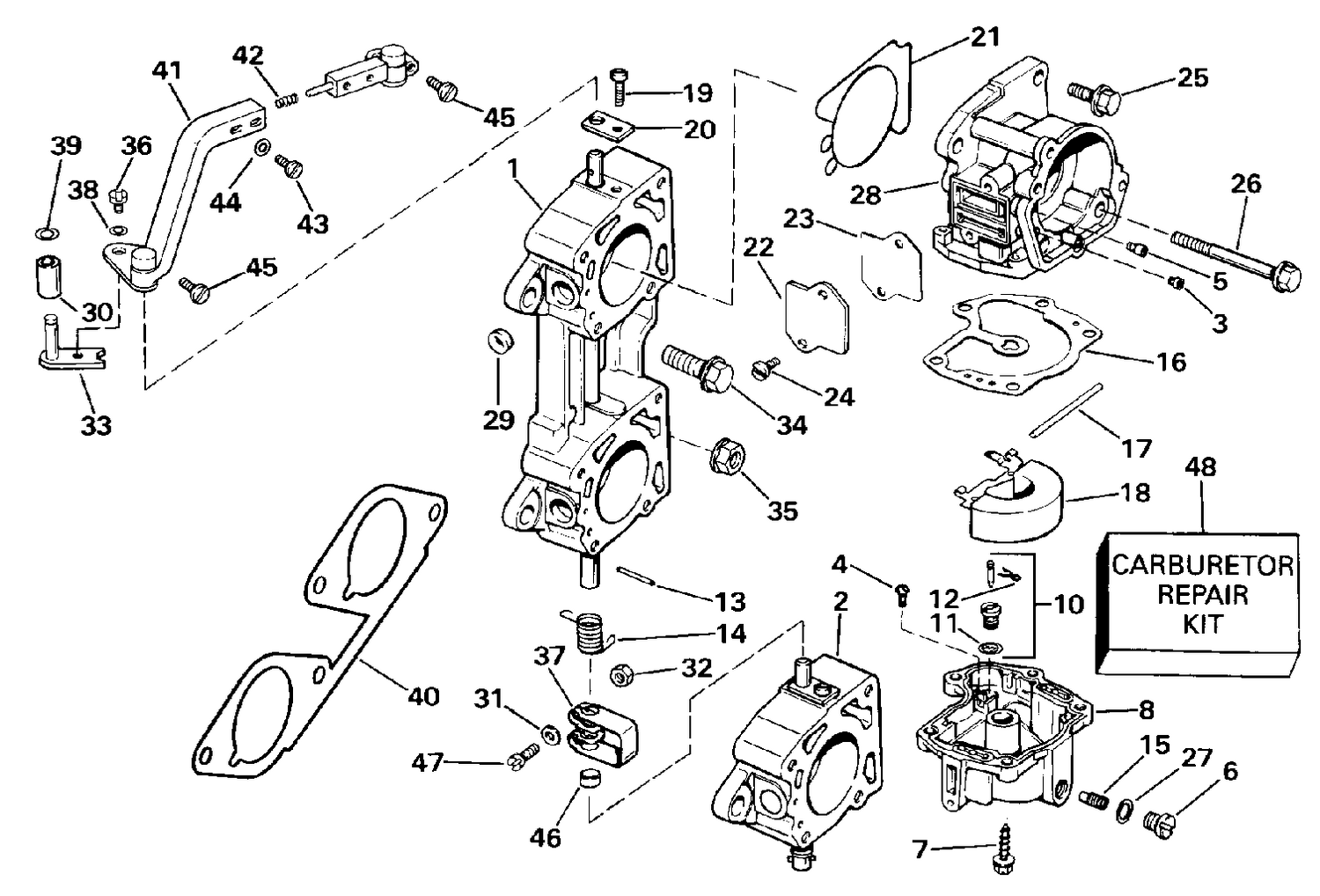

| Ref | Part Number | Description |
|---|
| 1 |
0398378 |
THROTTLE BODY, Upper, 200TX, CC |
| 1 |
0433904 |
THROTTLE BODY, Upper,. 185, 200STL, 225 |
| 2 |
0398379 |
THROTTLE BODY, Lower, 185, 200TX, CX |
| 2 |
0433905 |
THROTTLE BODY, Lower, 185, 200STL, 225 |
| 3 |
0325829 |
HIGH SPEED ORIFICE, No. 42 |
| 5 |
0327342 |
ORIFICE #46, 250 |
| 12 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 21 |
0328650 |
SEAL, Carb, body |
| 21 |
0332253 |
REAL,Carb. body, 300 |
| 22 |
0328640 |
COVER PLATE |
| 23 |
0327223 |
GASKET, Cover plate |
| 26 |
0335223 |
VIS, poignée vers capot bâbord/tribord |
| 28 |
0432510 |
CARB BODY, 200TX, CX |
| 28 |
0433906 |
CARB BODY, 185, 200STL, 225 |
| 30 |
0432639 |
GALET, contre-came |
| 33 |
0432640 |
LEVER & PIN, Cam follower |
| 35 |
0316355 |
BUT, Carburetor mounting |
| 36 |
0335739 |
SCREW, Conn. brkt. to mntg. brkt. |
| 37 |
5000533 |
CONNECTOR ASSY., Throttle shaft This part replaces 0327071. |
| 39 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 40 |
0332319 |
GASKET, Carburetor mounting |
| 41 |
0435908 |
LINK, Carburetor This part replaces 0432773. |
| 42 |
0334822 |
SPRING, Link adjustment |
| 45 |
0319108 |
SCREW BELCRANK |
| 46 |
0317162 |
BUSHING, Link |
| 48 |
0439079 |
CARB. REPAIR KIT This part replaces 0398557. |
| 0398359 |
0398359 |
CARB ASSY., Lower, 200TX, CX |
| 0398360 |
0398360 |
CARB ASSY., Upper, 200TX, CX |
| 0433562 |
0433562 |
CARB ASSY., Upper, 185, 200STL, 225 |
| 0433563 |
0433563 |
CARB ASSY., Lower, 185, 200STL, 225 |
