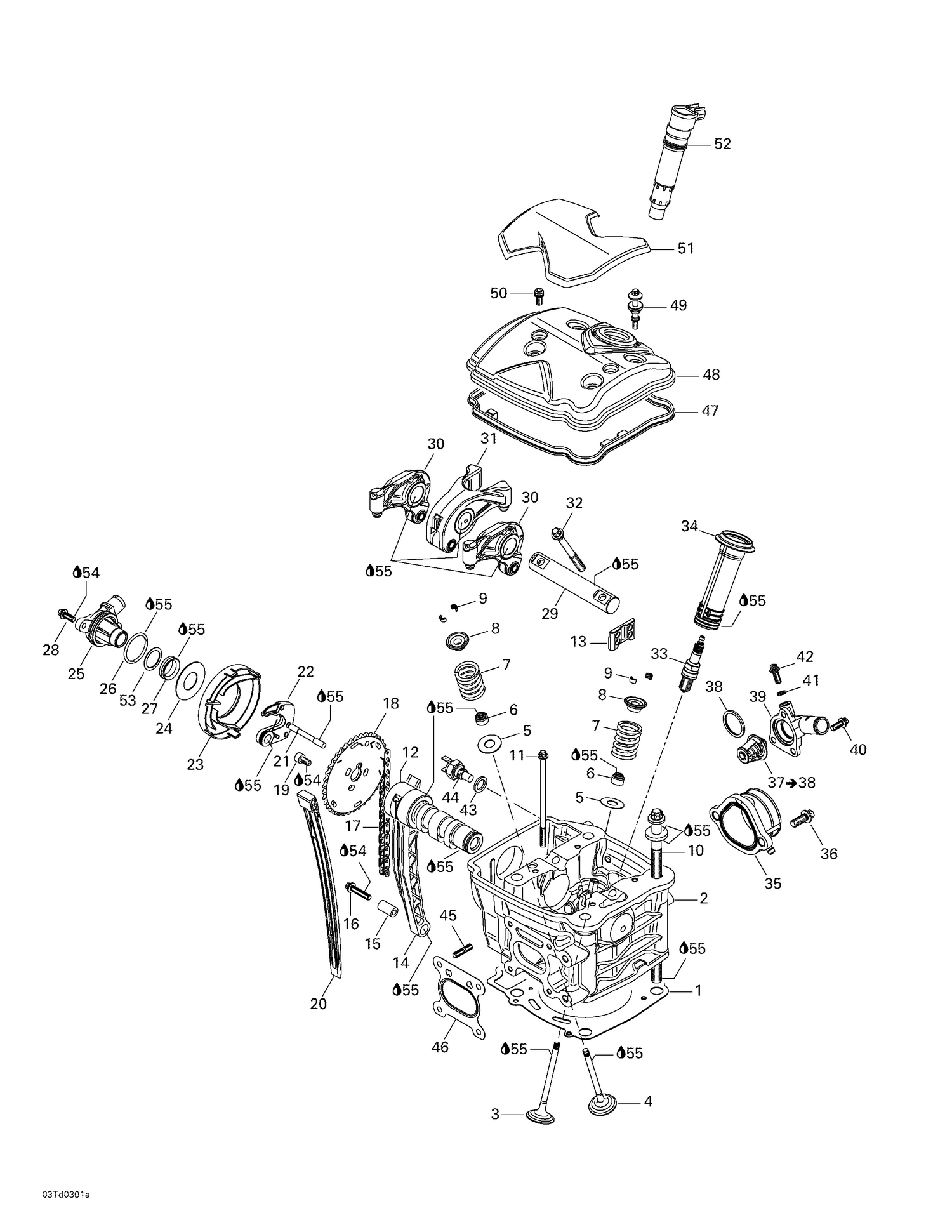

| Ref | Part Number | Description |
| 1 |
711950660 |
GASKET - Call your local BRP dealership |
| 2 |
711613476 |
Cylinder Head |
| 3 |
420253163 |
Intake Valve 38MM This part replaces 711254290. |
| 4 |
420254027 |
Exhaust Valve 31 mm This part replaces 711254027. |
| 5 |
420627525 |
Thrust Washer This part replaces 711627520. |
| 6 |
420230510 |
Seal This part replaces 711230510. |
| 7 |
420238180 |
Valve Spring This part replaces 711238180. |
| 8 |
420254283 |
Valve Spring Retainer This part replaces 711254280. |
| 9 |
420253645 |
Valve Cotter This part replaces 711253645. |
| 10 |
420641020 |
TORX SCREW M11 X 215 - Call your local BRP dealership This part replaces 711641020. |
| 11 |
711641333 |
Torx Screw M6 x 105 |
| 13 |
420851694 |
Camshaft Guide This part replaces 711851692. |
| 14 |
420236541 |
Chain Tension Guide This part replaces 711236540. |
| 15 |
711247100 |
Distance Sleeve |
| 16 |
420641258 |
Torx Flange Screw M6 X 35 This part replaces 711641253. |
| 17 |
420297957 |
Camshaft Chain This part replaces 711297957. |
| 18 |
420254309 |
Timing Gear, 38 Teeth This part replaces 711254301. |
| 19 |
420840032 |
Allen Screw M6 X 12 This part replaces 711841334. |
| 20 |
420236501 |
Chain Guide This part replaces 711236500. |
| 21 |
711220792 |
Deko Shaft |
| 22 |
711231061 |
Centrifugal Weight |
| 23 |
711660032 |
Cover |
| 24 |
711627490 |
Thrust Washer |
| 25 |
711610270 |
CAMSHAFT COVER - Call your local BRP dealership |
| 26 |
711950872 |
O-Ring |
| 27 |
420630125 |
V-Ring 20S FPM Blow By Valve This part replaces 711630125. |
| 28 |
711241751 |
Hex. Flange Screw M6 x 16 |
| 29 |
711854599 |
Rocker Arm Shaft |
| 30 |
420254329 |
Rocker Arm, Exhaust This part replaces 711254326. |
| 31 |
420254316 |
Rocker Arm, Inner This part replaces 711254315. |
| 32 |
420641080 |
Torx Screw M8 X 72 This part replaces 711641080. |
| 33 |
715900637 |
Spark Plug NGK DCPR8E This part replaces 707000246. |
| 34 |
420851754 |
Spark Plug Pipe This part replaces 711851750. |
| 35 |
420267270 |
Rubber Flange This part replaces 711267270. |
| 36 |
711641243 |
TORX FLANGE SCREW M8 X 25 - Call your local BRP dealership |
| 38 |
420650300 |
Thermostat Gasket This part replaces 711650300. |
| 39 |
711222660 |
Thermostat Cover |
| 40 |
711641043 |
Torx Flange Screw M6 x 16 |
| 41 |
404146600 |
Sealing Washer |
| 42 |
711641043 |
Torx Flange Screw M6 x 16 |
| 43 |
420250640 |
Copper Washer This part replaces 711250640. |
| 44 |
420897938 |
Temperature Switch This part replaces 711897939. |
| 45 |
711240010 |
Stud M6 x 16 |
| 46 |
711950680 |
Gasket |
| 47 |
420630071 |
Sealing Ring This part replaces 711630070. |
| 48 |
711610185 |
Valve Cover |
| 49 |
420440561 |
Allen Screw M6 x 30,5 This part replaces 711641269. |
| 50 |
420641488 |
TORX SCREW M6 X 8 - Call your local BRP dealership This part replaces 711641483. |
| 51 |
711660200 |
Valve Cover |
| 52 |
711664025 |
Ignition Coil |
| 53 |
420227440 |
THRUST WASHER - Call your local BRP dealership This part replaces 711227440. |
| 54 |
293800060 |
Loctite 243, 10 ml |
