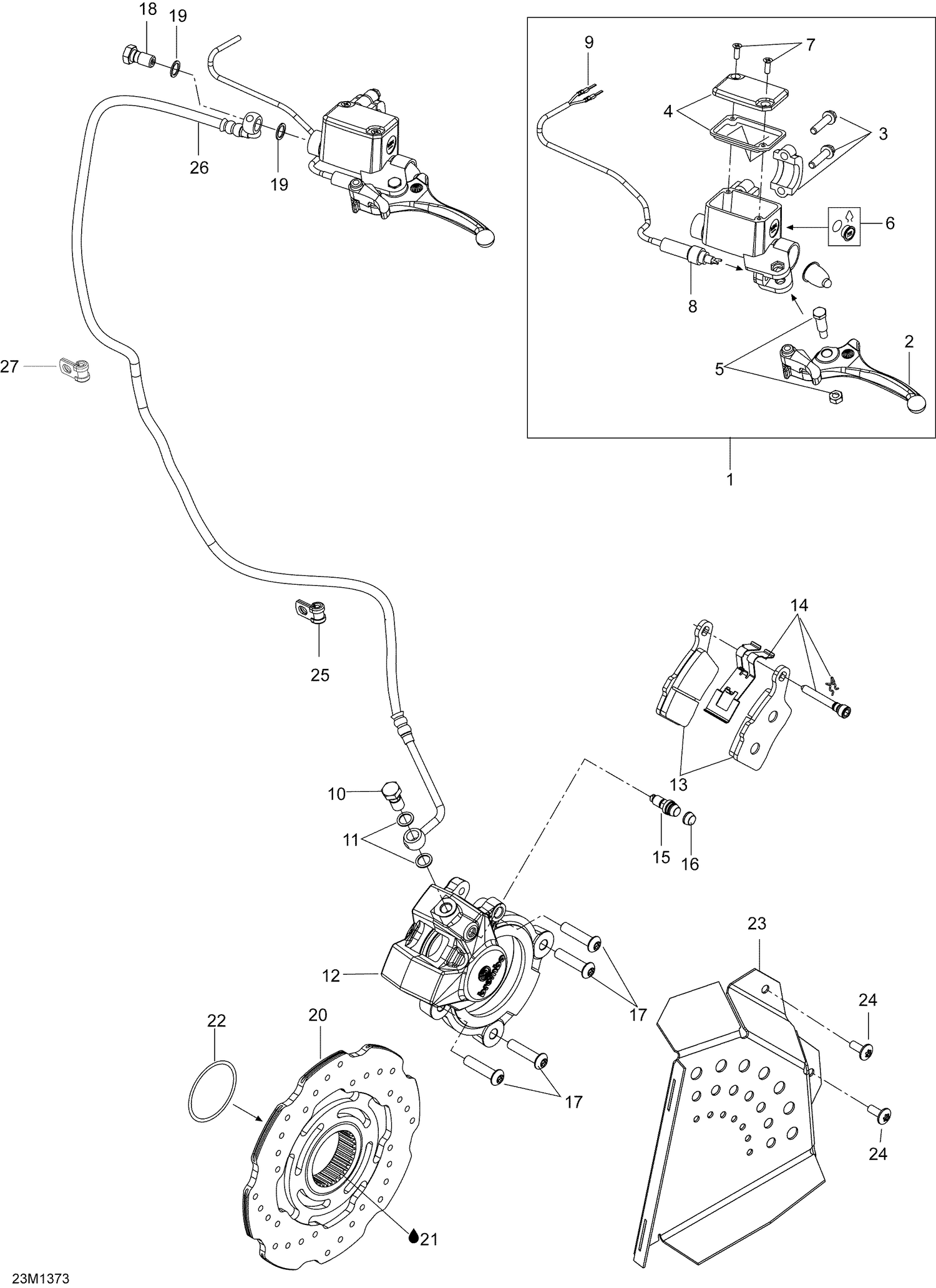

| Ref | Part Number | Description |
|---|
| 1 |
507032598 |
Master Cylinder Ass'y This part replaces 507032518. |
| 2 |
507032476 |
Lever With Parking Lock |
| 3 |
507032477 |
Clamp And Screw Kit |
| 4 |
507032478 |
Master Cylinder Reservoir Ass'y |
| 5 |
415030000 |
Pin Ass'y |
| 6 |
Not |
Available As Spare Part - Window |
| 7 |
216141260 |
SCREW M4 X 12 - Call your local BRP dealership |
| 8 |
507032479 |
Microswitch |
| 9 |
515175232 |
Male Terminal |
| 10 |
507032551 |
Banjo Bolt This part replaces 507032539. |
| 11 |
705601628 |
Copper Washer This part replaces 705600310. |
| 12 |
507032720 |
Brake Caliper This part replaces 507032498. |
| 13 |
507032489 |
Brake Pads Kit |
| 14 |
507032722 |
Brake Spring Kit This part replaces 507032474. |
| 15 |
Not |
Available As Spare Part - Bleeder |
| 16 |
Not |
Available As Spare Part - Boot |
| 17 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 This part replaces 250000301. |
| 18 |
507032551 |
Banjo Bolt This part replaces 507032539. |
| 19 |
705601628 |
Copper Washer This part replaces 705600310. |
| 20 |
507032513 |
Disk |
| 21 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 22 |
293300134 |
O-Ring |
| 23 |
507032525 |
Disk Protector |
| 24 |
250000365 |
Torx Screw M6 X 16 |
| 25 |
293650256 |
Clamp This part replaces 705600459. |
| 26 |
507032538 |
BRAKEHOSE XU, STEEL BRAIDED - Call your local BRP dealership |
