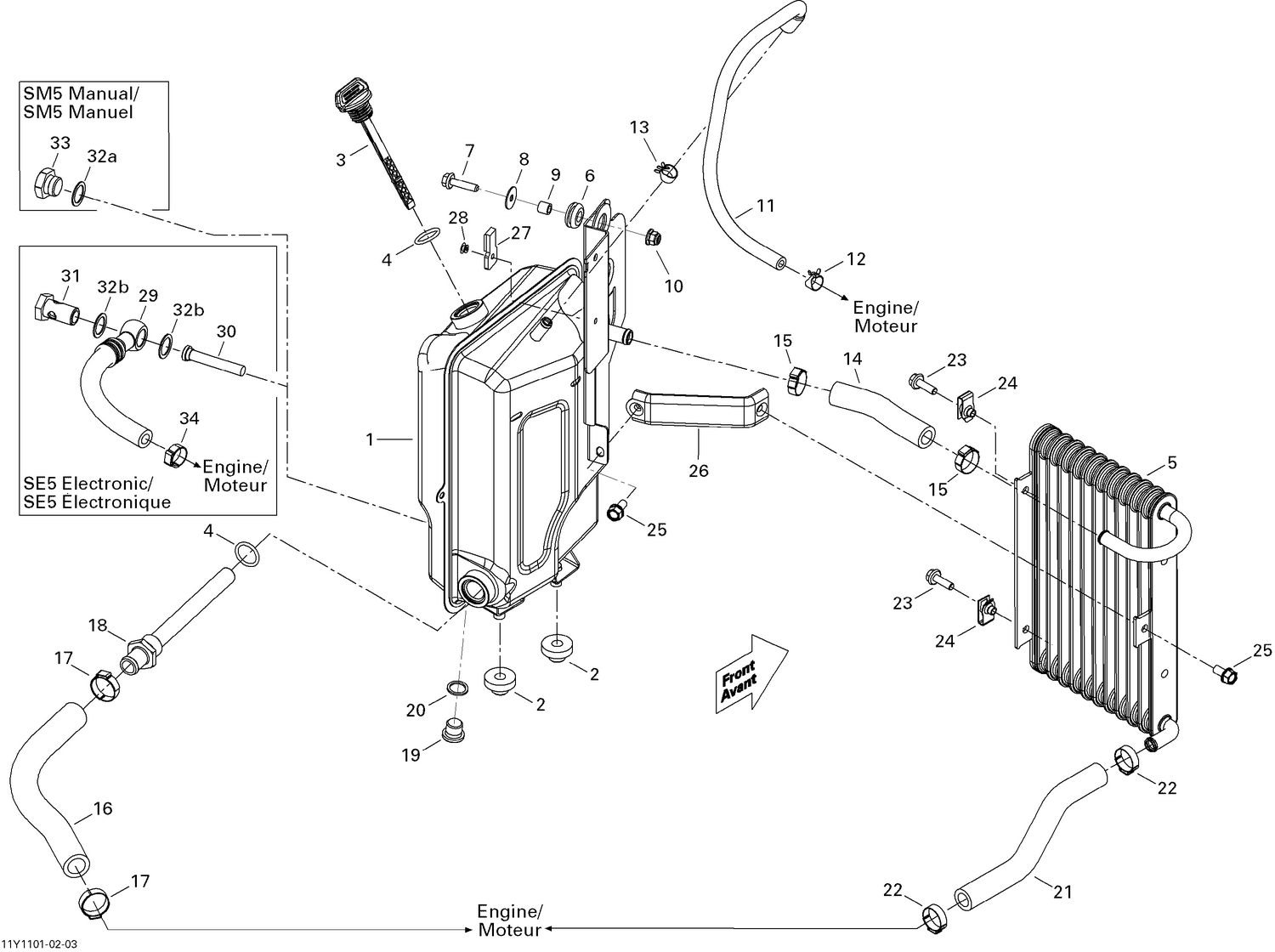

02- Oil System SE5
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000246 | OIL TANK - Call your local BRP dealership |
| 2 | 709200285 | Grommet |
| 3 | 519000155 | Oil Cap |
| 4 | 709000218 | O-Ring |
| 5 | 519000123 | OIL RADIATOR - Call your local BRP dealership |
| 6 | 709000582 | Grommet This part replaces 293720053. |
| 7 | 207662544 | Hex. Flange Screw M6 X 25 |
| 8 | 224060201 | Flat Washer |
| 9 | 293900105 | Bushing This part replaces 293900045. |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 519000208 | Formed Hose |
| 12 | 414415200 | Spring Clamp |
| 13 | 414655700 | Spring Clamp |
| 15 | 293650186 | Oetiker Clamp |
| 17 | 509000552 | Gear Clamp |
| 18 | 519000219 | Strainer |
| 19 | 705500504 | Fill Level Plug |
| 20 | 705500506 | Copper Washer |
| 22 | 293650186 | Oetiker Clamp |
| 23 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 24 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 25 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 26 | 519000175 | RADIATOR SUPPORT - Call your local BRP dealership |
| 32a | XXX | Not Available As Spare Parts |
| 33 | XXX | Not Available As Spare Parts |
