Home / BRP / EVINRUDE / 1994 / 185 / 05- Drive System X

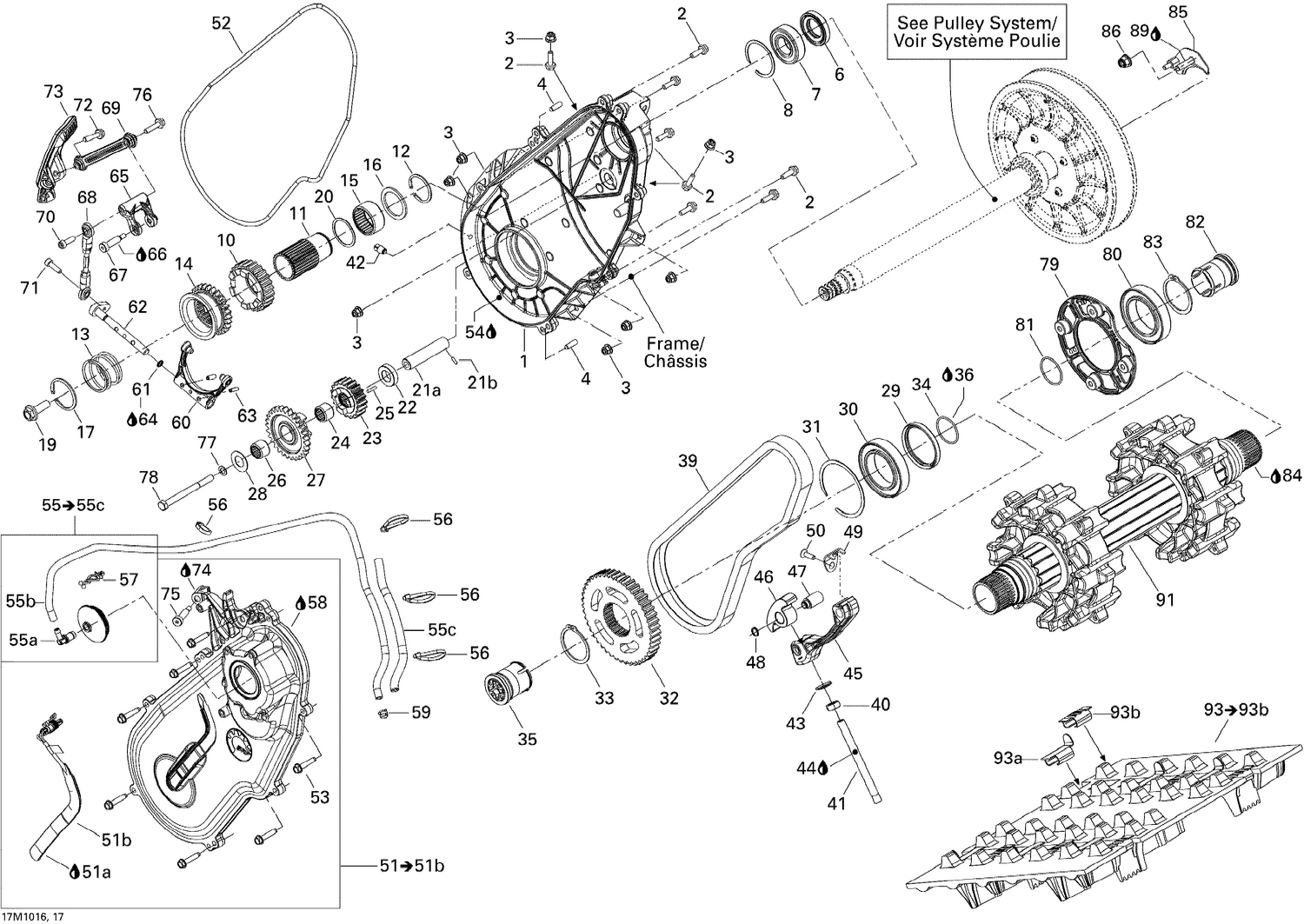

05- Drive System X

05- Drive System X

Parts (83)

RefPart NumberDescription
2 207662034 Hex. Flange Screw M6 X 20
3 233261434 Flange Elastic Nut M6
4 250400048 Dowel Pin
6 293200158 Oil Seal This part replaces 415049300.
7 293350115 Ball Bearing This part replaces 293350055.
8 504152576 Circlip
11 504152979 Coupling
12 293370054 Circlip
13 504153179 Spring Release This part replaces 504152899.
14 504152960 Slinding Gear, 27 Teeth
15 293350063 Needle Bearing
16 504152689 Washer
17 293370055 Circlip
19 207503044 Hex. Screw M10 X 1.5 X 30
20 504152862 Washer
21a 504083100 Reverse Shaft
21b 250400010 Rolled Pin M3 X 10
22 504078700 Ring
23 581096900 Sprock Ass'y, 19 Teeth
24 293350064 Needle Bearing
25 570048600 Alignement Rod
26 293350064 Needle Bearing
27 504152724 Sprocket, 29 Teeth
28 504077300 Spacer
29 293200159 Oil Seal This part replaces 504152571.
30 293350059 Ball Bearing This part replaces 504152573.
31 504152582 Circlip
33 504152572 Circlip
34 293300122 O-Ring
35 504152619 Magnetic Cap
36 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
40 232006414 Hex. Nut M10 X 1.5
41 504152602 Adjustment Screw
43 250200100 Bonded Washer
44 413803300 SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
45 504153431 Chaine Tensionner This part replaces 504152748.
46 504152739 Slider Chain
47 504152841 Tensioner Axle
48 504152282 Circlip
49 504153122 Chain Slider This part replaces 504152722.
50 205862044 Socket Head Screw M6 X 20, Scotch Grip
51a 219704460 Was 293800066 Sealant Loctite 5900, 300 ml
51b 504152896 Rotation Sensor
52 293300130 Tight Seal
54 413803300 SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
55 504152860 Cap
55a 414580700 Male Connector
55b 219704410 Polyurethane Hose 10000Mm Long
55c 504153074 Tube Protector This part replaces 504152900.
56 293750002 Tie Wrap 142 mm
57 291000714 ATTACHE *BRACKET - Call your local BRP dealership
58 413803300 SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
59 414554800 Spring Clamp
60 504153432 Fork Ass'y This part replaces 504152954.
61 414484400 O-Ring
62 504152956 Welded Axle Fork
63 250400045 Spring Pin M5 X 16
64 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
65 504153427 Lever This part replaces 504152788.
66 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
67 250000340 SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership
68 504152951 Ball Joint
69 504152710 Double Ball Joint
70 205562044 Socket Head Screw M6 X 20, Scotch Grip
71 205562044 Socket Head Screw M6 X 20, Scotch Grip
72 207562544 Hex. Flange Screw M6 X 25
73 504153082 Grip This part replaces 504152972.
74 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
75 250000340 SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership
76 207562544 Hex. Flange Screw M6 X 25
77 504082900 Washer
78 207089044 Hex. Screw M8 X 90
79 504153886 Retaining Ring This part replaces 504152949.
80 293350059 Ball Bearing
81 293300122 O-Ring
82 504152619 Magnetic Cap
83 504152572 Circlip
84 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
85 504153418 Bearing Housing Ass'y This part replaces 504152974.
86 233281414 Hex. Flange Elastic Nut M8
89 219704461 LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
91 504154054 Drive Axle Ass'y This part replaces 415129446.
93a 415129528 Track Guide This part replaces 504152410.
