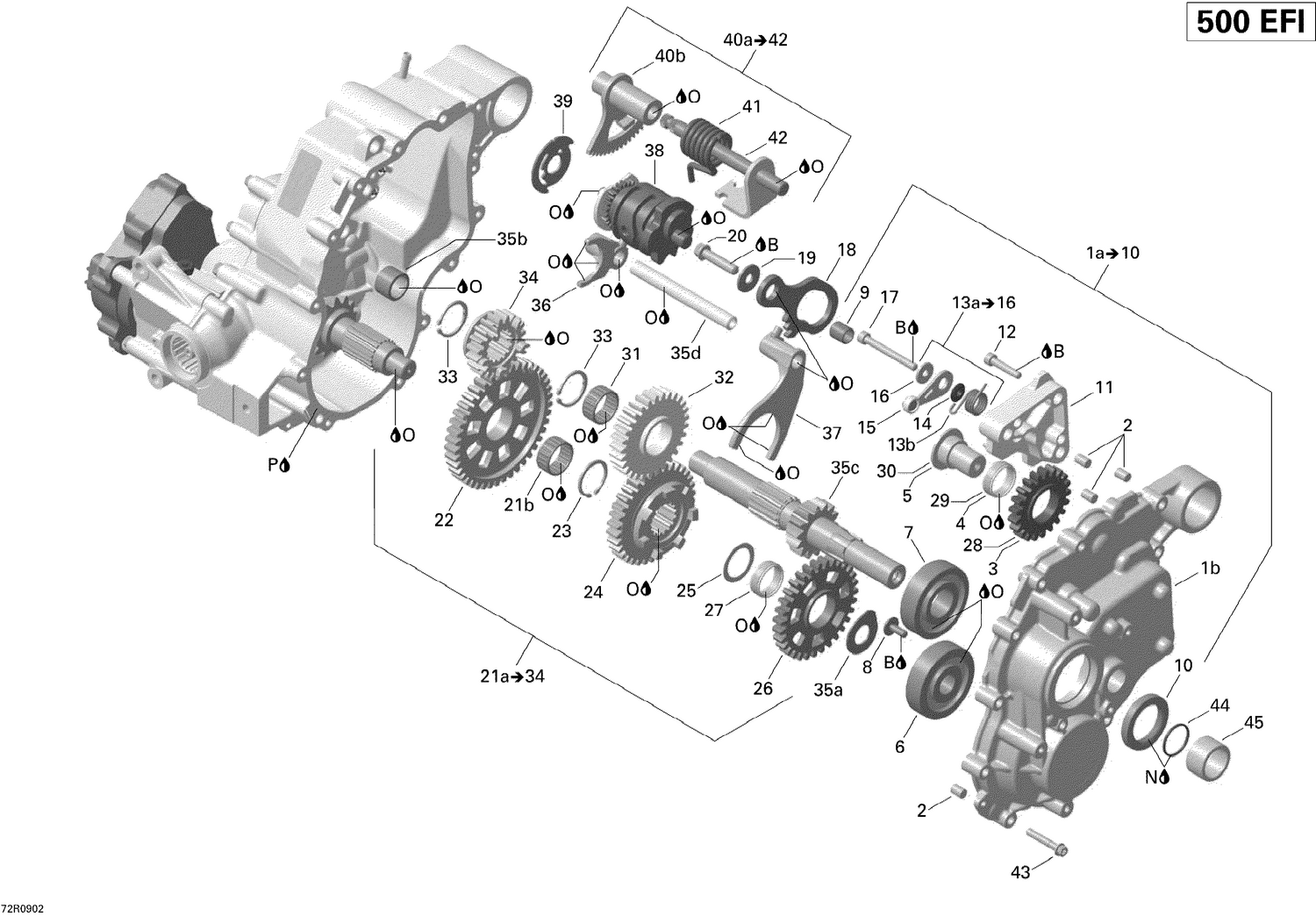

01- Gear Box And Components

01- Gear Box And Components

Parts (51)

RefPart NumberDescription
B 293800060 Loctite 243, 10 ml
N 293550030 Grease, Super Lube
O Not Available As Spare Part - Engine Oil
1b Not Available As Spare Part - LH Gear Housing
2 420632010 Center Pin 8 X 12
3 Not Available As Spare Part - Intermediate Gear, 21 Teeth
4 420232654 Needle Bearing This part replaces 420232652.
5 Not Available As Spare Part - Intermediate Gear Shaft
6 420632295 Ball Bearing This part replaces 420632290.
7 420932822 Ball Bearing This part replaces 420932825.
8 420241522 Torx Screw M6 X 16 This part replaces 420241529.
9 Not Available As Spare Part - Bushing
10 420950089 Oil Seal This part replaces 420950087.
11 420611451 Support This part replaces 420611450.
12 205063044 Socket Head Screw M6 X 30
13b Not Available As Spare Part - Index Spring
14 Not Available As Spare Part - Step Ring
15 Not Available As Spare Part - Index Level
16 Not Available As Spare Part - Washer
17 420240332 Allen Screw M6 X 55 This part replaces 420240331.
18 703501128 Kit Parking Lock Lever Assembly This part replaces 420257652.
19 420227937 Plain Washer
20 420641188 Torx Flange Screw M8 X 35
21b 420632070 Needle Bearing
22 Not Available As Spare Part - Pinion Gear, 43 Teeth
23 420845772 Retaining Ring This part replaces 420845771.
24 Not Available As Spare Part - Pinion Gear, 35 Teeth
25 420427011 Thrust Washer This part replaces 420944479.
26 Not Available As Spare Part - Pinion Gear, 31 Teeth
27 420232654 Needle Bearing This part replaces 420232652.
28 Not Available As Spare Part - Intermediate Gear, 21 Teeth
29 420232654 Needle Bearing This part replaces 420232652.
30 Not Available As Spare Part - Intermediate Gear Shaft
31 420632070 Needle Bearing
32 Not Available As Spare Part - Pinion Gear, 29 Teeth
33 420845772 Retaining Ring This part replaces 420845771.
34 Not Available As Spare Part - Pinion Gear, 20 Teeth
35a 420281302 Thrust Washer Set, CVT Side This part replaces 420281308.
35b Not Available As Spare Part - Needle Bushing
35c Not Available As Spare Part - Countershaft
35d 420258383 Fork Spindle This part replaces 420258381.
36 420657311 Shifting Fork This part replaces 420257611.
37 420657321 Shifting Fork This part replaces 420257621.
38 703501128 Kit Parking Lock Lever Assembly This part replaces 420257578.
39 420626092 Isolating Washer This part replaces 420626091.
40b Not Available As Spare Part - Transfert Gear
41 Not Available As Spare Part - Spring
42 Not Available As Spare Part - Shift Shaft
43 420641258 Torx Flange Screw M6 X 35
44 420631612 O-Ring This part replaces 420631610.
45 420247118 Distance Ring This part replaces 420247117.
