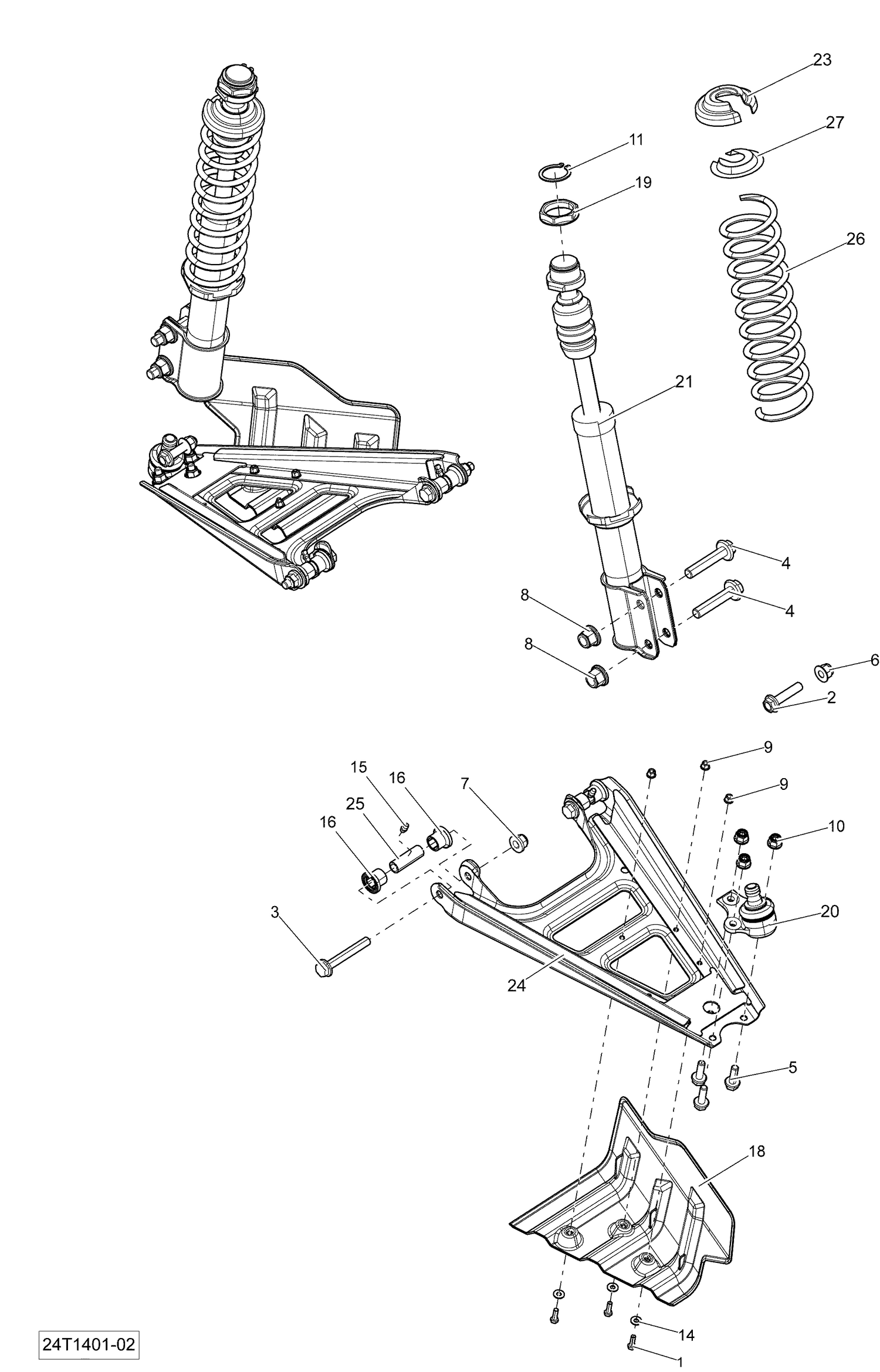

07- Front Suspension
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207151644 | Hex. Screw M5 X 16 |
| 2 | 207604544 | HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership |
| 3 | 207607046 | Hex. Flange Screw M10 X 70 |
| 4 | 207626046 | Hex. Flange Screw M12 X 60 |
| 5 | 207682544 | Hex. Flange Screw M8 X 25 |
| 6 | 233201414 | Hex. Flange Elastic Nut M10 |
| 7 | 233201436 | Hex. Flange Elastic Nut M10 |
| 8 | 233221414 | Hex. Flange Elastic Nut M12 |
| 9 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 293370009 | Circlip 32 mm |
| 14 | 250200081 | FLAT WASHER - Call your local BRP dealership |
| 15 | 408200700 | Grease Fitting |
| 16 | 706200181 | Bushing |
| 18 | 706200213 | LH PROTECTOR - Call your local BRP dealership |
| 18 | 706200214 | RH PROTECTOR - Call your local BRP dealership |
| 19 | 706200443 | NUT - Call your local BRP dealership |
| 20 | 706200444 | Joint Attachment |
| 21 | 706200658 | Front Shock |
| 23 | 706200882 | STOPPER SPRING - Call your local BRP dealership |
| 24 | 706205905 | Suspension Arm This part replaces 706201050. |
| 25 | 706201587 | Sleeve |
