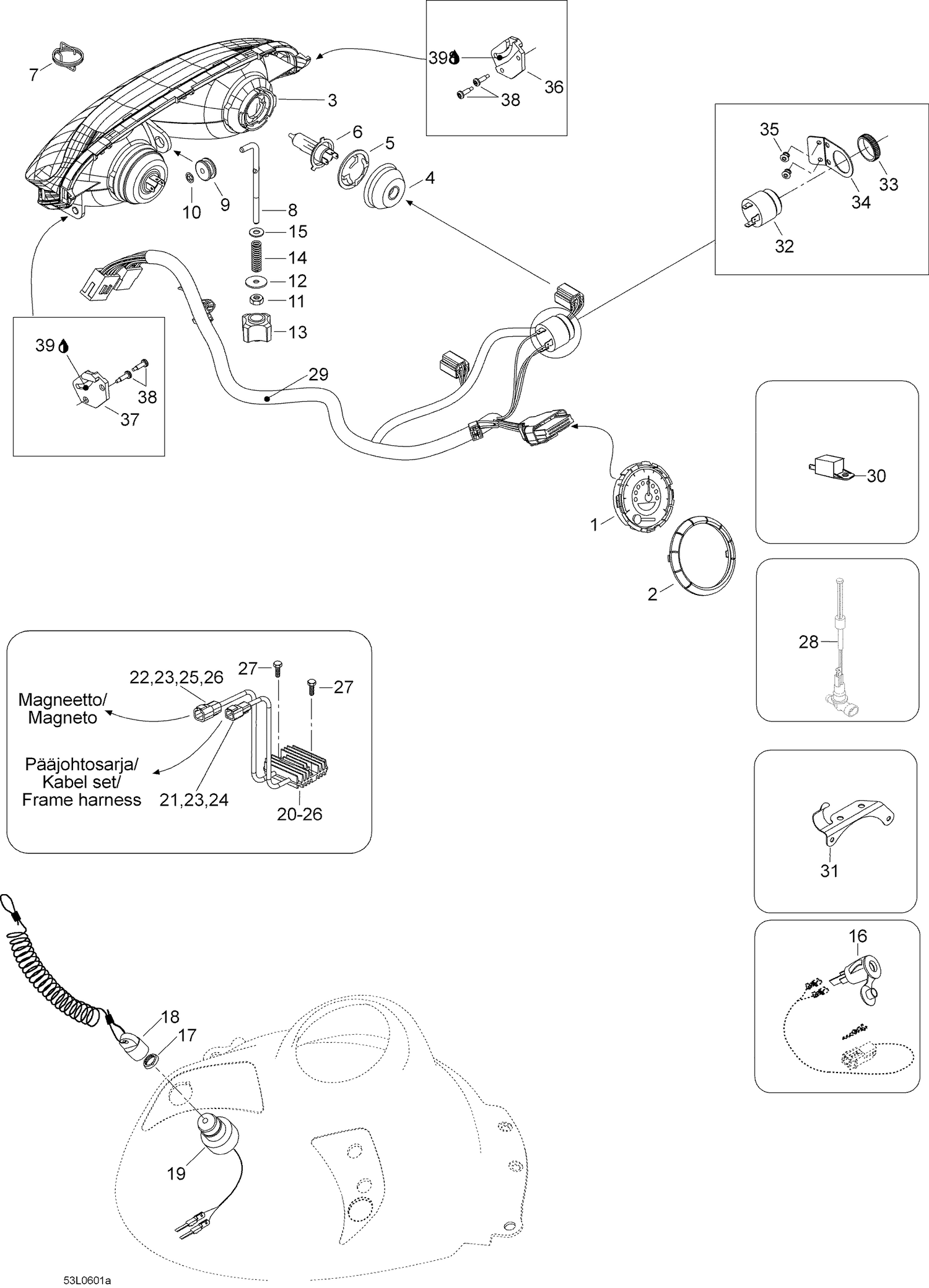

| Ref | Part Number | Description |
|---|
| 1 |
515176301 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515175651. |
| 4 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 5 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 6 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 7 |
5447238 |
Spring |
| 8 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 9 |
415100800 |
Grommet - Call your local BRP dealership |
| 10 |
732610072 |
Push Nut |
| 11 |
515175548 |
Handle - Call your local BRP dealership |
| 12 |
20038 |
Washer |
| 13 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 14 |
415100600 |
SPRING - Call your local BRP dealership |
| 15 |
20003 |
Washer A6,4 |
| 16 |
42026 |
Flush mounted socket1 |
| 17 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 18 |
515178284 |
Dess. This part replaces 515166900. |
| 19 |
515177249 |
DESS Switch This part replaces 515175797. |
| 21 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 22 |
278001674 |
Male Terminal Housing, 2 Circuits |
| 23 |
515175568 |
Female Terminal |
| 24 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 25 |
278001672 |
Male Lock, 2 Circuits |
| 26 |
293000052 |
Sealing Cap |
| 27 |
40867 |
Self taåpping screw M6 x 30 |
| 28 |
605452095 |
OIL SENSOR - Call your local BRP dealership |
| 29 |
605348931 |
Wiring harness, headlamp |
| 30 |
710010053 |
RELAY This part replaces 410113200. |
| 31 |
515175254 |
Cable support |
| 32 |
515176035 |
HORN - Call your local BRP dealership |
| 33 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 34 |
5447941 |
HORN SUPPORT - Call your local BRP dealership |
| 35 |
36005 |
Rivet |
| 36 |
517289300 |
R.H. Headlamp support |
| 37 |
517289400 |
L.H. headlamp support |
| 38 |
40177 |
Screw B4,8 x 16 |
