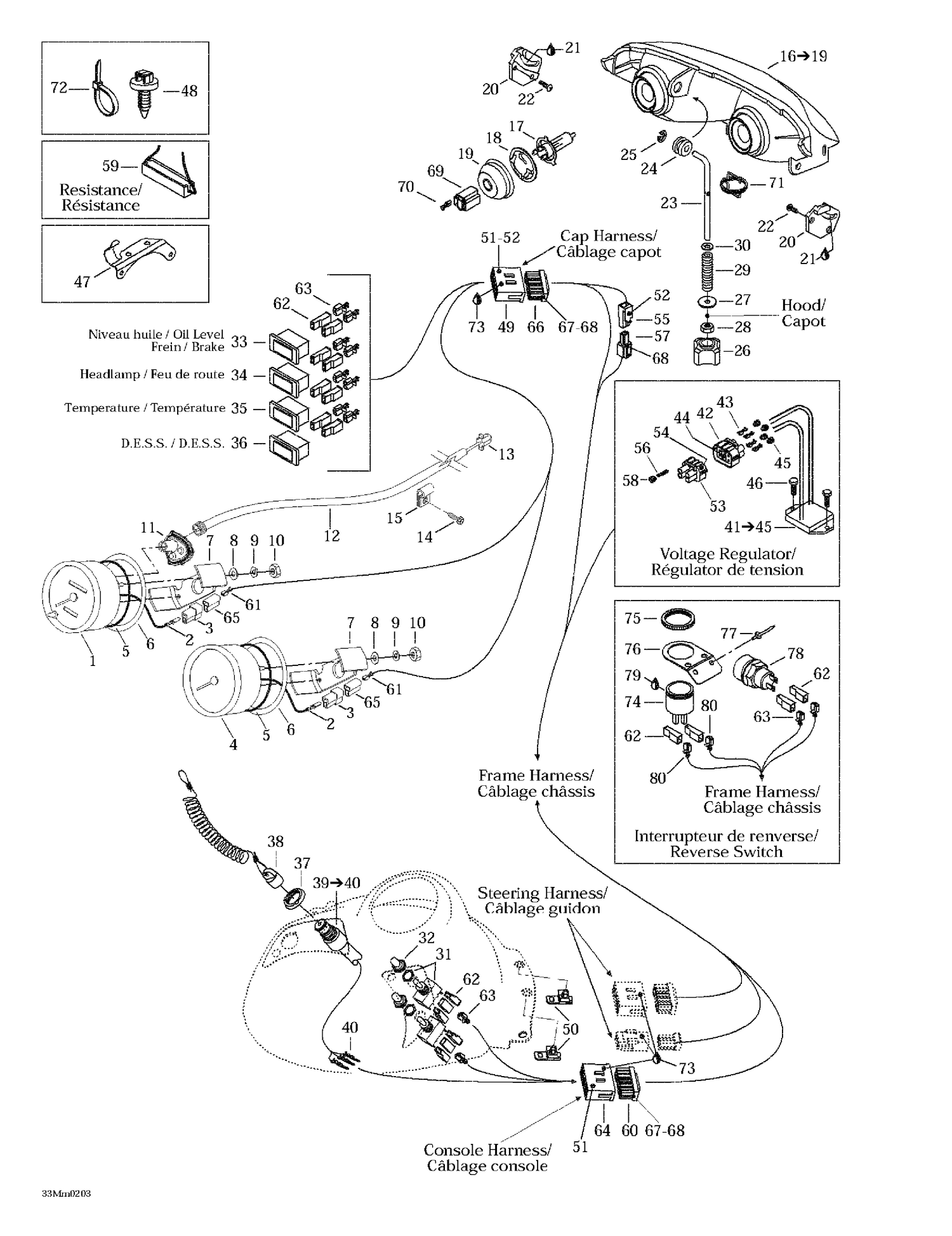

| Ref | Part Number | Description |
|---|
| 1 |
515175335 |
Speedometer, Kmh |
| 2 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 3 |
409204500 |
MALE HOUSING - Call your local BRP dealership |
| 4 |
515175341 |
Tachometer |
| 5 |
414807100 |
O-Ring |
| 6 |
517258500 |
Washer |
| 7 |
414806500 |
Case Holder |
| 8 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 9 |
414806700 |
Lock Washer |
| 10 |
414806900 |
Nut |
| 11 |
515175400 |
Drive Angle |
| 12 |
415101500 |
Speedometer Cable |
| 13 |
572010100 |
SPEEDO DRIVE INSERT - Call your local BRP dealership |
| 14 |
Not |
Available As Spare Part - Hex. Tapping Screw #12 x 1/2" |
| 15 |
414176000 |
Open Clamp |
| 17 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410504401. |
| 18 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 19 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 20 |
517289300 |
RH Support |
| 21 |
413707500 |
Grease Tube Lmz, 400 G |
| 22 |
732601315 |
Headlamp Screw |
| 23 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 24 |
415100800 |
Grommet - Call your local BRP dealership |
| 25 |
732610072 |
Push Nut |
| 26 |
515175548 |
Handle - Call your local BRP dealership |
| 27 |
224060251 |
Washer |
| 28 |
232561414 |
Elastic Stop Nut M6 |
| 29 |
415100600 |
SPRING - Call your local BRP dealership |
| 30 |
234061410 |
Flat Washer 6 mm |
| 31 |
410107300 |
Switch (Heating Grip) |
| 32 |
515175281 |
Switch Cover |
| 33 |
515175728 |
PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership |
| 34 |
515175726 |
PILOT LAMP, HEADLAMP - Call your local BRP dealership |
| 35 |
515175727 |
PILOT LAMP - Call your local BRP dealership |
| 36 |
515175729 |
Pilot Lamp (Reverse/D.E.S.S.) |
| 37 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 38 |
515178284 |
DESS This part replaces 515166900. |
| 40 |
515175232 |
Male Terminal |
| 42 |
409208000 |
Female Terminal Housing (4 circuits) |
| 43 |
278000994 |
FEMALE TERMINAL - Call your local BRP dealership |
| 44 |
409013400 |
Female Lock |
| 45 |
278000996 |
WIRE SEAL - Call your local BRP dealership |
| 46 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 47 |
515175254 |
Cable Support |
| 48 |
293730040 |
Mount Dart This part replaces 293730018. |
| 49 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 50 |
515175283 |
Housing Support |
| 51 |
515175232 |
Male Terminal |
| 52 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 53 |
409207700 |
Male Terminal Housing (4 circuits) |
| 54 |
409013100 |
Male Lock |
| 55 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 56 |
409010900 |
Male Terminal |
| 57 |
515175510 |
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 58 |
278001223 |
Seal |
| 59 |
515175241 |
Resistance |
| 60 |
515175349 |
FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 61 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 62 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 63 |
409010100 |
Female Terminal |
| 64 |
515175351 |
MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership |
| 65 |
409204600 |
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| 66 |
515175350 |
Female Terminal Housing, 13 Circuits |
| 67 |
515175231 |
Female Terminal |
| 68 |
515175282 |
Female Terminal |
| 69 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 70 |
515175320 |
FEMALE TERMINAL - Call your local BRP dealership |
| 72 |
293750001 |
Tie Wrap 94 mm |
| 73 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 74 |
515176035 |
HORN - Call your local BRP dealership This part replaces 415060900. |
| 75 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 76 |
515175688 |
PLATE - Call your local BRP dealership |
| 77 |
390402200 |
Pop Rivet 3/16" |
| 78 |
415130372 |
Push Button This part replaces 415101200. |
| 79 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 80 |
409010600 |
FEMALE TERMINAL - Call your local BRP dealership |
| 81 |
515175635 |
Frame Harness (Not Shown) |
| 82 |
515175147 |
Console Harness (Not Shown) |
| 293750002 |
Tie |
Wrap 142 mm 293750002 |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
| 515175336 |
Indicateur |
De Vitesse, Mph 515175336 |
| 515175336 |
Speedometer, |
Mph 515175336 |
| 515175730 |
Pilot |
Lamp (DESS) 515175730 |
| 517289400 |
LH |
Support 517289400 |
| 517289400 |
Support |
GA 517289400 |
