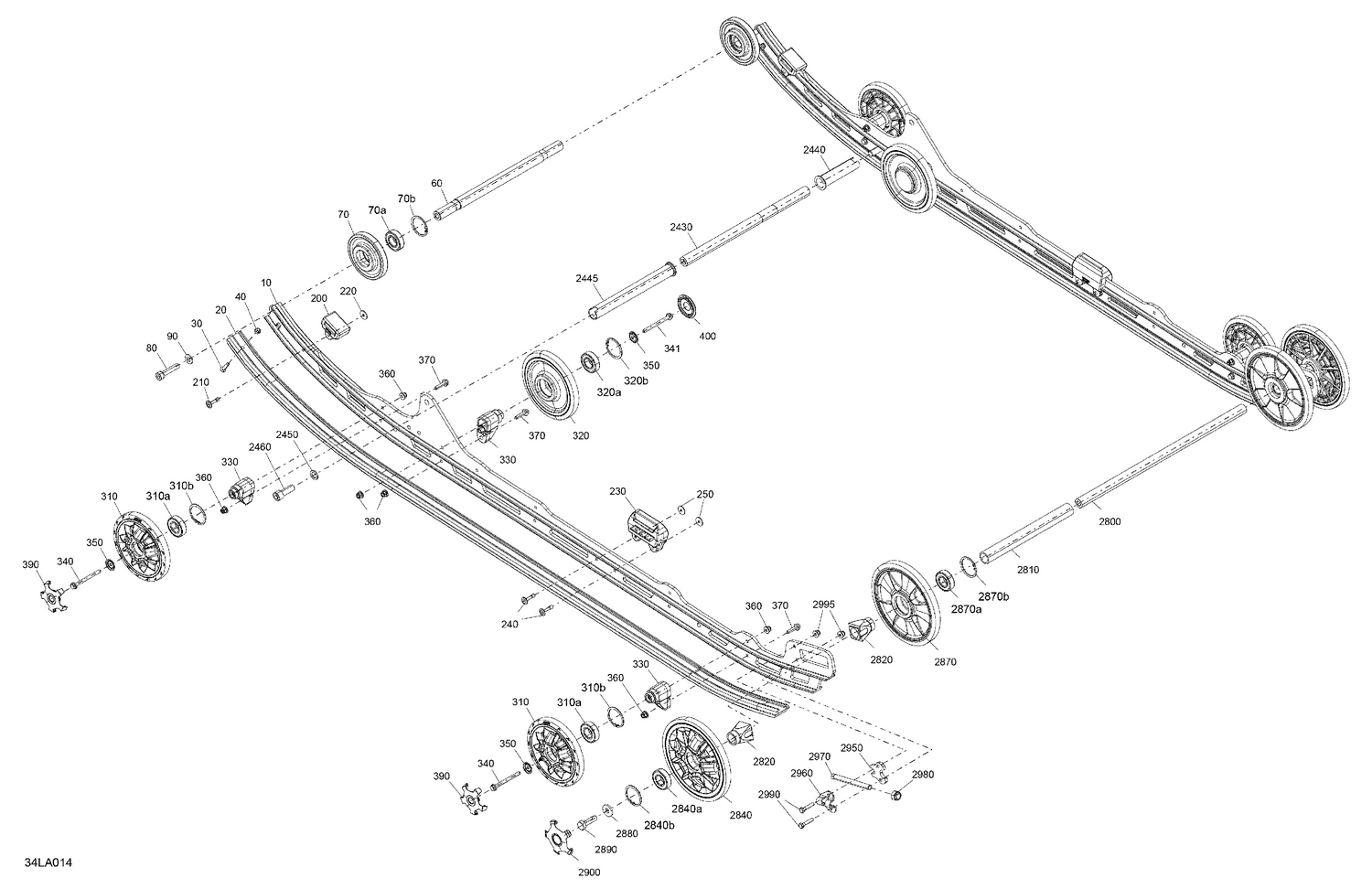

05- Suspension - Rear - Lower Section
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503195960 | Runner |
| 20 | 503195983 | Slider Shoe |
| 30 | 208562531 | Phillips Screw M6 X 25 |
| 40 | 232561434 | Elastic Stop Nut M6 |
| 60 | 503194790 | Front Wheel Shaft |
| 70a | 503190396 | Ball Bearing |
| 70b | 415129371 | Retaining Ring |
| 80 | 205504544 | Socket Screw |
| 90 | 234001410 | Flat Washer 10 mm |
| 200 | 503193504 | Rubber Stopper |
| 210 | 293150224 | Rivet Pop 3/16 |
| 220 | 503191273 | Washer |
| 230 | 503195028 | Rubber Stopper |
| 240 | 293150224 | Rivet Pop 3/16 |
| 250 | 503191273 | Washer |
| 310a | 503190396 | Ball Bearing |
| 310b | 415129371 | Retaining Ring |
| 320a | 503190396 | Ball Bearing |
| 320b | 415129371 | Retaining Ring |
| 330 | 503193894 | Casted Support |
| 340 | 207667056 | Hex. Flange Screw M6 x 70 |
| 341 | 207667056 | Hex. Flange Screw M6 x 70 |
| 350 | 503191820 | Wheel Cup M6 |
| 360 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 370 | 207662556 | Hex. Flange Screw M6 X 25 |
| 390 | 503195345 | Black, Wheel Cap |
| 400 | 503192771 | Black, Wheel Cap |
| 2430 | 503195279 | Center Shock Shaft |
| 2440 | 503195044 | Spacer |
| 2445 | 503195045 | Spacer |
| 2450 | 503189276 | Washer |
| 2460 | 205523554 | Socket Head Screw M12 X 35 |
| 2800 | 503195870 | Rear Shaft |
| 2810 | 503195871 | Spacer |
| 2820 | 503190428 | Rear Wheel Spacer |
| 2840a | 503190396 | Ball Bearing |
| 2840b | 415129371 | Retaining Ring |
| 2870a | 503190396 | Ball Bearing |
| 2870b | 415129371 | Retaining Ring |
| 2880 | 503190439 | Washer |
| 2890 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 2900 | 503195348 | Black, Wheel Cap |
| 2950 | 503193250 | Spacer |
| 2960 | 503192583 | Tensioner |
| 2970 | 230100054 | Hex Screw M10 x 100 |
| 2980 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 2990 | 207063044 | Hex. Screw M6 X 30 |
