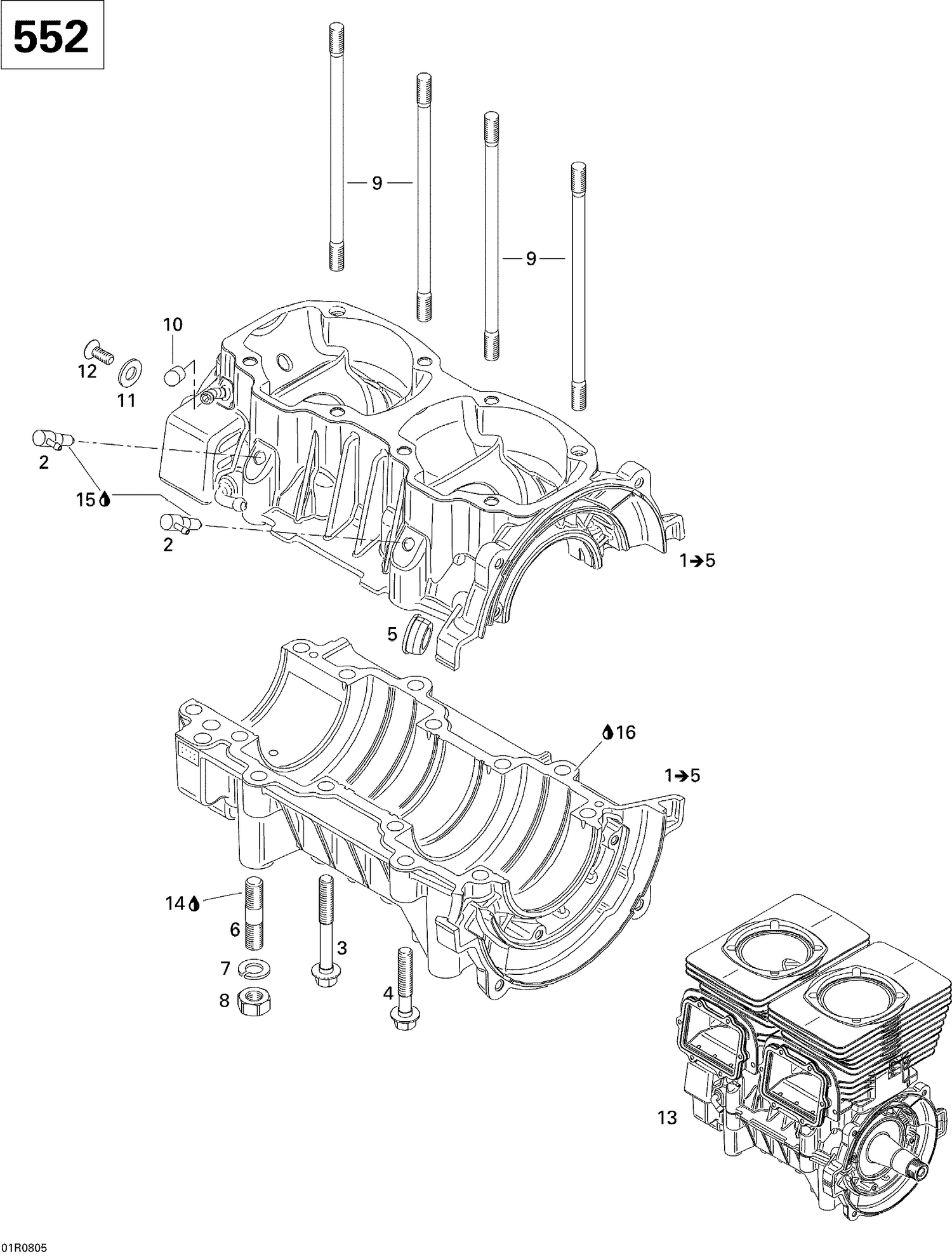

| Ref | Part Number | Description |
|---|
| 2 |
420956511 |
Check Valve This part replaces 420956510. |
| 3 |
420640959 |
Collar Hex Screw M8 X 68.5 This part replaces 420640951. |
| 4 |
420640433 |
Collar Hex Screw M8 X 45 This part replaces 420640431. |
| 5 |
420860962 |
Cable Grommet |
| 6 |
420641834 |
STUD M10 X 29 - Call your local BRP dealership |
| 7 |
Not |
Available As Spare Part - Lock Washer |
| 8 |
Not |
Available As Spare Part - Hex. Nut M10 |
| 9 |
420840556 |
Stud M8 X 173.5 |
| 10 |
420960772 |
CAP - Call your local BRP dealership |
| 11 |
420250315 |
Flat Washer 8.4 mm This part replaces 420250311. |
| 12 |
420640897 |
Taptite Flat Head Screw M5 x 12 This part replaces 420640896. |
| 13 |
420055206 |
Short Block 552 |
| 13 |
421000638 |
REBUILD-CYLINDER-SHORT BLOCK 552 - Call your local BRP dealership |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
