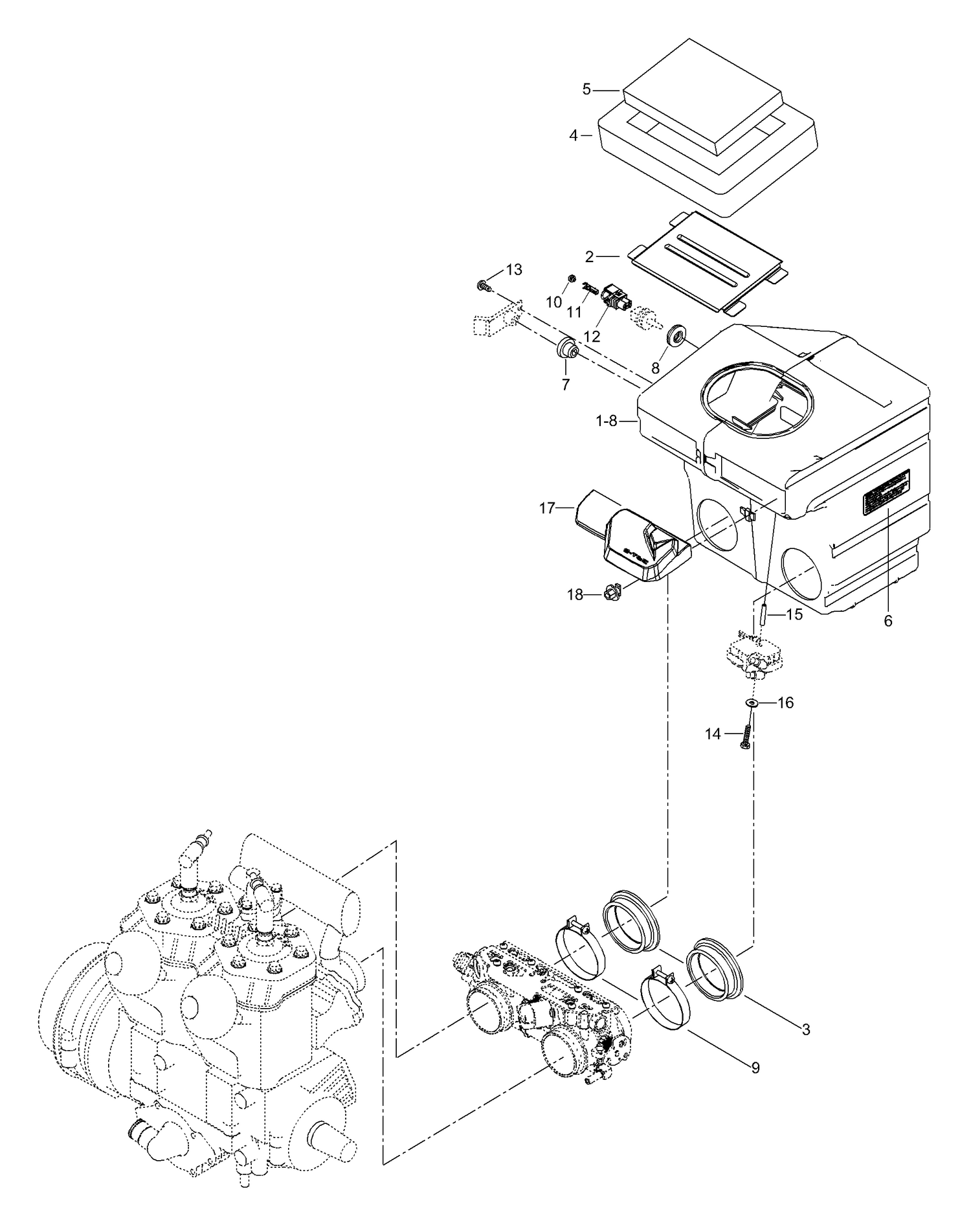

01- Air Silencer
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000004 | INTAKE GRILL - Call your local BRP dealership |
| 3 | 508000092 | Intake adaptor |
| 4 | 508000099 | Lower foam |
| 5 | 508000154 | Air filter |
| 6 | 516001191 | Caution Label, Air Intake |
| 7 | 513032908 | Grommet |
| 8 | 570065500 | GROMMET - Call your local BRP dealership |
| 9 | 508000346 | Gemi Clamp This part replaces 508000162. |
| 10 | 278000999 | Seal |
| 11 | 278000998 | Female terminal |
| 12 | 515175588 | FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership |
| 13 | 414745900 | Screw |
| 14 | 40193 | Screw M6x50 |
| 15 | 512059812 | SPACER - Call your local BRP dealership |
| 16 | 234161471 | Spring washer |
| 17 | 512059666 | Cover |
