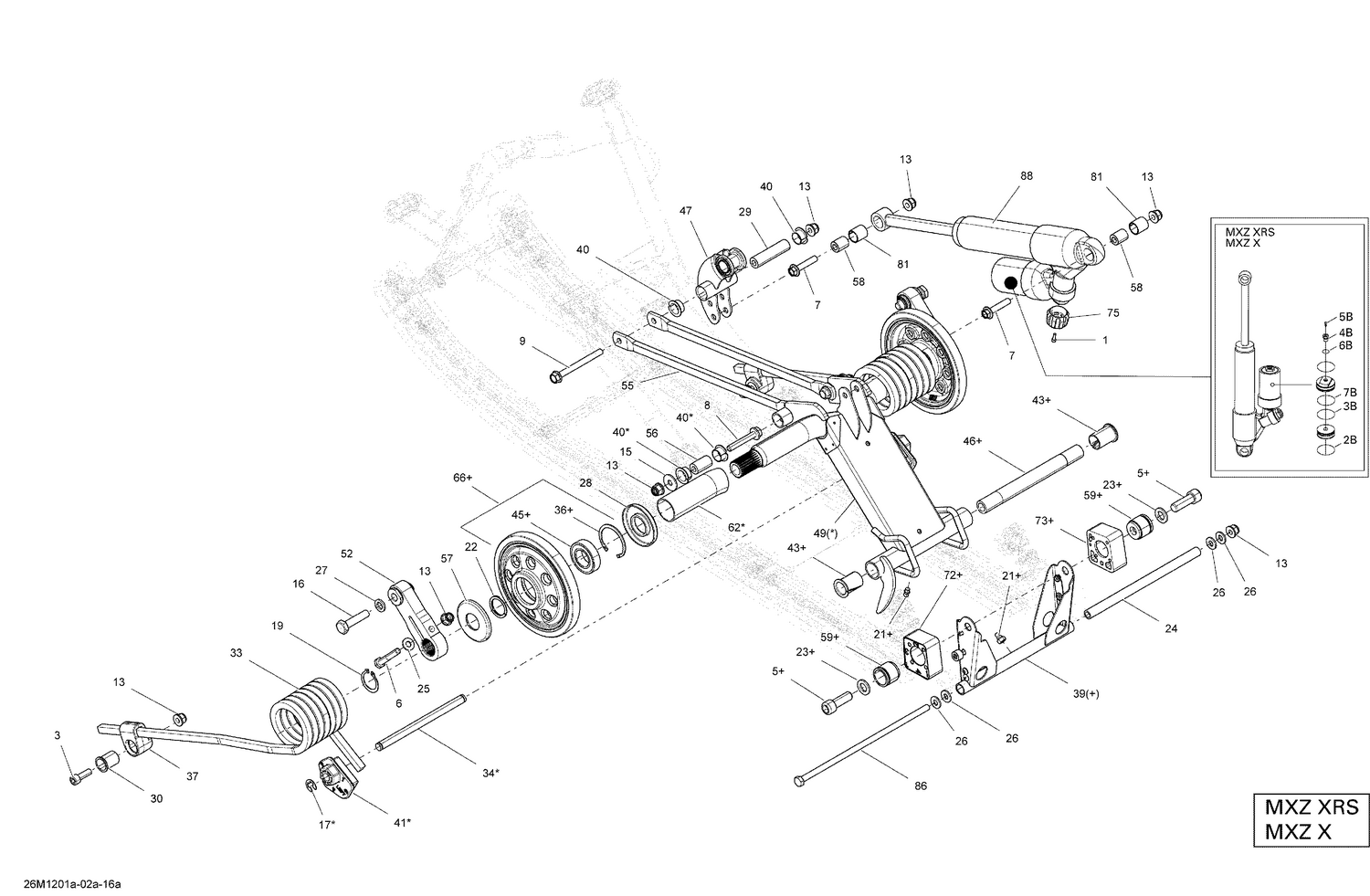

08- Rear Suspension Rear Arm Fixe
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 250000644 | Allen Screw M3 X 0.5 X 10 This part replaces 205031060. |
| 2B | 415093807 | O-Ring |
| 3 | 205082554 | Socket Screw M8 X 25 |
| 3B | 415093806 | Piston Ring |
| 4B | 505070398 | Air Valve |
| 5 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 5B | 505070399 | Screw |
| 6 | 207085044 | Hex. Screw M8 X 50 |
| 6B | 505070400 | O-Ring |
| 7 | 207684044 | Hex. Flange Screw M8 X 40 |
| 8 | 207685044 | Hex. Flange Screw M8 X 50 |
| 9 | 207688544 | Hex. Flange Screw |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 |
| 15 | 234082410 | Flat Washer 8 mm |
| 16 | 207204056 | Cap Screw Hex. M10 X 40 |
| 19 | 293370080 | Retaining Ring |
| 21 | 408200700 | Grease Fitting |
| 22 | 503189146 | Axle Spring |
| 23 | 517225900 | Flat Washer |
| 24 | 503189156 | Pivot Arm Axle |
| 25 | 503189157 | Washer |
| 26 | 503192494 | Washer |
| 27 | 503192496 | Washer |
| 28 | 503190434 | Labyrinth Seal |
| 29 | 503190643 | Axle Bar (Long) |
| 30 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 33 | 503193158 | Black, LH Spring Square |
| 33 | 503193159 | Black, RH Spring Square |
| 36 | 415129371 | Retaining Ring |
| 37 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 39 | 503192823 | Pivot Arm Ass'y |
| 40 | 503191555 | Swivel Bushing |
| 43 | 503191640 | Cushion |
| 45 | 503193548 | Ball Bearing This part replaces 503191982. |
| 46 | 503192330 | Lower Shaft |
| 47 | 503192531 | Rocker |
| 49 | 503193617 | Rear Arm Ass'y This part replaces 503193074. |
| 52 | 503195985 | Link Ass'y This part replaces 503193072. |
| 55 | 503193010 | ROD_LINK - Call your local BRP dealership This part replaces 503192554. |
| 56 | 503192555 | Axle Bar |
| 57 | 503192592 | Labyrinth Ring |
| 58 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 59 | 503192749 | Guide Block |
| 62 | 503192767 | Bushing |
| 66 | 503192808 | Black Wheel Ass'y 155 mm |
| 72 | 503192918 | LH Cam Block |
| 73 | 503192919 | RH Cam Block |
| 75 | 503193033 | Shock Adjuster Knob |
| 81 | 505072663 | Leg Cushion |
| 86 | 503192440 | Bolt M8 X 248mm |
| 88 | 503194368 | Rear Shock This part replaces 503192456. |
