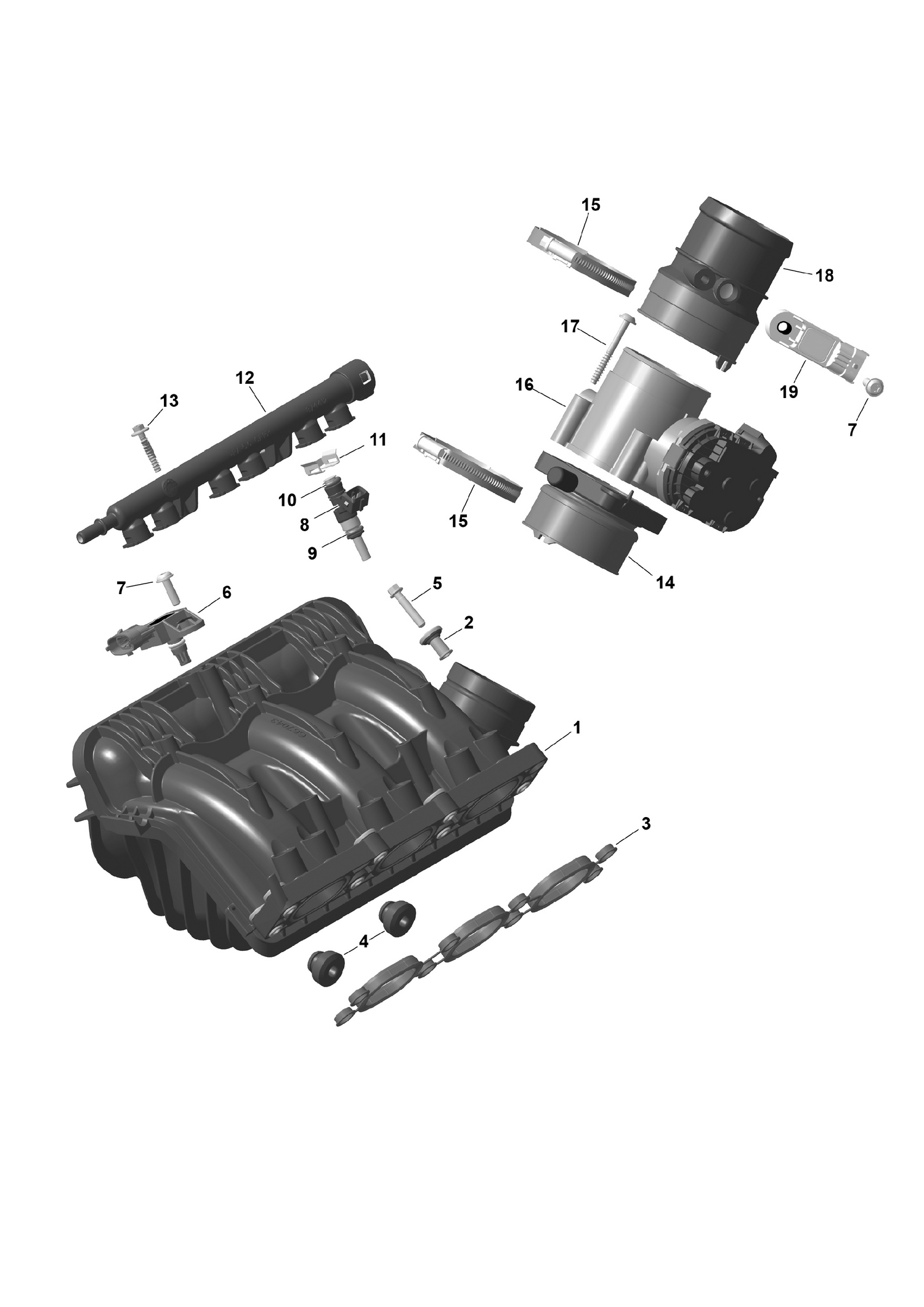

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420667043 | Air Intake Manifold Ass'y |
| 2 | 420629175 | Distance Sleeve |
| 3 | 420450512 | Gasket |
| 4 | 420860150 | Rubber Grommet |
| 5 | 420440647 | Torx Flange Screw M6 X 30 |
| 6 | 420874653 | Pressure / Temperature Sensor |
| 7 | 420841103 | Torx Flange Screw M6 X 20 |
| 9 | 420831050 | O-Ring |
| 10 | 420430775 | O-Ring |
| 11 | 420853030 | Injector Clip |
| 12 | 420874412 | Fuel Rail |
| 13 | 420441575 | Torx Screw 6X30 |
| 14 | 420460422 | Connecting Socket Ass'y |
| 15 | 420251833 | Hose Clamp 60-80 |
| 16 | 420892596 | Throttle Body Socket Ass'y |
| 17 | 420441588 | Torx Flange Screw M6 X 50 |
| 18 | 420460423 | Connecting Socket Ass'y |
