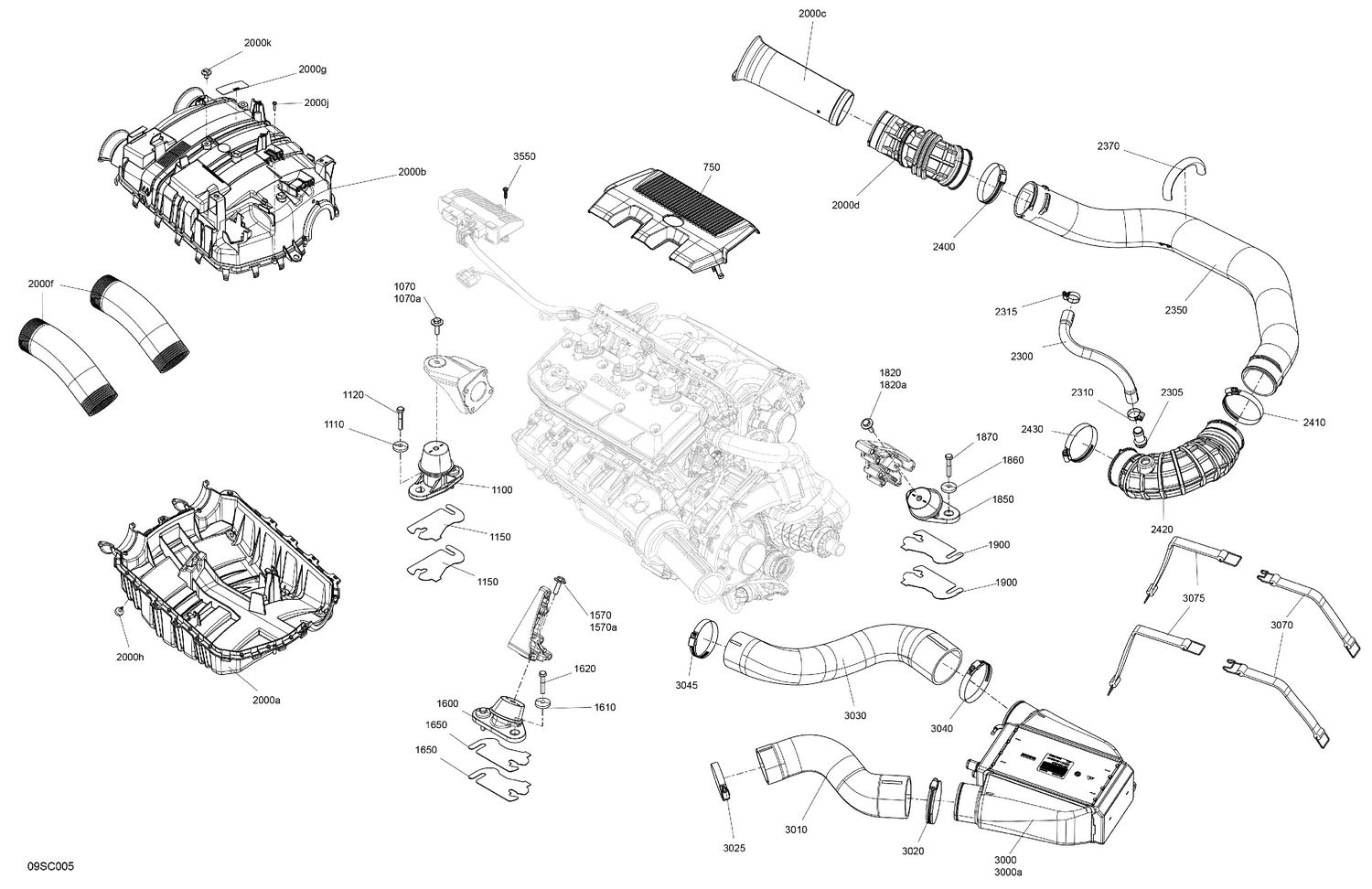

02- Engine - System
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 750 | 270001060 | Engine Cover |
| 1070a | 250000888 | Hexagonal Screw M8 X 30 |
| 1100 | 270001096 | Engine Support Ass'y |
| 1110 | 250200018 | Cone Washer |
| 1120 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 1150 | 270000762 | Shim 1.3 mm |
| 1570a | 250000888 | Hexagonal Screw M8 X 30 |
| 1600 | 270001081 | Engine Support Ass'y |
| 1610 | 250200018 | Cone Washer |
| 1620 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 1650 | 270000762 | Shim 1.3 mm |
| 1820a | 250000888 | Hexagonal Screw M8 X 30 |
| 1850 | 270001081 | Engine Support Ass'y |
| 1860 | 250200018 | Cone Washer |
| 1870 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 1900 | 270000762 | Shim 1.3 mm |
| 2000a | 273000342 | Airbox Base |
| 2000b | 273000394 | Intake Silencer Cover |
| 2000c | 273000359 | Intake Hose |
| 2000d | 273000375 | Hose Connector |
| 2000f | 273000290 | Air Silencer Hose |
| 2000g | 219903177 | Air Silencer Notice Decal |
| 2000h | 708000759 | Rubber Stopper |
| 2000j | 250000287 | Flange Torx Screw K40 X 16 |
| 2000k | 710008294 | Mount Dart |
| 2300 | 270000950 | Formed Hose |
| 2305 | 273000234 | Breather Valve |
| 2310 | 293650051 | Tridon Gear Clamp |
| 2315 | 293650051 | Tridon Gear Clamp |
| 2350 | 273000376 | Central Intake Duct |
| 2370 | 219704393 | Polyurethane Hose 1000Mm Long |
| 2400 | 293650179 | Tridon Clamp |
| 2410 | 293650179 | Tridon Clamp |
| 2420 | 273000417 | Molded Hose |
| 2430 | 293650179 | Tridon Clamp |
| 3000a | 271001942 | Anode Zinc |
| 3010 | 273000418 | Formed Hose |
| 3020 | 293650244 | Tridon Gear Clamp |
| 3025 | 293650179 | Tridon Clamp |
| 3030 | 273000419 | Oultet Hose |
| 3040 | 293650244 | Tridon Gear Clamp |
| 3045 | 293650179 | Tridon Clamp |
| 3070 | 293850094 | Fuel Tank Strap |
| 3075 | 293850093 | Fuel Tank Strap |
